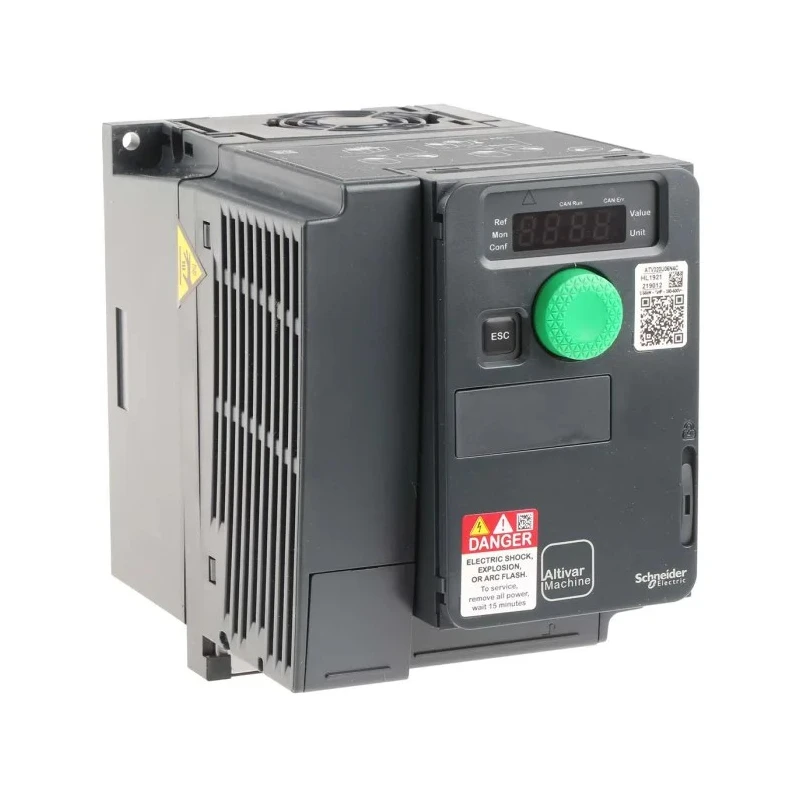

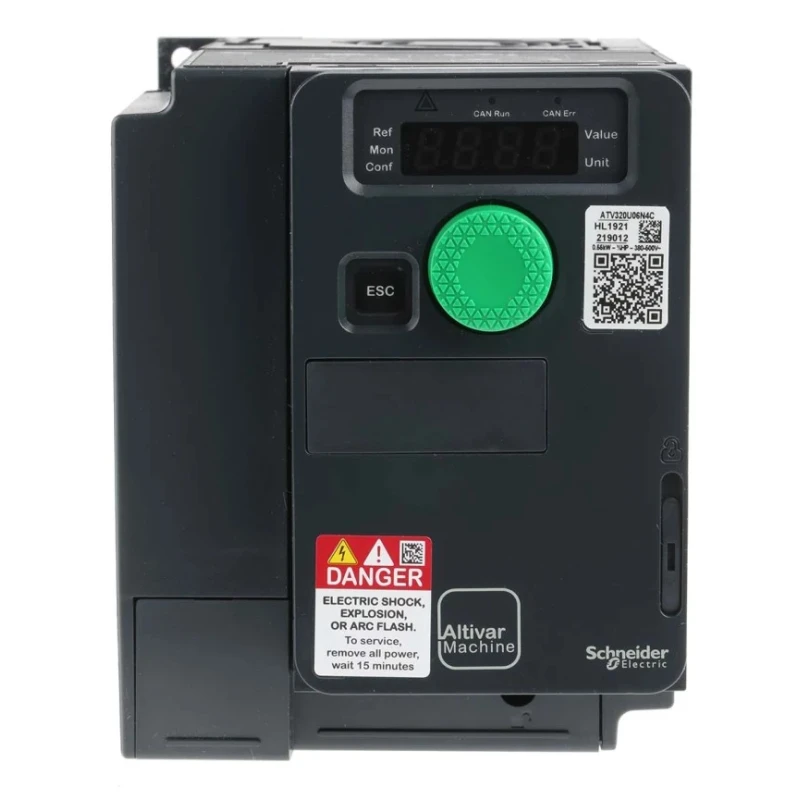

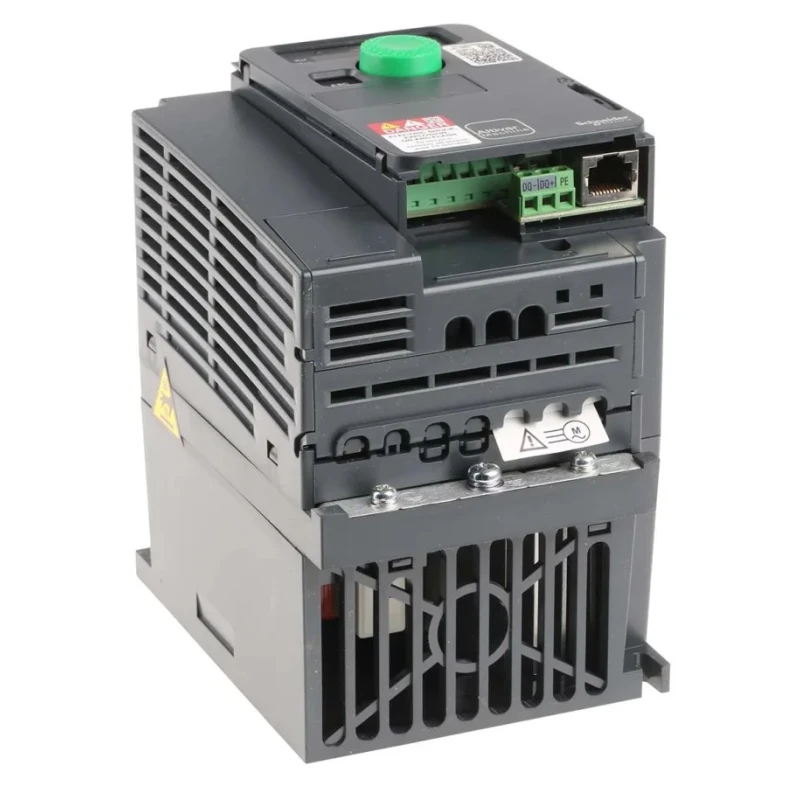

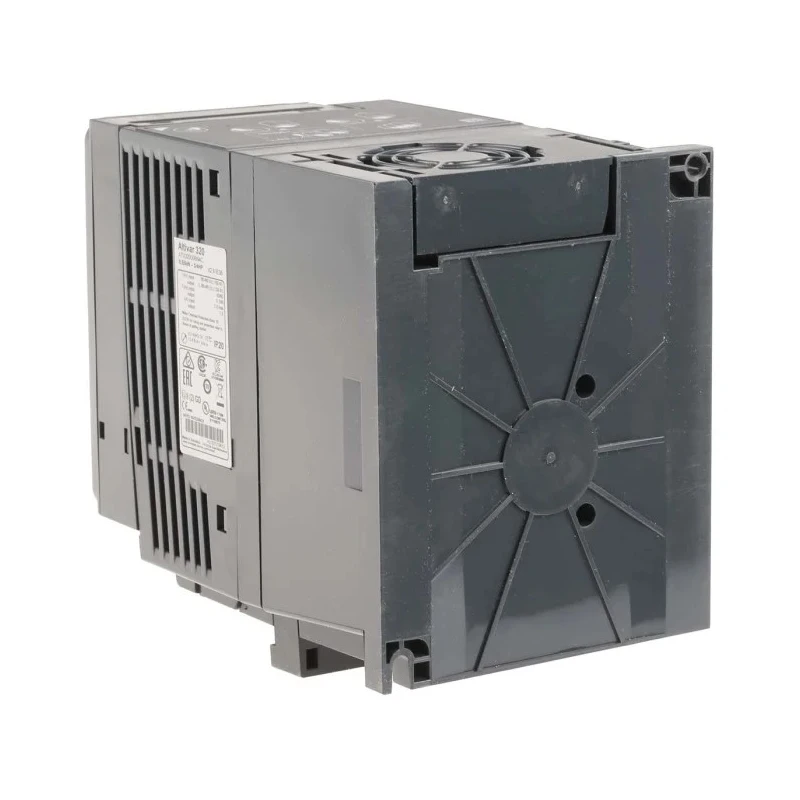

Schneider Electric Variable Speed Drive 550W 3 Phase, 380-500V, 1.9A, ATV320 Series, DIN Rail, IP20, Model ATV320U06N4C

Schneider Electric ATV320U06N4C Variable Speed Drive delivers reliable, energy-efficient motor speed control for a range of industrial applications. Purpose-built for use with both synchronous and asynchronous motors, this drive delivers 550W of power at maximum output current of 1.9A, and is compatible with 3 phase systems operating on 380V to 500V supply.

This variable frequency drive supports a wide output frequency range from 0.1Hz to 599Hz, making it well-suited for sophisticated tasks such as conveyor systems, packaging machines, HVAC, and food processing machinery. Its compact DIN rail mount design - measuring 105mm in length, 158mm in width, and 142mm in depth - integrates easily into modern control panels.

550W power rating for efficient small motor operation. Designed for industrial 3 phase networks with supply voltages between 380V and 500V. Output current up to 1.9A enables a wide range of load conditions. Extensive frequency control (0.1 - 599Hz) allows for precise motor tuning.

IP20 protection class, suitable for electrical cabinet mounting. Sturdy design with coated circuit boards improves reliability under harsh conditions. Overcurrent, overheat, and short-circuit protection ensure dependable operation.

Integrated support for CANopen and Modbus enables easy system integration and remote operation. Easy-to-use front panel display and diagnostic functions reduce setup and maintenance time. CE, CSA, cUL, RCM, and EAC standards compliance for global project use.

With its rugged construction, intelligent diagnostic tools, and high degree of flexibility, the ATV320U06N4C optimizes both performance and energy consumption in diverse factory and building automation projects. Typical industrial use cases include original equipment manufacturing, conveyor and packaging machinery, HVAC systems, and food processing equipment.

This drive is engineered to save energy while providing robust protection for your installations, making it an ideal choice for modern factories and commercial facilities. Set up is straightforward, and the combination of performance and safety features ensures consistent, efficient results.

Set contains: 1 Variable Speed Drive, model ATV320U06N4C. Explore more Schneider Electric VFDs and industrial automation products on EnvMart.
