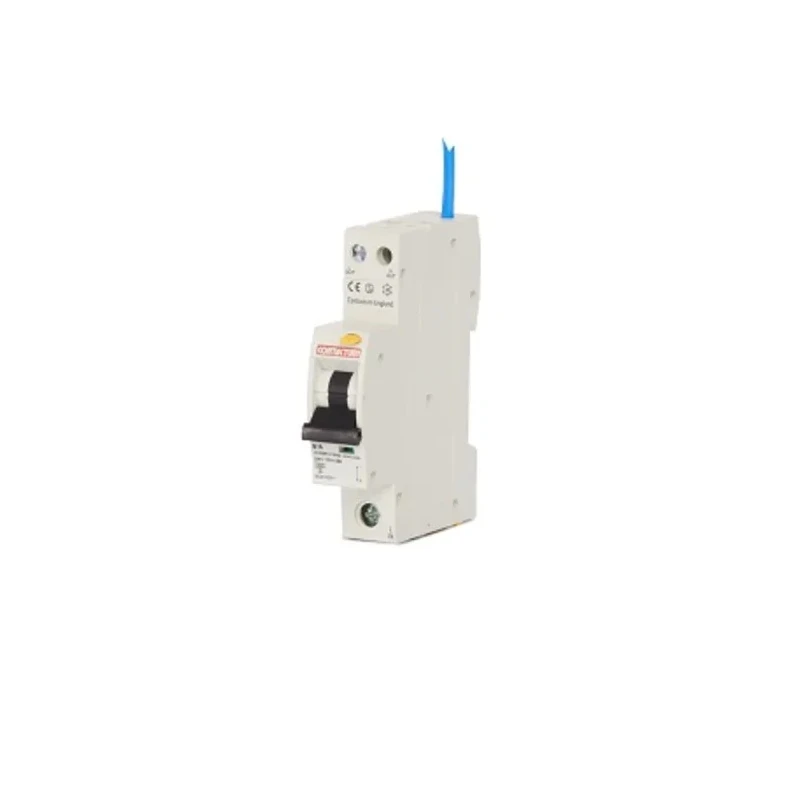

Contactum Residual Current Circuit Breaker with Overload Protection, 16A, 1 Pole, 30mA Trip Sensitivity, Type B CCPBR1016AB
Specifications
| Country of Origin | China |
|---|---|
| Frequency | 50-60Hz |
| Range | CCPBR |
| Brand | Contactum |
| Colour | White |
| Height | 90mm |
| Model | CCPBR1016AB |
| Depth | 75mm |
| Width | 19mm |
| Mount Type | DIN Rail |
| Current Rating | 16A |
| Series | Compact |
| Ambient Operating Temperature | -5 to 40°C (24hour average not exceeding 25°C) |
| Terminal type | Screw |
| Rated Voltage | 220-250V |
| Breaking Capacity | 10kA |
| Wiring System | 1 pole |
| Mounting Method | DIN Rail |
| Number of Poles | 1 |
| Standards/Approvals | RoHS, CE, IEC |
| Rated AC Voltage | 230V ac |
| Tripping Characteristics | Type B |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Lever |
| Trip Sensitivity | 30mA |
| Earth Leakage Protection Type | Type A |
| ABC indicator | A |
| Associated standards | BS EN 61009 |
| Rated kA | 10 |
| Width in number of modular spacing's | 1 |
| Nature of supply | AC |
| Release characteristic | B |
| Min. switch contact gap | 4mm |
| Contactum RCBO, 16A Current Rating, 1P Poles, 30mA Trip Sensitivity, Type BBrand | Contactum |
Key Features
- Ensures safety by disconnecting circuits in case of earth leakage or overload.
- Features a 16A current rating suitable for general-purpose installations.
- Offers a compact design for easy DIN rail mounting.
- Provides a single pole configuration for straightforward circuit isolation.
- 30mA trip sensitivity for effective earth leakage protection.
- Type B tripping characteristic suitable for a wide range of applications.
- Equipped with thermal magnetic tripping mechanism for enhanced reliability.
- Lever actuator allows simple and clear reset operations.
Product Description
Contactum CCPBR1016AB Residual Current Circuit Breaker with Overload Protection is engineered for safeguarding electrical installations in industrial, commercial, and residential settings. Featuring a 16A current rating, the unit enables effective circuit isolation, protecting against earth leakage faults and overload conditions. The RCBO combines both residual current and overcurrent protection in a compact, modular design.
Ensures safety by disconnecting circuits in case of earth leakage or overload. Features a 16A current rating suitable for general-purpose installations. Offers a compact design for easy DIN rail mounting. Provides a single pole configuration for straightforward circuit isolation.
30mA trip sensitivity for effective earth leakage protection. Type B tripping characteristic suitable for a wide range of applications. Equipped with thermal magnetic tripping mechanism for enhanced reliability. Lever actuator allows simple and clear reset operations.
Breaking capacity of 10kA ensures robust fault handling abilities. Compliant with IEC, RoHS, CE safety standards and BS EN 61009.
Its DIN rail mount design streamlines installation for electricians and building maintenance professionals, allowing quick addition to distribution boards and panel systems. The single pole configuration is ideal for line circuit protection, letting users rapidly isolate faults.
Earth leakage protection (Type A, 30mA sensitivity) is suitable for both residential and commercial loads, enhancing safety where personnel, equipment, and building infrastructure are exposed. Breaking capacity of 10kA ensures the device can withstand high fault levels.
The CCPBR1016AB is suitable for use in general-purpose circuits, lighting and socket protection, manufacturing, office buildings, and infrastructure projects. The thermal magnetic mechanism assures consistent tripping characteristics, while lever resetting ensures ease of maintenance.
Compliant with IEC, RoHS, and CE standards, this RCBO meets international safety and quality requirements. Its compact dimensions (90mm height × 75mm depth × 19mm width) make it suitable for modern electrical panel layouts.
Browse more RCBOs and circuit protection solutions from Contactum and explore EnvMart’s comprehensive range of industrial and commercial circuit breakers for customized electrical safety projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The circuit breaker has a current rating of 16A, making it suitable for general-purpose installations.
It features a trip sensitivity of 30mA, which provides effective earth leakage protection.
The dimensions are 90mm in height, 75mm in depth, and 19mm in width, allowing for compact installation in electrical panels.
This model uses a DIN rail mounting method, facilitating easy installation in distribution boards.
The breaking capacity is 10kA, ensuring robust fault handling capabilities.
It operates within an ambient temperature range of -5 to 40°C, with a 24-hour average not exceeding 25°C.
The circuit breaker is equipped with a thermal magnetic tripping mechanism, which enhances reliability.
It is compliant with RoHS, CE, and IEC standards, ensuring it meets international safety and quality requirements.
This unit has a single pole configuration, which is ideal for straightforward circuit isolation.
It is designed for AC supply, specifically rated for 230V AC.
The tripping characteristic is Type B, suitable for a wide range of applications.
The circuit breaker uses screw terminals for secure connections.
