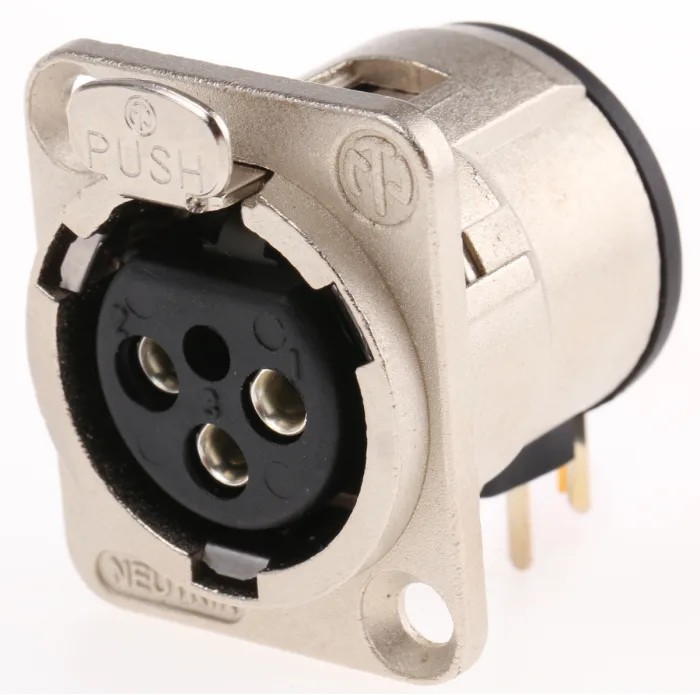

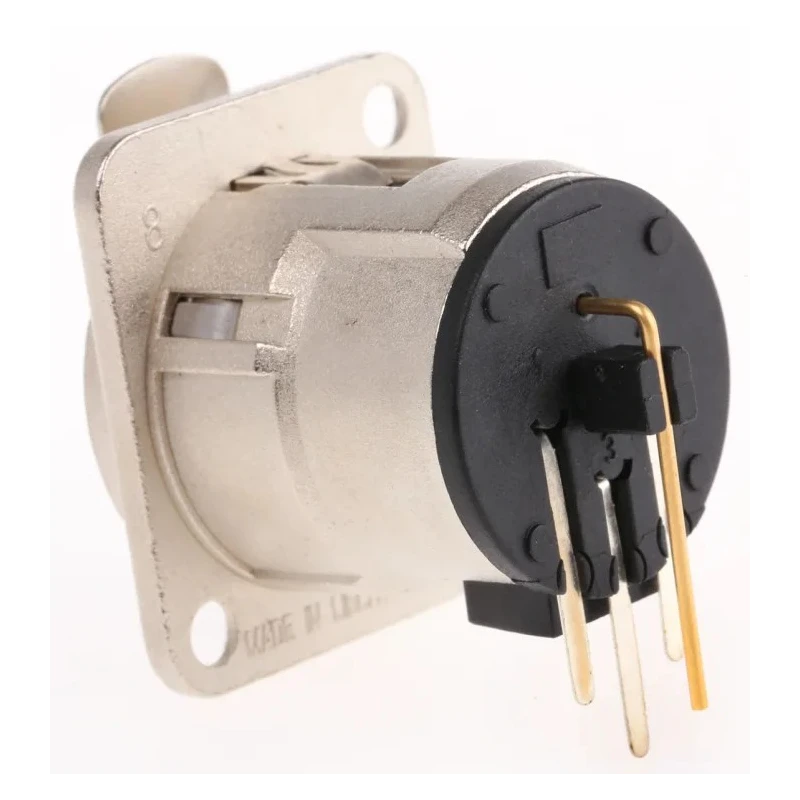

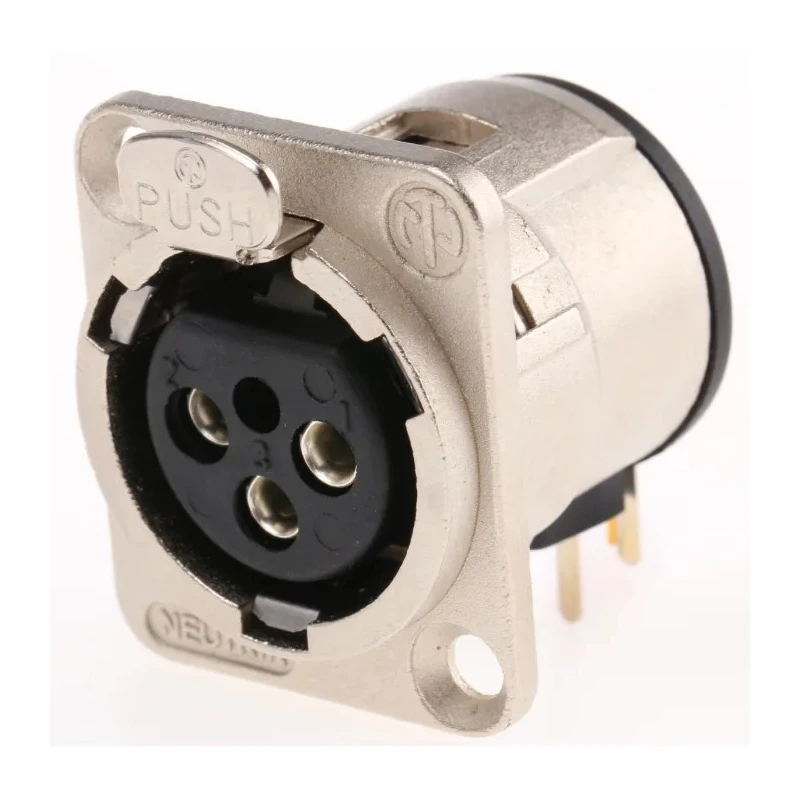

Neutrik PCB XLR Connector Right Angle Female 3 Contacts 50V Silver over Nickel Plating NC3FD-H

Free Delivery in India | Lowest Global Shipping Charges

Neutrik PCB XLR Connector Right Angle Female 3 Contacts 50V Silver over Nickel Plating NC3FD-H

Name: Neutrik PCB XLR Connector Right Angle Female 3 Contacts 50V Silver over Nickel Plating NC3FD-H
Brand: Neutrik
SKU: 137856
Price: 9.85 USD
Availability: InStock



Category XLR Connector Brand Neutrik Condition New

Specifications

Country of Origin	India
Voltage	50V
Brand	Neutrik
Colour	Natural
Orientation	Right Angle
Current	6A
Model	NC3FD-H
Mount Type	PCB
Housing Material	Polyamide
Contact Material	Bronze
Termination Type	Solder
Maximum Operating Temperature	80°C
Minimum Operating Temperature	-30°C
Contact Plating	Silver over Nickel
Number of Contacts	3
Contact Gender	Female
Connector Gender	Female

Key Features

Designed for PCB mounting with a right angle orientation for compact layouts.
Features 3 female contacts carrying up to 6A current safely.
Contact plating of silver over nickel improves corrosion resistance and electrical performance.
Housing constructed from robust polyamide material ensuring long-term reliability.
Supports operating temperatures from -30°C to 80°C for versatile applications.
Termination through soldering ensures secure and stable connections.
Contact material bronze provides resilience and electrical conductivity.
Compatible with ‘AXR/XLR’ D series chassis connectors for convenient panel integration.

Product Description

Neutrik NC3FD-H PCB XLR Connector is a high-quality right angle female connector designed for printed circuit board (PCB) mounting in various electronic and industrial applications. Rated at 50V and carrying 6A current, this connector features 3 contacts with silver over nickel plating to ensure superior electrical conductivity and protection against corrosion.

The connector's housing is molded from durable polyamide, offering mechanical strength and resilience in demanding environments. It supports a wide temperature range from -30°C to 80°C making it suitable for industrial, laboratory, and commercial electronics roles.

This model’s right angle orientation optimizes PCB space usage and is ideal for compact electronic assemblies. The termination is solder type providing robust electrical connections. Contacts are made from bronze material, assuring conductivity and mechanical robustness.

Unique to the D Series XLR PCB mount connectors, the removable insert design allows convenient assembly, testing, and servicing of PCBs without removal of connector housings from the panel. The insert is securely locked with a 45° internal latch that requires a standard small flat blade screwdriver for access.

The connector is not suitable for mains power applications and is commonly used in audio, data, and signal transmission equipment within industrial, HVAC, manufacturing, and electronic instrumentation environments.

Designed for PCB mounting with right angle orientation. Carry current up to 6A safely with 3 female contacts. Silver over nickel plated contacts for corrosion resistance. Polyamide housing provides mechanical durability.

Operational temperature from -30°C to 80°C. Solder termination for reliable electrical connection. Bronze contact material for long-lasting performance. Removable insert secured by 45° internal latch for ease of maintenance.
