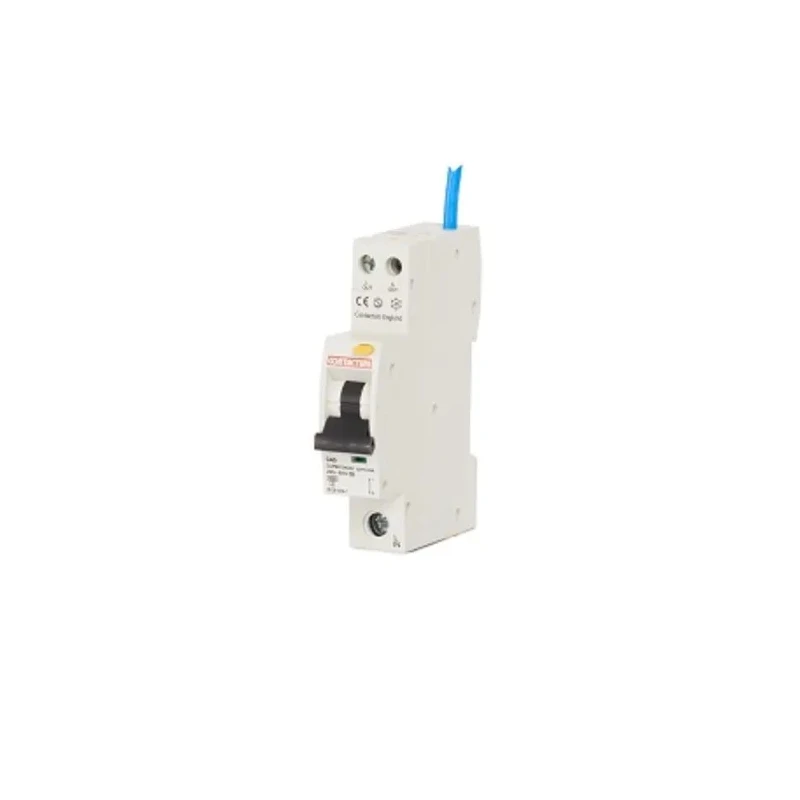

Contactum Residual Current Circuit Breaker with Overload Protection, 40A, 1-Pole, 30mA Trip Sensitivity, DIN Rail CCPBR1040AC
Specifications
| Country of Origin | China |
|---|---|
| Frequency | 50-60Hz |
| Range | CCPBR |
| Brand | Contactum |
| Colour | White |
| Height | 90mm |
| Model | CCPBR1040AC |
| Depth | 75mm |
| Width | 19mm |
| Mount Type | DIN Rail |
| Current Rating | 40A |
| Series | Compact |
| Ambient Operating Temperature | -5 to 40°C (24hour average not exceeding 25°C) |
| Terminal type | Screw |
| Rated Voltage | 220-250V |
| Breaking Capacity | 10kA |
| Wiring System | 1 pole |
| Mounting Method | DIN Rail |
| Number of Poles | 1 |
| Standards/Approvals | CE, IEC, RoHS |
| Rated AC Voltage | 230V ac |
| Tripping Characteristics | Type C |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Lever |
| Trip Sensitivity | 30mA |
| Earth Leakage Protection Type | Type A |
| ABC indicator | A |
| Associated standards | BS EN 61009 |
| Rated kA | 10 |
| Width in number of modular spacing's | 1 |
| Nature of supply | AC |
| Release characteristic | C |
| Min. switch contact gap | 4mm |
| Contactum RCBO, 40A Current Rating, 1P Poles, 30mA Trip Sensitivity, Type CBrand | Contactum |
Key Features
- Designed for industrial and commercial electrical distribution.
- Provides both overload and earth leakage protection for enhanced safety.
- Type C tripping characteristic suitable for general purpose applications.
- Mounts securely on DIN rail systems for easy installation.
- Rated breaking capacity of up to 10kA ensures reliable fault protection.
- Operates at a rated voltage of 230V AC and frequency of 50-60Hz.
- Compact form factor with 90mm height, 75mm depth, and 19mm width.
- Conforms to CE, IEC, RoHS and BS EN 61009 standards.
Product Description
Contactum CCPBR1040AC Residual Current Circuit Breaker with Overload Protection is engineered for dependable protection in industrial, laboratory, and commercial electrical installations. This RCBO combines overload and earth leakage protection, making it ideal for power distribution panels requiring enhanced safety and compliance.
Designed for use in electrical distribution boards, providing reliable protection from current overload and earth faults. Features a single-pole configuration rated at 40A, making it suitable for a wide range of circuits in commercial and industrial environments.
The 30mA trip sensitivity ensures quick response to residual currents, minimizing electrical hazards. DIN rail mounting facilitates easy integration with standard panel systems. Equipped with a thermal magnetic tripping mechanism for accurate fault detection and safe operation.
Reset actuator lever enhances usability and maintenance access. Complies with international standards including CE, IEC, RoHS, and BS EN 61009 for assured performance and safety.
With a rated breaking capacity of 10kA, this RCBO delivers robust fault protection, suitable for demanding industrial applications. The compact Compact Series design (90mm height, 75mm depth, 19mm width) allows installation in tight spaces.
Operational range covers ambient temperatures from -5 to 40°C, supporting reliable performance even in varying environmental conditions. The screw terminal type ensures secure electrical connections.
Built for general purpose electrical protection, the Contactum CCPBR1040AC is ideal for machinery, HVAC systems, manufacturing lines, and laboratory environments where compliance and safety are paramount.
Browse more Residual Current Circuit Breakers and Contactum products in the Circuit Breakers & Fuse category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a rated current of 40A, making it suitable for various circuits in industrial and commercial environments.
The trip sensitivity for this unit is 30mA, which ensures a quick response to residual currents to minimize electrical hazards.
It has a rated breaking capacity of 10kA, providing reliable fault protection in demanding applications.
This circuit breaker is designed for DIN rail mounting, facilitating easy installation in standard panel systems.
The dimensions are 90mm in height, 75mm in depth, and 19mm in width, allowing for compact installation in tight spaces.
It operates effectively in ambient temperatures ranging from -5 to 40°C, supporting reliable performance in various environments.
It features a thermal magnetic tripping mechanism, which provides accurate fault detection and safe operation.
This unit complies with CE, IEC, RoHS, and BS EN 61009 standards, ensuring performance and safety in electrical installations.
It supports a 1 pole wiring system, making it suitable for single-phase applications.
The reset actuator type is a lever, enhancing usability and maintenance access for users.
The nature of supply for this circuit breaker is AC, designed for alternating current applications.
It is suitable for use in machinery, HVAC systems, manufacturing lines, and laboratory environments where compliance and safety are critical.
