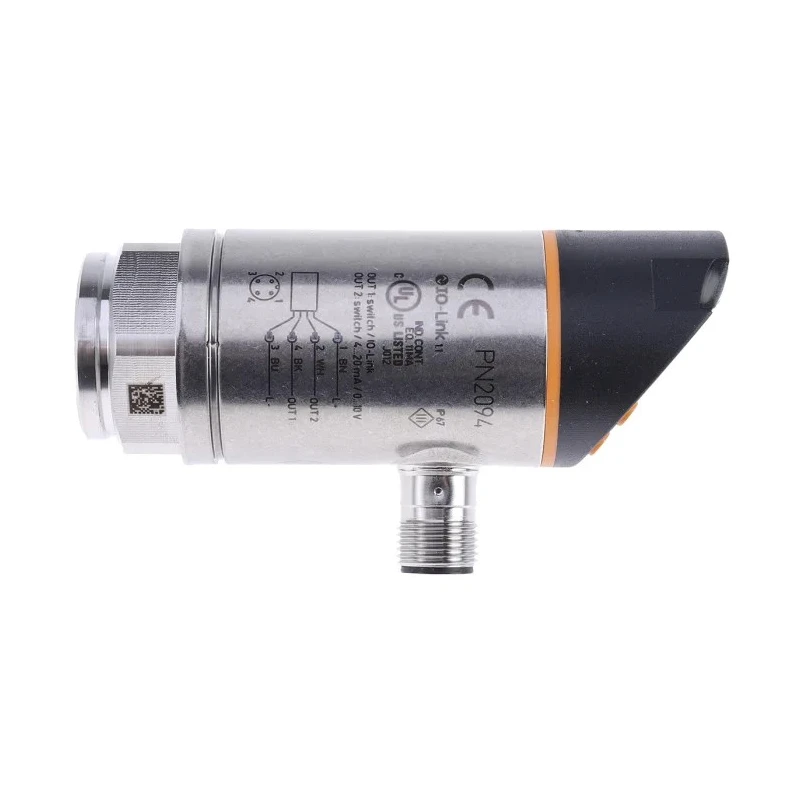

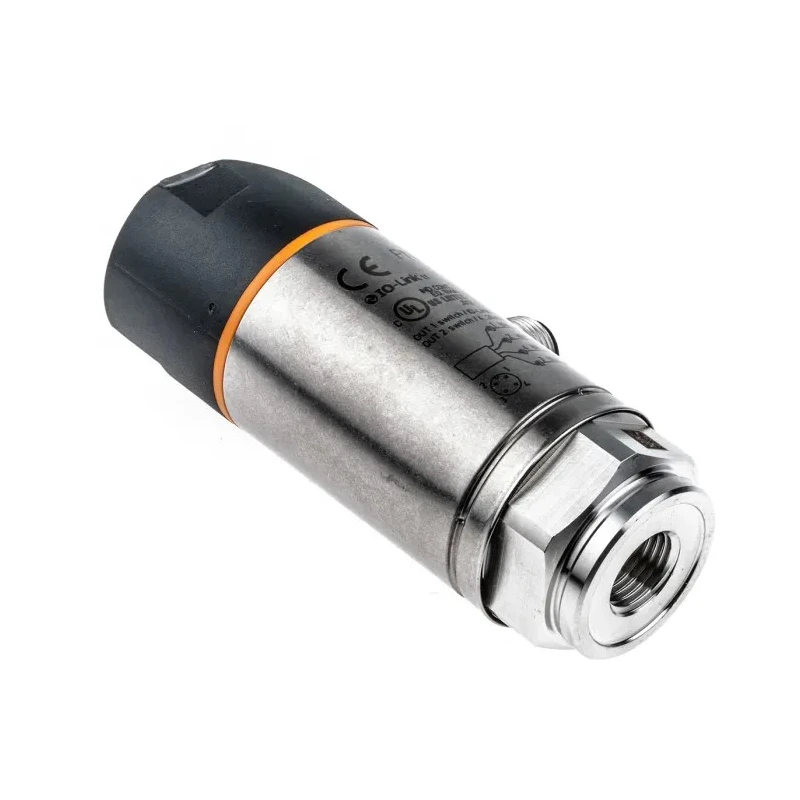

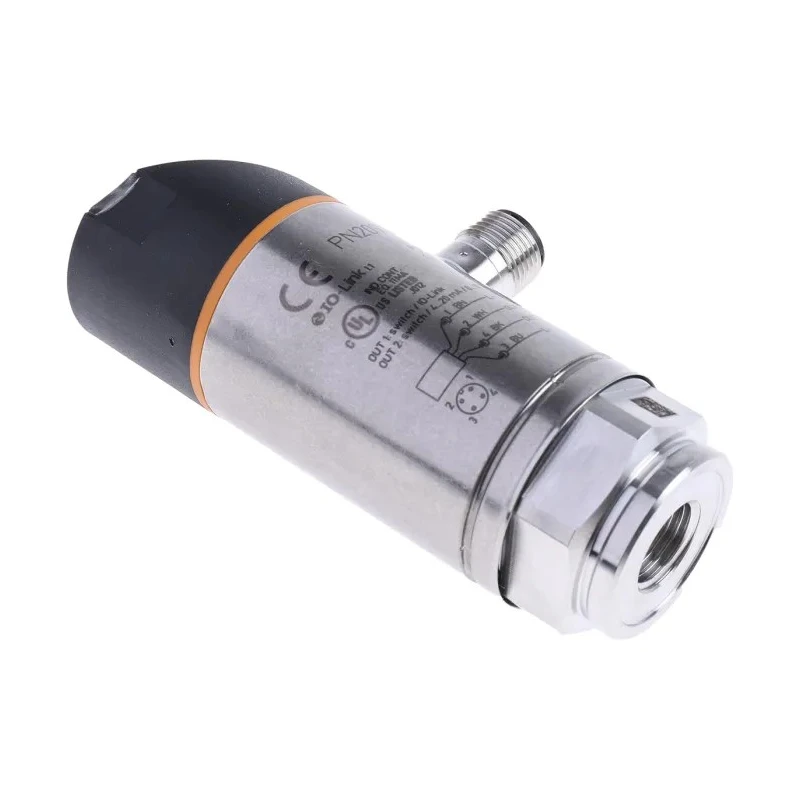

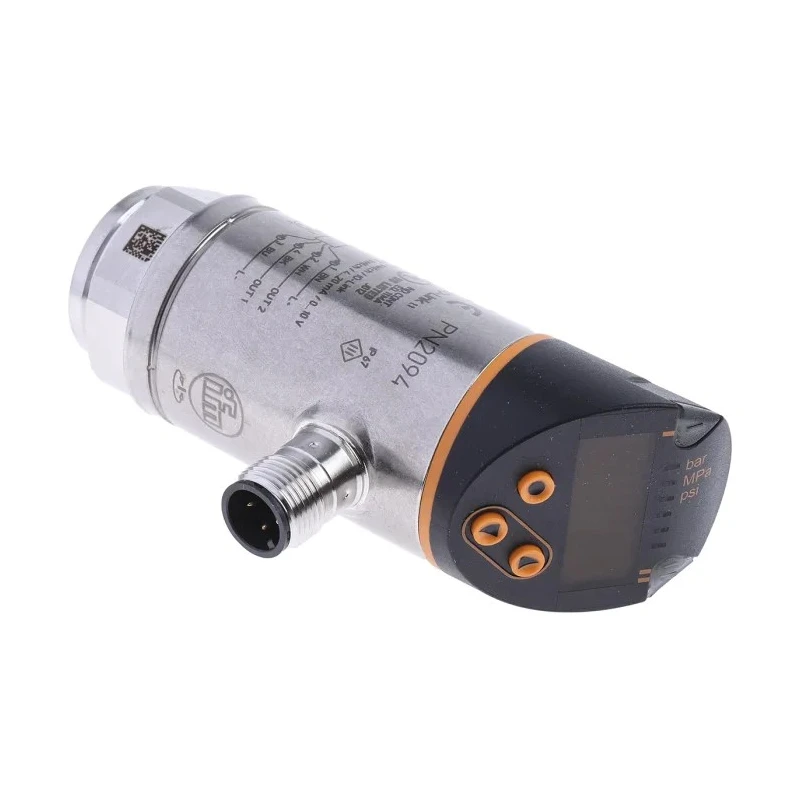

ifm electronic PN2094 Pressure Sensor, PN Series, PNP NO/NC, Analogue Output, -1 to 10 bar, IP65/IP67
Specifications
| Country of Origin | India |
|---|---|
| Accuracy | ±0.4 % |
| Display | 4-digit alphanumeric |
| Brand | ifm electronic |
| Response time | 3ms |
| Model | PN2094 |
| IP Rating | IP65, IP67 |
| Housing Material | Fibreglass Reinforced PBT GF30, Stainless Steel |
| Output type | PNP NO/NC, Analogue |
| Series | PN |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -25°C |
| Maximum Pressure Measurement | 10bar |
| Minimum Pressure Measurement | -1bar |
| Maximum Supply Voltage | 30V dc |
| Minimum Supply Voltage | 18V |
| Pressure Reading Type | Relative |
| Media Measured | Fluid |
Key Features
- Features PNP NO/NC and analogue output configuration for flexible integration.
- Measures relative pressure from -1 bar up to 10 bar with high accuracy.
- Bright 4-digit display provides clear system pressure readings and visual switching states.
- Offers IO-Link communication and visualisation via LED indicators.
- Constructed with fibreglass reinforced PBT GF30 and stainless steel for durability in industrial environments.
- Suitable for operation in temperatures from -25°C up to 80°C.
- Rated IP65 and IP67 for reliable protection against dust and water ingress.
- Supports rapid 3 ms response time for dynamic system monitoring.
Product Description
The ifm electronic PN2094 Pressure Sensor from the PN series delivers precise and reliable relative pressure measurement for industrial fluid monitoring applications. Designed for process automation, this sensor combines digital PNP NO/NC outputs alongside scalable analogue signaling, making it a versatile solution for both control feedback and continuous monitoring.
Engineered to measure pressures between -1 bar and 10 bar with a high accuracy of ±0.4%, this sensor supports rapid process dynamics with a response time as low as 3 ms. The integrated 4-digit alphanumeric display provides real-time system pressure readings, visible even in demanding industrial environments. Visual switching states are signaled by clear LED indicators, which can alternate between red and green to highlight system events or threshold breaches.
Features robust output options including dual switched NC/NO and scalable analogue output for flexible integration. IO-Link communication enables advanced device configuration, monitoring, and diagnostics within modern automation systems.
Signal damping and configurable output delays enhance measurement stability under varying process conditions. Housing is crafted from fibreglass reinforced PBT GF30 and stainless steel, providing excellent resistance to corrosion, mechanical stress, and aggressive process media.
Wide operational temperature range from -25°C to 80°C, with ingress protection ratings of IP65 and IP67 for challenging industrial settings. Compliant with major standards including UL, DIN EN 61000-6-2, DIN EN 60068-2-6, IEC 61131-9, and more for international acceptance.
High overload protection and a stable ceramic sensing element mitigate risks of drift or performance shifts due to pressure surges or long-term operation.
This sensor is ideally suited for deployment in industrial automation, hydraulic and pneumatic systems, water treatment plants, process manufacturing, and fluid handling operations. The versatile output options make it compatible with PLCs, data loggers, and proprietary monitoring infrastructure.
Key enhancements in the PN2094 include low zero offset, robust protection against overpressure, and easy mounting with 360-degree rotatable heads. The IO-Link interface further simplifies integration into smart factory or Industry 4.0 environments.
Explore the full range of advanced Pressure Sensors and industrial automation solutions from ifm electronic on EnvMart, your source for precise and reliable automation components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model measures relative pressure from -1 bar to 10 bar.
The PN2094 offers an accuracy of ±0.4%.
It features PNP NO/NC outputs along with a scalable analogue output for flexible integration.
The response time of this unit is as low as 3 ms, allowing for rapid process monitoring.
The housing is made from fibreglass reinforced PBT GF30 and stainless steel, providing durability in industrial environments.
It operates effectively within a temperature range of -25°C to 80°C.
This sensor is rated IP65 and IP67, offering protection against dust and water ingress.
Yes, it supports IO-Link communication for advanced device configuration and monitoring.
It is designed to measure fluid media.
It features a 4-digit alphanumeric display for clear pressure readings.
The minimum supply voltage for this model is 18V DC.
It is suitable for industrial automation, hydraulic and pneumatic systems, water treatment plants, and fluid handling operations.
