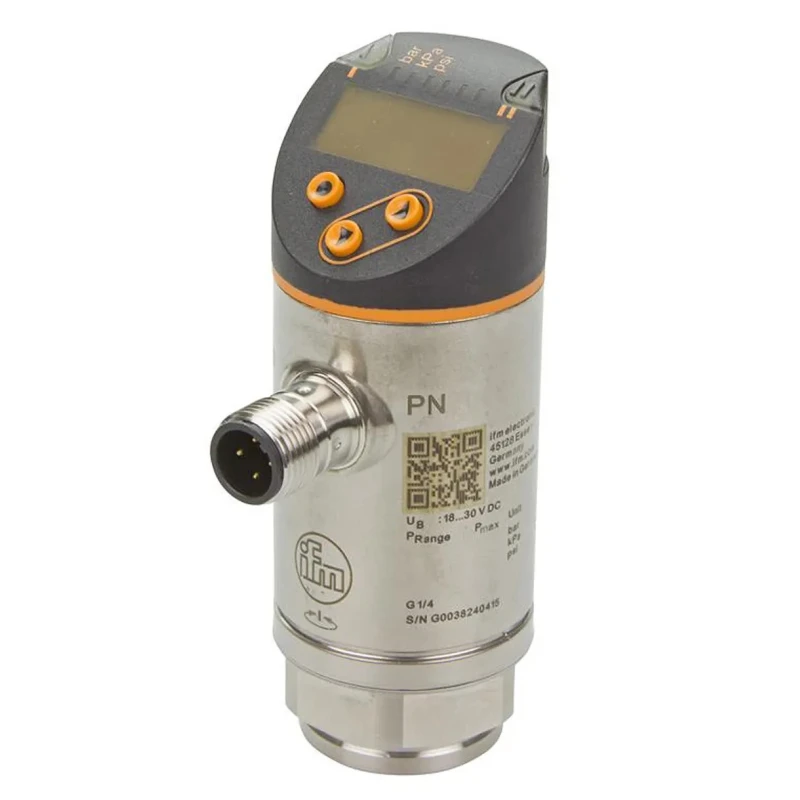

ifm electronic PN Series Pressure Sensor, PNP NO/NC, Analogue Output, 0 - 600 bar, ±0.5% Accuracy, Relative, PN3160
Specifications
| Country of Origin | Romania |
|---|---|
| Accuracy | ±0.5 % |
| Display | 4-digit alphanumeric |
| Brand | ifm electronic |
| Response time | 3ms |
| Model | PN3160 |
| IP Rating | IP67, IP65 |
| Housing Material | Fibreglass Reinforced PBT GF30, Stainless Steel |
| Output type | PNP NO/NC, Analogue |
| Series | PN |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -25°C |
| Maximum Pressure Measurement | 600bar |
| Minimum Pressure Measurement | 0bar |
| Maximum Supply Voltage | 30V dc |
| Minimum Supply Voltage | 18V |
| Pressure Reading Type | Relative |
| Media Measured | Fluid |
Key Features
- Provides pressure measurement from 0 to 600 bar with ±0.5% accuracy.
- Features PNP NO/NC and scalable analogue outputs for flexible integration.
- Supports IO-Link communication for advanced control and diagnostics.
- Offers a robust housing of fibreglass reinforced PBT GF30 and stainless steel.
- Includes 4-digit alphanumeric display for clear system pressure visualization.
- Operates in a wide temperature range from -25°C to 80°C.
- Rated IP65/IP67 for high resistance to dust and water ingress.
- Designed for fluid media in demanding industrial settings.
Product Description
ifm electronic PN3160 Pressure Sensor from the PN series is engineered for high-performance measurement of relative pressure in fluid media up to 600 bar. This industrial sensor is built with an accuracy of ±0.5% and integrates PNP NO/NC as well as analogue output options, providing flexible interfacing for automation and control systems.
Constructed using fibreglass reinforced PBT GF30 and stainless steel, the PN3160 ensures mechanical strength and chemical resistance under harsh environments. Its IO-Link communication capability enables real-time monitoring, parameterization, and diagnostic possibilities.
A bright 4-digit alphanumeric electronic display offers clear visualization of the system pressure, including adjustable indication between red and red-green for switching state feedback. Highly visible LEDs further enhance operational feedback for quick status assessment on the production line.
The PN3160 features independent set and reset points, advanced signal damping, and configurable output delays, providing effective management of transient conditions and process fluctuations. The ceramic measuring element offers exceptional stability, minimal zero offset, and resilience against overpressure or temperature variation.
Pressure measurement from 0 to 600 bar with ±0.5% accuracy. PNP NO/NC and analogue outputs for versatile integration. IO-Link communication for advanced connectivity and diagnostics. Robust housing with IP65/IP67 ingress protection.
Rapid response time of 3 ms for dynamic process control. Operating temperature range from -25°C to 80°C. Suitable for use with fluid media in industrial, HVAC, hydraulic, and manufacturing applications. Conforms to DIN, IEC, and UL standards for quality and reliability.
This sensor is ideal for industrial automation, hydraulic systems, water treatment, and commercial machinery where reliable and precise pressure monitoring is critical. Thanks to its scalable outputs and display, it is straightforward to deploy and maintain in complex environments.
Browse ifm electronic Pressure Sensors at EnvMart and discover robust solutions for industrial fluid measurement and automation.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model measures pressure from 0 to 600 bar with an accuracy of ±0.5%.
It features PNP NO/NC and analogue outputs for flexible integration into control systems.
The PN3160 has a rapid response time of 3 milliseconds, suitable for dynamic process control.
This unit operates within a temperature range of -25°C to 80°C.
It is constructed from fibreglass reinforced PBT GF30 and stainless steel, ensuring mechanical strength and chemical resistance.
The sensor is rated IP65/IP67, providing high resistance to dust and water ingress.
Yes, it supports IO-Link communication for advanced control and diagnostics.
This sensor is designed for measuring fluid media in industrial applications.
It includes a 4-digit alphanumeric display for clear visualization of system pressure.
This model conforms to DIN, IEC, and UL standards for quality and reliability.
The sensor operates with a supply voltage range of 18V to 30V DC.
It is suitable for industrial automation, hydraulic systems, water treatment, and commercial machinery where precise pressure monitoring is critical.
