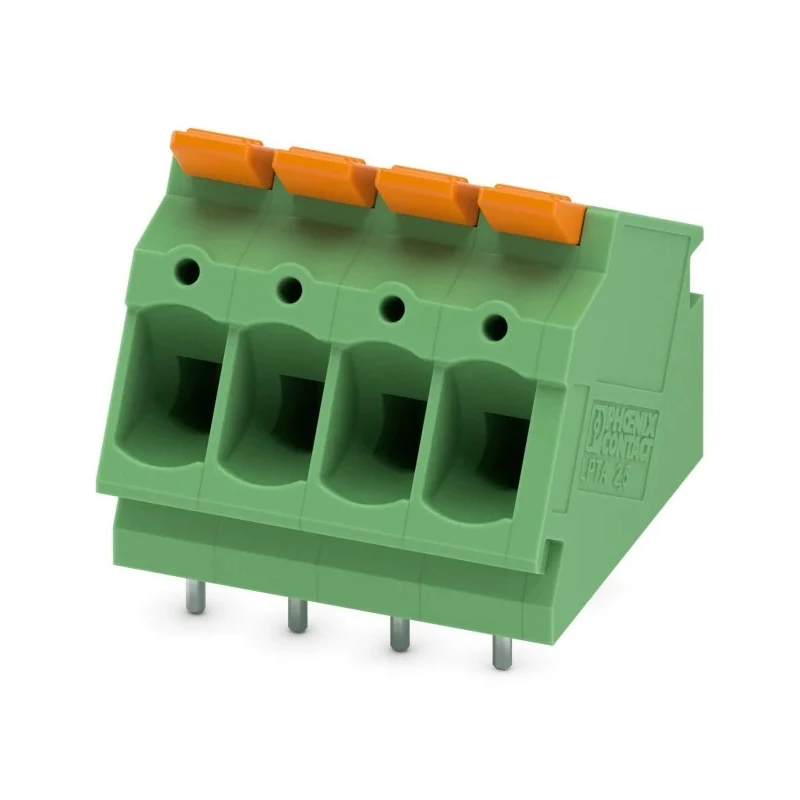

Phoenix Contact LPT Series PCB Terminal Block, 4-Contact, 5 mm Pitch, 1 Row 1190365

Phoenix Contact 1190365 LPT Series PCB Terminal Block represents a high-quality and versatile solution for printed circuit board connections in demanding industrial, automation, and electronic applications. With its 4-contact configuration, this terminal block enables secure, high-current connections, accommodating wire sizes from 0.2 mm² to 4 mm² (24 - 12 AWG). The 5 mm pitch ensures compatibility with widespread PCB layouts, facilitating compact assembly without compromising on performance.

Accommodates four contacts, ensuring secure and efficient wire termination. Features a 5 mm pitch for standardized PCB layouts and compact installations. Supports a current rating of up to 24A and voltage up to 400V for versatile use.

Utilizes push-in wiring technology for reliable, tool-free connections. Constructed with durable polyamide housing for enhanced insulation and resistance. Clear lever positions enable visual feedback on clamping status and safety.

Accepts a wide wire size range from 0.2 mm² to 4 mm², compatible with 24 - 12 AWG wires. Straight orientation allows direct vertical mounting to PCBs in one-row applications. Green housing color aids easy identification and compliance with industrial color codes.

Conforms to IEC standards for quality and safety in electrical installations.

Engineered for tool-free wiring, the innovative push-in system ensures rapid, reliable connections, reducing installation time and minimizing the risk of improper terminations. The clear actuator lever provides unmistakable feedback regarding open or closed clamping positions, improving safety and operational confidence during assembly and maintenance.

This PCB terminal block is constructed from robust polyamide for long-term insulation integrity under a range of environmental conditions. Both housing and contact materials are chosen for chemical and mechanical stability, contributing to its long service life, even in harsh industrial settings.

Rated for 24A of current and voltages up to 400V, this part is ideally suited for a wide range of low- and medium-power PCB applications including industrial equipment, building automation, control cabinets, test and measurement instruments, and renewable energy systems.

Phoenix Contact’s LPT series is designed for global markets, conforming to IEC safety and performance standards. Its standard green color allows for easy integration in color-coded connector panels. The product’s one-row, straight-mount configuration ensures efficient, space-saving placements where PCB real estate is at a premium.

Typical industrial use cases include power distribution, signal transmission, and sensor-actuator wiring in process automation, manufacturing machinery, HVAC, and switchgear equipment. The block’s versatility also supports laboratory and R&D electronics.
