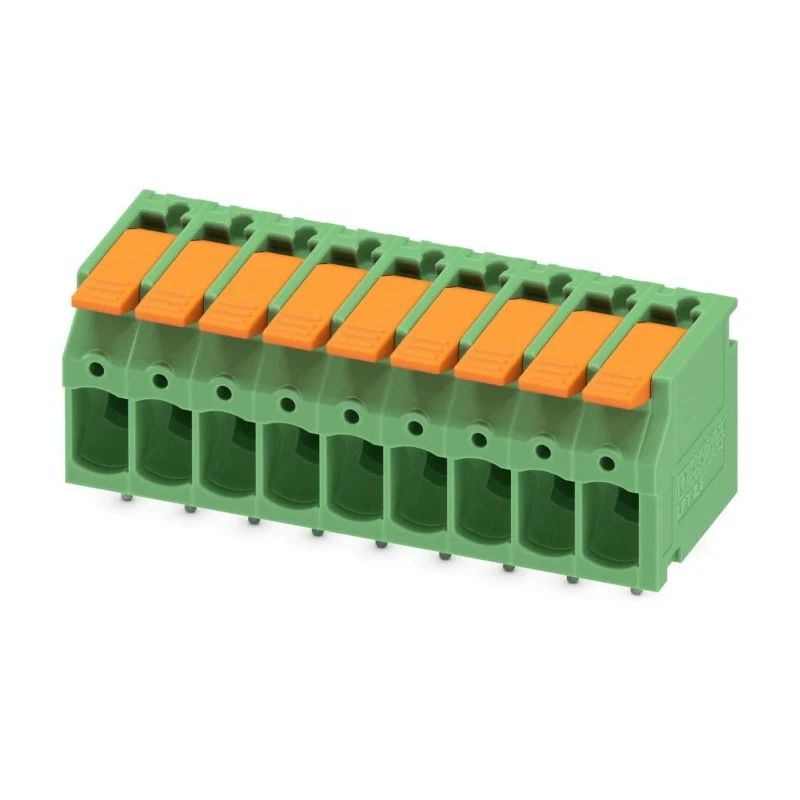

Phoenix Contact LPT PCB Terminal Block, 9 Contacts, 5 mm Pitch, 1 Row, 1190305
Specifications
| Country of Origin | Poland |
|---|---|
| Voltage | 400V |
| Brand | Phoenix Contact |
| Colour | Green |
| Orientation | Straight |
| Current | 24A |
| Length | 17.8mm |
| Model | 1190305 |
| Depth | 20.24mm |
| Width | 46.5mm |
| Housing Material | Polyamide |
| Series | LPT |
| Number of Rows | 1 |
| Pitch | 5mm |
| Standards/Approvals | IEC |
| Number of Contacts | 9 |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 4mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 12AWG |
| Wire Connection Method | Push-in |
Key Features
- Features 9 contacts with a compact 5 mm pitch for space-saving PCB layouts.
- Single row configuration suitable for various board connection applications.
- Push-in wire connection technology eliminates the need for additional tools.
- Rated for up to 24A and 400V for robust electrical performance.
- Accommodates wire sizes from 0.2mm² to 4mm² (24 - 12 AWG).
- Constructed with high-quality polyamide housing and copper alloy contacts for durability.
- Straight orientation ensures streamlined installation on standard PCBs.
- Complies with IEC standards for reliable long-term use.
Product Description
The Phoenix Contact 1190305 is a high-quality PCB terminal block from the LPT Series, specifically engineered for demanding electronic and industrial applications requiring reliable wire-to-board connections. Featuring 9 contacts in a single row with a 5 mm pitch, this terminal block is ideal for high-density mounting on printed circuit boards.
Designed with a push-in connection method, the device enables quick, tool-free wiring and guarantees consistent contact force. With accommodation for wire sizes from 0.2mm² up to 4mm² (24 to 12 AWG), it offers flexibility for various signal and power line requirements. The straight orientation and compact footprint support modern PCB layouts, while the polyamide housing ensures excellent mechanical and dielectric properties.
Features 9 contacts for multi-point board connections. 5 mm pitch spacing balances density and ease of wiring. Robust push-in spring technology enables reliable tool-free insertion. Rated current handling up to 24A at 400V to suit both power and signal operations.
Housing made from durable polyamide, with green color for industry standard coding. Contact material is copper alloy for corrosion-resistant, long-term conductivity. IEC compliant construction for international project suitability.
Precision dimensions (17.8mm L x 46.5mm W x 20.24mm D) for universal PCB integration.
Typical applications include industrial controls, automation systems, electrical panels, and other electronic circuits requiring modular board-level connections. The LPT series is recognized for its clear lever positions, which provide visual feedback for easy verification during installation and maintenance.
This PCB terminal block is manufactured in Poland and is part of the Phoenix Contact LPT Series, reflecting quality and consistency in production. Whether for prototyping or series manufacturing, 1190305 delivers performance and ease-of-use in all professional environments.
Browse similar PCB Terminal Blocks or explore the Phoenix Contact range in the Electronics Components category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal block is rated for a maximum current of 24A and a voltage of 400V.
It accommodates wire sizes ranging from 0.2mm² to 4mm², or 24 AWG to 12 AWG.
The terminal block features 9 contacts with a compact 5 mm pitch in a single row configuration.
It utilizes a push-in connection method, allowing for quick and tool-free wiring.
The dimensions are 17.8mm in length, 46.5mm in width, and 20.24mm in depth.
The housing is constructed from high-quality polyamide, providing excellent mechanical and dielectric properties.
Yes, it complies with IEC standards for reliable long-term use in various applications.
It is manufactured in Poland.
The housing is green, which is standard for industry coding.
Typical applications include industrial controls, automation systems, and electrical panels that require modular board-level connections.
The clear lever positions provide visual feedback for easy verification during installation and maintenance.
This terminal block has a single row of contacts.
