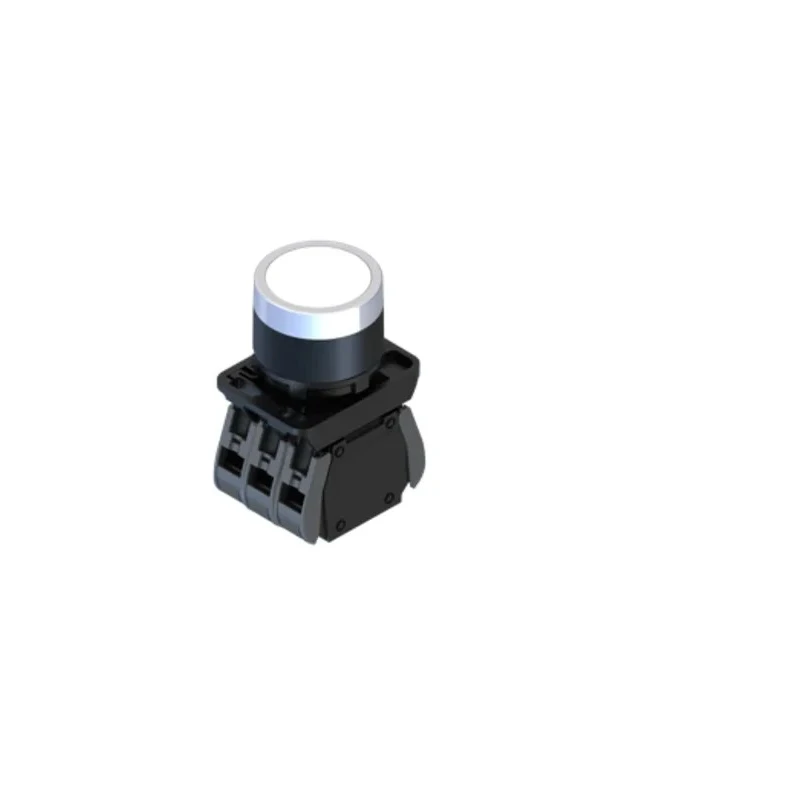

RS PRO ECX4 Series Illuminated Push Button Switch, Panel Mount, Momentary, White, 1 NO/1 NC, IP20/IP65, 24V, 30mm 239-8209
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | RS PRO |
| Colour | Red, Blue, Green, White and Yellow available |
| Body Material | Thermoplastic |
| Outer Diameter | 30 mm |
| Model | 239-8209 |
| IP Rating | IP20, IP65 |
| Mount Type | Panel |
| Series | ECX4 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | 1 NO/1 NC |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Standards/Approvals | EN 60947-5-1 and UL 508 |
| Push Button Actuation | Momentary |
| Push Button Material | Thermoplastic |
| Push Button Colour | White |
| Push Button Diameter | 30mm |
| Push Button Style | Round |
| Illumination Voltage | 24V |
| Cut-out Diameter | 22.5 mm |
| Connecting Terminals | Screw with captive cable clamp |
Key Features
- Designed for panel mounting, suitable for industrial control systems.
- Illuminated round push button with white colour for clear visual indication.
- Contact configuration of 1 NO and 1 NC enables versatile circuit design.
- IP20 and IP65 ratings ensure protection against dust and water ingress.
- Momentary actuation for temporary operation in start/stop applications.
- Rated at 24V AC/DC for broad compatibility with control circuits.
- Thermoplastic body and button material for durability and reliability.
- 30 mm outer diameter and 22.5 mm cut-out accommodate standard panel design.
Product Description
RS PRO ECX4 Series Illuminated Push Button Switch, model 239-8209, is engineered for industrial, commercial, and automation applications requiring reliable interface control. This unit features a momentary actuation mechanism, allowing operators to easily initiate or interrupt processes in machine control panels, production lines, and safety systems.
The illuminated white round push button ensures visibility and user-friendly operation, with built-in LED illumination powered by 24V AC/DC. The robust thermoplastic body and chrome-plated Zamak casing provide durability for demanding environments.
The device incorporates a 1 NO/1 NC contact configuration, offering flexibility for switching different circuit states. Panel mounting is facilitated by a standard 22.5 mm cut-out, and the screw terminal connection ensures secure, maintenance-friendly installation with captive cable clamps.
IP20 and IP65 ingress protection ratings mean this switch is both protected against dust and suitable for wet or washdown environments, making it ideal for control systems in industrial automation, building management, automotive, medical equipment, and lighting control applications.
Designed for panel mounting in control and automation equipment. Illuminated white round push button improves operator feedback. Momentary actuation suitable for start/stop and emergency functions. 1 NO/1 NC contact configuration meets a variety of wiring needs.
Robust thermoplastic materials for extended product lifespan. Rated for harsh conditions with wide operating temperature and IP protection. Screw terminals with captive clamp for quick and secure wiring. Complies with EN 60947-5-1 and UL 508 standards for global usability.
Country of origin: Italy. Outer diameter: 30 mm; Cut-out diameter: 22.5 mm.
RS PRO ECX4 Series Push Button Switch is a trusted choice for engineers worldwide. Its reliable construction and exceptional quality provide precise control for industrial, laboratory, and commercial systems. Discover the full RS PRO Push Button Switch range on EnvMart for all panel control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a contact configuration of 1 NO (Normally Open) and 1 NC (Normally Closed), allowing for versatile circuit design.
The illuminated push button operates at an illumination voltage of 24V, suitable for various control circuits.
The switch has IP20 and IP65 ratings, providing protection against dust and water ingress, making it suitable for various environments.
The outer diameter of this push button is 30 mm, which accommodates standard panel designs.
The cut-out diameter required for installation is 22.5 mm, facilitating panel mounting.
Both the body and the button of this unit are made from thermoplastic, providing durability for industrial applications.
This model operates within a temperature range of -25°C to 70°C, making it suitable for various environmental conditions.
It uses screw terminals with captive cable clamps, ensuring secure and maintenance-friendly installation.
This switch complies with EN 60947-5-1 and UL 508 standards, ensuring global usability in various applications.
This model features momentary actuation, allowing for temporary operation in start/stop applications.
The push button switch is manufactured in Italy, ensuring adherence to quality standards.
The push button is available in several colors including Red, Blue, Green, White, and Yellow.
