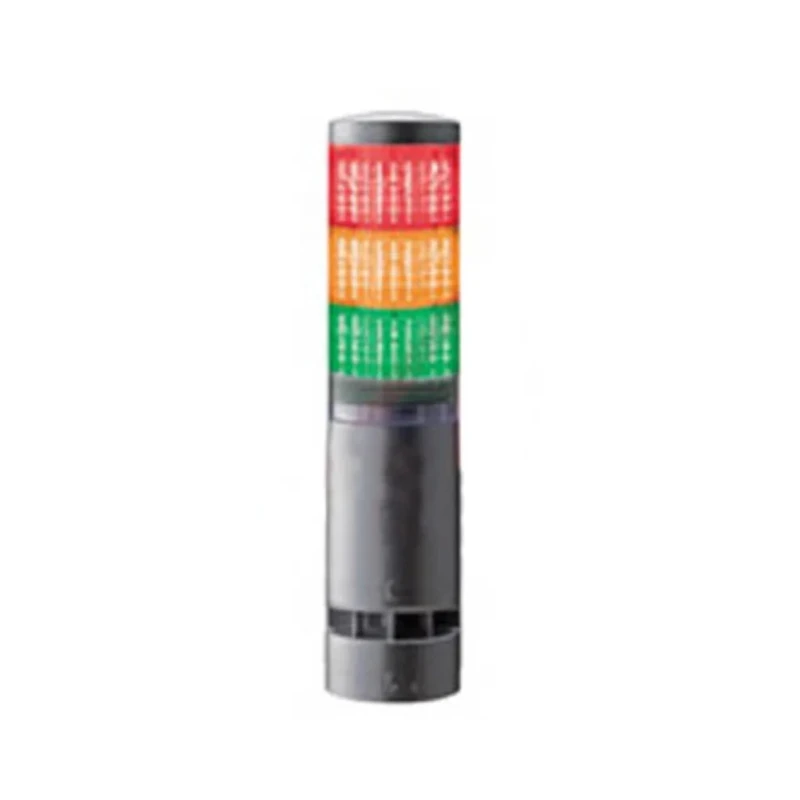

Patlite LA6 Series Clear Signal Tower Alarm, 5 RGB LED Lights, Multifunction, 26.4V DC, IP65 LA6-3DTNWN-RYG
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Patlite |
| Height | 224mm |
| Model | LA6-3DTNWN-RYG |
| IP Rating | IP65 |
| Bulb Type | RGB LED |
| Series | LA6 |
| Maximum Operating Temperature | 60°C |
| Current Type | DC |
| Current consumption | 70mA |
| Minimum Operating Temperature | -25°C |
| Base Diameter | 60mm |
| Terminal type | Screwless Terminal |
| Standards/Approvals | UL508, CE, RoHS Directive (EN 50581), EMC Directive (EN 61000-6-4,EN 61000-6-2), KC (KN 61000-6-4,KN 61000-6-2), UL Recognised Component (File No.E215660), FCC Part 15 SubpartB Class A, CSA-C22.2 No.14 |
| Maximum Supply Voltage | 26.4V dc |
| Housing Colour | White |
| Light Effect | Multiple |
| Sounder Type | Alarm |
| Sound Level at 1m | 85dB |
| Maximum Sound Level | 85dB |
| Number of Light Elements | 5 |
| Connection Cable Length | 1060mm |
Key Features
- Equipped with 5 RGB LED light elements for clear status indication.
- Built-in alarm with 11 selectable tones and high sound level of 85dB at 1m.
- Supports multiple light effects and multifunction display capabilities.
- Rated IP65 for dust and water ingress protection, suitable for demanding environments.
- Operates on 26.4V DC supply, with low current consumption of 70mA.
- Easy installation via screwless terminal and pole/direct mount options.
- White housing with a clear lens, base diameter of 60mm and height of 224mm.
- Suitable for temperatures from -25°C to 60°C with 1060mm cable length.
Product Description
Patlite LA6-3DTNWN-RYG Clear Signal Tower Alarm is a professional solution for advanced status indication and audible alerting in industrial automation, manufacturing, and commercial facilities. Designed as part of the renowned Patlite LA6 Series, this signal tower incorporates five RGB LED light elements, capable of displaying a wide range of colours and combinations to match diverse operational requirements.
The integrated alarm function provides up to 11 selectable tones and a maximum sound level of 85dB at 1m, ensuring critical alerts are clearly communicated even in busy surroundings. Multifunction display capabilities allow customisation of light patterns and effects to suit process status, warning signals, or operational notifications.
Engineered for robust and flexible deployment, the signal tower features an IP65 rating, protecting against dust and water ingress. Its white housing and clear lens deliver maximum visibility, while the screwless terminal design simplifies electrical connections. The device supports both pole mount and direct mount options, with a compact base diameter of 60mm and overall height of 224mm for easy integration.
Equipped with 5 RGB LED light elements for clear status indication. Built-in alarm with 11 selectable tones and high sound level of 85dB at 1m. Supports multiple light effects and multifunction display capabilities. Rated IP65 for dust and water ingress protection, suitable for demanding environments.
Operates on 26.4V DC supply, with low current consumption of 70mA. Easy installation via screwless terminal and pole/direct mount options. White housing with a clear lens, base diameter of 60mm and height of 224mm. Suitable for temperatures from -25°C to 60°C with 1060mm cable length.
Ideal for automation lines, manufacturing equipment, commercial signalling, and process control applications, the LA6 Series tower alarms offer high reliability and compliance with UL508, CE, RoHS, EMC, KC, FCC, and CSA standards. The versatility in signalling, combined with robust construction, makes this product an essential component for real-time notification and operational safety in modern industrial facilities.
Explore more Patlite LA6 Series Signal Towers and automation signalling solutions from EnvMart for your facility’s needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum sound level of the Patlite LA6-3DTNWN-RYG signal tower alarm is 85dB at a distance of 1 meter.
This model operates on a supply voltage of 26.4V DC.
The signal tower is rated IP65, providing protection against dust and water ingress.
It is equipped with five RGB LED light elements.
This unit can operate in temperatures ranging from -25°C to 60°C.
It features a screwless terminal design for easy electrical connections.
The base diameter of this signal tower is 60mm.
This model supports both pole mount and direct mount options for installation.
It supports multiple light effects and customizable display capabilities.
The current consumption of the Patlite LA6-3DTNWN-RYG is 70mA.
It complies with UL508, CE, RoHS, EMC, KC, FCC, and CSA standards.
The connection cable length is 1060mm.
