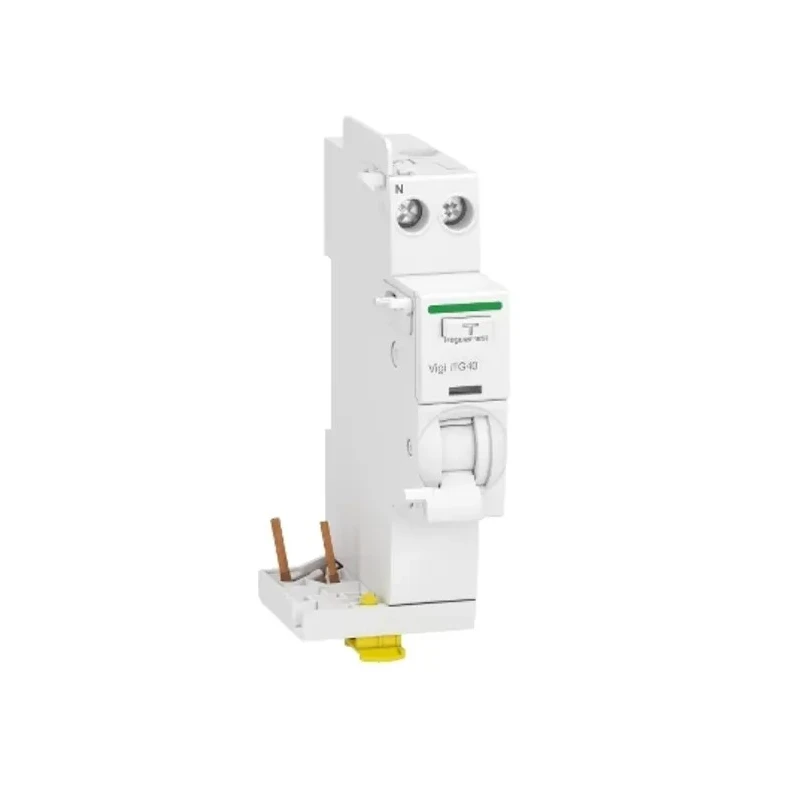

Schneider Electric Acti9 Series Residual Current Circuit Breaker , 25A, 1-Pole, 300mA, Type AC, 500A, 230V AC
Specifications
| Country of Origin | France |
|---|---|
| Range | Acti9 |
| Brand | Schneider Electric |
| Height | 85mm |
| Model | Acti9 |
| Depth | 74mm |
| Width | 36mm |
| Mount Type | DIN Rail |
| Current Rating | 25A |
| Series | Acti9 |
| Terminal type | Screw |
| Breaking Capacity | 500A |
| Number of Poles | 1 |
| Standards/Approvals | EN/IEC 61008-2-1 |
| Rated AC Voltage | 230V ac |
| Tripping Characteristics | Type AC |
| Reset Actuator Type | Toggle Switch |
| Trip Sensitivity | 300mA |
| Break Time | Instantaneous |
| Earth Leakage Protection Type | AC |
Key Features
- Rated current of 25A for reliable circuit protection.
- 1-Pole configuration enables straightforward DIN rail installation.
- 300mA trip sensitivity for effective safety.
- Instantaneous earth-leakage protection with Type AC tripping characteristics.
- Breaking capacity rated at 500A for robust performance.
- Toggle switch reset actuator for intuitive operation.
- EN/IEC 61008-2-1 compliance ensures international standards adherence.
Product Description
Schneider Electric A9Y15625 Residual Current Circuit Breaker is engineered for dependable protection in industrial and residential electrical systems. This RCCB features a 25A current rating, 1-pole design, and a 300mA trip sensitivity, making it suitable for various circuits requiring earth-leakage protection. With Type AC instantaneous tripping and a breaking capacity of 500A, it safeguards your infrastructure from electrical faults.
Rated current: 25A. 1-Pole configuration, ideal for single-circuit applications. 300mA trip sensitivity ensures quick response to leakage. Type AC tripping characteristic for standard alternating current protection. DIN rail mount for easy installation and maintenance.
Compliant with EN/IEC 61008-2-1 for assured performance and safety. Toggle switch reset actuator enhances user safety and convenience. Screw terminal for solid electrical contact. Earth leakage protection type AC with instant break time.
Padlockable for extra security in commercial installations.
This RCCB is suited to industrial and residential applications including factories, distribution panels, and smart home systems. Its robust design supports high electrical durability (20,000 cycles) and withstands impulse voltages up to 4kV. Schneider Electric's Acti9 series leverages premium green components for improved reliability and performance in critical environments.
Dimensions are compact (85mm height, 74mm depth, 36mm width), allowing seamless integration into control cabinets or switchboards. Country of origin: France. Choose Schneider Electric for trusted circuit protection across industrial, laboratory, manufacturing, HVAC, and utility use cases.
Discover more Residual Current Circuit Breakers and related circuit protection devices from Schneider Electric in the EnvMart catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The rated current of this model is 25A, providing reliable circuit protection.
It has a breaking capacity rated at 500A, ensuring robust performance during electrical faults.
This unit features a trip sensitivity of 300mA, which allows for effective safety against earth leakage.
The circuit breaker is designed for DIN rail mounting, making installation straightforward and efficient.
The dimensions are 85mm in height, 74mm in depth, and 36mm in width, allowing for compact integration into control cabinets.
It has Type AC tripping characteristics, providing instantaneous earth-leakage protection for standard alternating current.
This RCCB complies with EN/IEC 61008-2-1 standards, ensuring adherence to international safety and performance requirements.
It utilizes a toggle switch reset actuator for intuitive operation and enhanced user safety.
The country of origin for this model is France.
It features screw terminals, providing solid electrical contact for reliable connections.
This RCCB is suitable for various applications, including industrial and residential electrical systems, factories, and smart home systems.
The maximum rated AC voltage for this model is 230V AC, making it compatible with standard electrical systems.
