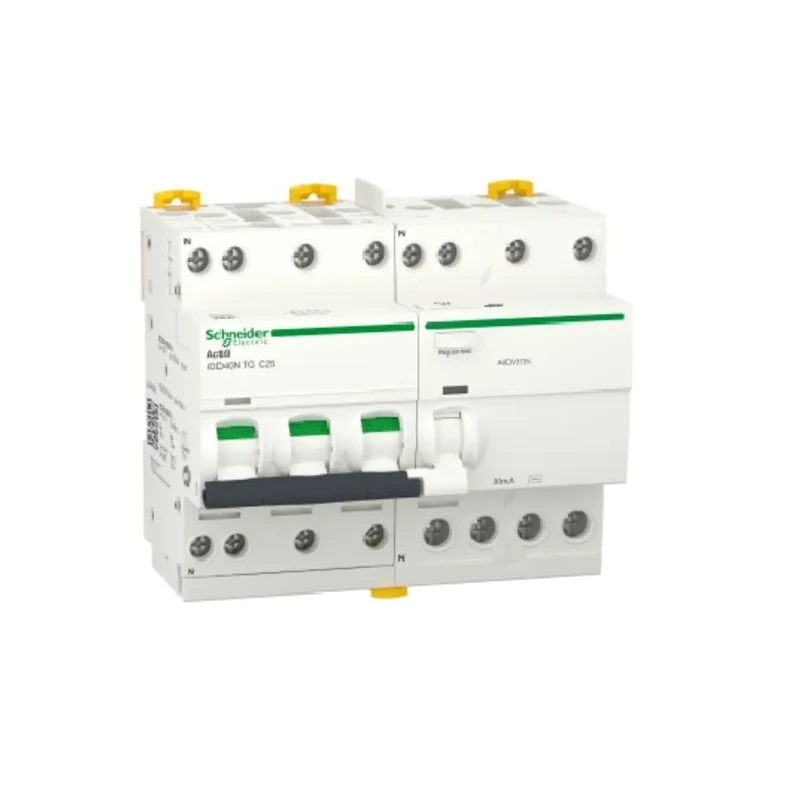

Schneider Electric Residual Current Circuit Breaker with Overload Protection, 32A, 3 Pole, 400V AC, 30mA Trip, DIN A9DV3732
Specifications
| Country of Origin | Spain |
|---|---|
| Range | Acti9 |
| Brand | Schneider Electric |
| Height | 93mm |
| Model | A9DV3732 |
| Depth | 73mm |
| Width | 90mm |
| Mount Type | DIN Rail |
| Current Rating | 32A |
| Series | Acti9 iDD40N |
| Terminal type | Tunnel |
| Breaking Capacity | 10kA |
| Number of Poles | 3 |
| Standards/Approvals | RoHS, EN/IEC 60947-2 |
| Rated AC Voltage | 400V ac |
| Tripping Characteristics | Type C |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Toggle Switch |
| Trip Sensitivity | 30mA |
| Earth Leakage Protection Type | AC |
Key Features
- Rated current of 32A for demanding applications.
- Features 3-pole configuration for three-phase circuits.
- Provides earth leakage protection with 30mA trip sensitivity.
- Designed for DIN rail mounting in distribution panels.
- Operates at 400V AC with Type C tripping characteristics.
- High breaking capacity of 10kA enhances safety.
- Thermal magnetic tripping mechanism for overload and short circuit protection.
- Complies with RoHS and EN/IEC 60947-2 standards.
Product Description
Schneider Electric A9DV3732 Residual Current Circuit Breaker with Overload Protection delivers advanced protection for industrial and commercial installations. Featuring a 32A current rating and 3-pole design, this device effectively safeguards three-phase circuits against overloads and earth leakage faults. Its 30mA trip sensitivity ensures quick disconnects upon detecting hazardous leakage currents, minimizing electrical shock risk and protecting equipment.
Installed easily on a DIN rail, this RCBO is ideally suited for integration into modern distribution panels and control cabinets. Capable of handling 400V AC, it provides robust protections in residential, commercial, and light industrial settings where safety and reliability are paramount. Type C tripping characteristics enable compatibility with inductive and resistive loads.
Rated current: 32A for a wide range of electrical devices. 3-pole configuration accommodates three-phase applications. Certifications include RoHS and EN/IEC 60947-2, ensuring safety and compliance. Breaking capacity of 10kA for handling high fault currents.
Thermal magnetic trip unit automatically disconnects during short circuit or overload situations. Earth leakage protection type AC with 30mA trip to prevent electric shock. Compact dimensions (93mm x 90mm x 73mm) fit easily into control panels.
Toggle switch reset actuator for user-friendly operation and status indication.
This circuit breaker offers operational reliability in ambient air temperatures from -5°C to 60°C, with a relative humidity resistance up to 95% at 55°C. Electrical durability of 20,000 cycles gives you peace of mind for long-term facility safety.
Typical applications include overcurrent and earth leakage protection in residential buildings, commercial complexes, light industrial panels, and distribution boards where protection from electrical faults is vital.
Discover more Residual Current Circuit Breakers and electrical protection solutions by Schneider Electric on EnvMart. Ensure consistent electrical safety and compliance across all your installations.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 32A, making it suitable for demanding applications in industrial and commercial installations.
It features a breaking capacity of 10kA, which enhances safety by effectively handling high fault currents.
This unit is designed with a 3-pole configuration, accommodating three-phase circuits.
The earth leakage protection has a trip sensitivity of 30mA, ensuring quick disconnects to minimize electrical shock risk.
The dimensions of the circuit breaker are 93mm in height, 90mm in width, and 73mm in depth, allowing for easy installation in control panels.
It is designed for DIN rail mounting, making it suitable for integration into distribution panels and control cabinets.
This circuit breaker operates reliably in ambient air temperatures ranging from -5°C to 60°C.
It complies with RoHS and EN/IEC 60947-2 standards, ensuring safety and regulatory compliance.
This model uses a thermal magnetic tripping mechanism for overload and short circuit protection.
It features a toggle switch reset actuator, providing user-friendly operation and status indication.
It is typically used for overcurrent and earth leakage protection in residential buildings, commercial complexes, and light industrial panels.
It provides AC type earth leakage protection, designed to prevent electric shock hazards.
