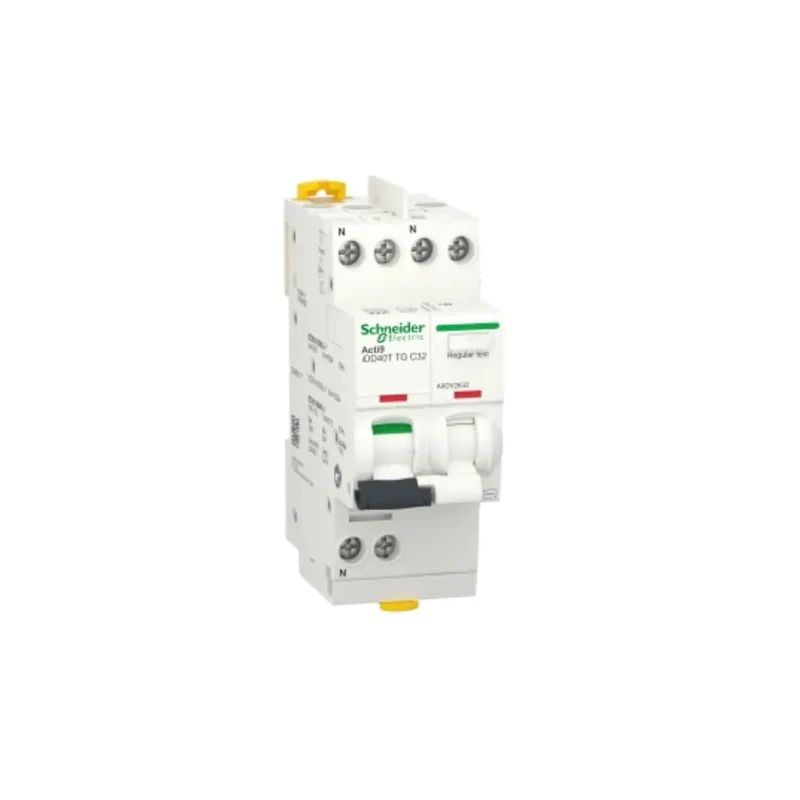

Schneider Electric Residual Current Circuit Breaker with Overload Protection, 20A, 1-Pole, 400V AC, 30mA, DIN Rail A9DV3620
Specifications
| Country of Origin | France |
|---|---|
| Range | Acti9 |
| Brand | Schneider Electric |
| Height | 93mm |
| Model | A9DV3620 |
| Depth | 73mm |
| Width | 36mm |
| Mount Type | DIN Rail |
| Current Rating | 20A |
| Series | Acti9 iDD40N |
| Terminal type | Tunnel |
| Breaking Capacity | 10kA |
| Number of Poles | 1 |
| Standards/Approvals | RoHS, EN/IEC 60947-2 |
| Rated AC Voltage | 400V ac |
| Tripping Characteristics | Type C |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Toggle Switch |
| Trip Sensitivity | 30mA |
| Earth Leakage Protection Type | AC |
Key Features
- Offers reliable residual current protection and overload prevention in electrical installations.
- Supports a 20A current rating with 1-pole configuration suitable for distribution and residential applications.
- Features 30mA trip sensitivity for effective earth leakage detection and prevention of electrical shocks.
- Thermal magnetic tripping mechanism ensures fast response to overcurrent and short circuits.
- Toggle actuator enables easy reset, with ON/OFF and trip indication for operational convenience.
- Complies with RoHS and EN/IEC 60947-2 safety standards for assured performance and durability.
- Padlockable for extra security; built for humid environments (up to 95% at 55°C) and wide operating temperatures.
Product Description
Schneider Electric A9DV3620 Residual Current Circuit Breaker with Overload Protection brings advanced circuit protection to electrical installations, combining residual current functionality with overload safeguarding in one robust unit. Designed for efficient distribution and residential applications, this RCBO offers reliable performance even under demanding conditions.
Its 20A current rating and one-pole configuration make it suitable for a range of systems requiring precise protection. With a trip sensitivity of 30mA, the device accurately detects earth leakage, helping prevent potential electrical shocks and fire hazards.
The Acti9 iDD40N Series utilizes a thermal magnetic tripping mechanism, offering fast response to overcurrent, short circuits, and leakage faults. The reset actuator is a convenient toggle switch with clear ON/OFF and trip indication. Users appreciate its robust electrical durability, rated at 20,000 cycles, and impulse withstand voltage of 4kV.
Designed for DIN rail mounting and featuring tunnel terminals, it ensures secure connections and straightforward installation. The breaker is padlockable, adding security in both residential and commercial settings.
Offers residual current and overload protection for greater electrical safety. Fast tripping response reduces risk from short circuits and overcurrent conditions. Compact dimensions fit efficiently in a variety of enclosure sizes.
Compliant with RoHS, EN/IEC 60947-2, and EN/IEC 61009-2-1 for dependable operation. Humidity resistance up to 95% at 55°C; operates in temperatures from -5 to 60°C. Suitable for distribution, residential, and overcurrent protection use cases.
Acti9 series is a trusted industrial choice for secure circuit management.
The Schneider Electric A9DV3620 RCBO is ideal for installation in distribution boards, service panels, and residential power networks, protecting users and equipment from electrical faults. Explore related Schneider Electric products and the RCBO category on EnvMart for further safety solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The A9DV3620 circuit breaker has a current rating of 20A.
This model features a trip sensitivity of 30mA, providing effective earth leakage detection.
The maximum rated AC voltage for this unit is 400V AC.
The A9DV3620 has a 1-pole configuration.
It utilizes a thermal magnetic tripping mechanism for fast response to overcurrent and short circuits.
The dimensions of the A9DV3620 are 93mm in height, 73mm in depth, and 36mm in width.
The breaking capacity of this circuit breaker is 10kA.
This model is designed for DIN rail mounting, ensuring secure installation.
It complies with RoHS and EN/IEC 60947-2 safety standards.
The reset actuator type for this circuit breaker is a toggle switch, allowing for easy operation.
This unit can operate in environments with humidity up to 95% at 55°C and temperatures ranging from -5 to 60°C.
The A9DV3620 belongs to the Acti9 iDD40N series, known for advanced circuit protection.
