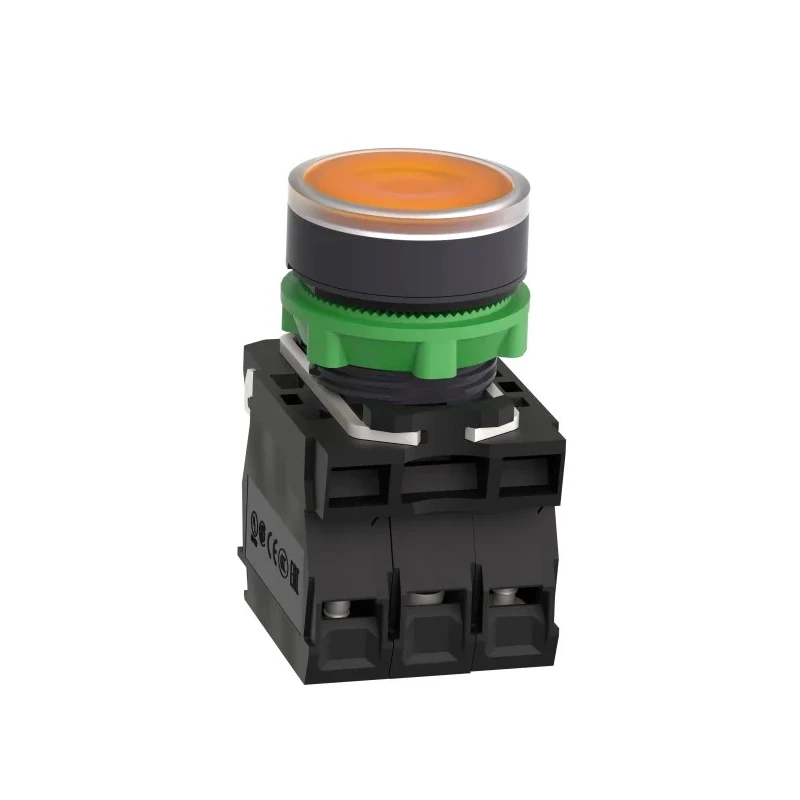

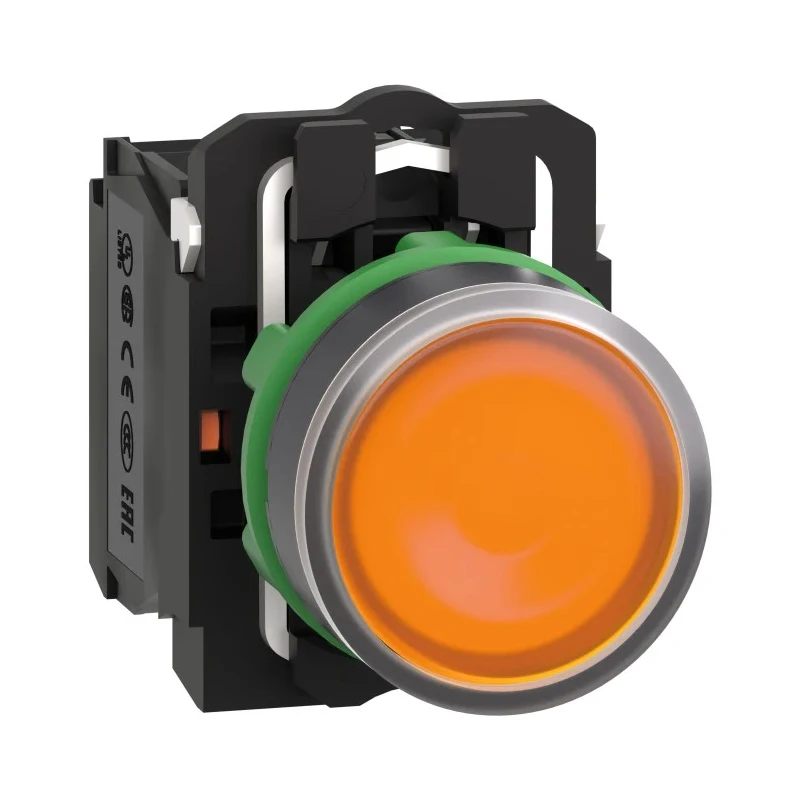

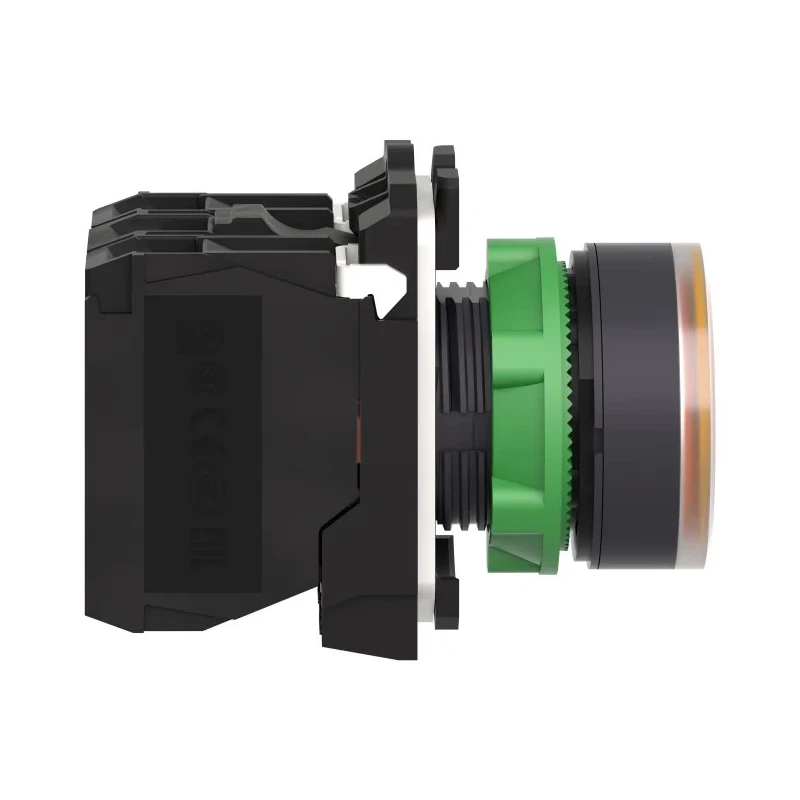

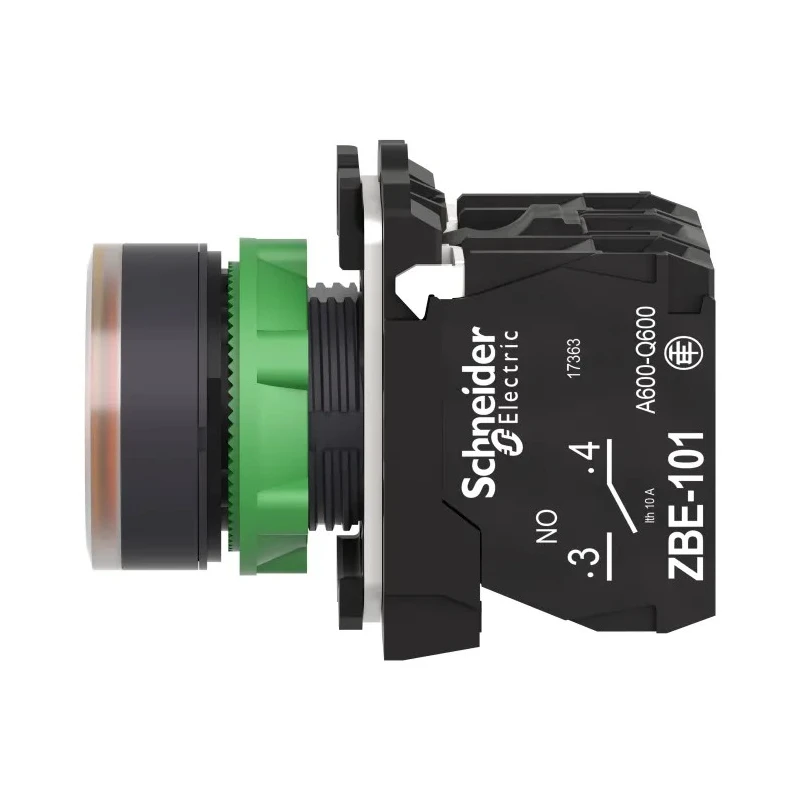

Schneider Electric Harmony XB5 Series Illuminated Push Button Switch, Spring Return, Panel Mount, 22 mm Cutout XB5AW35M5

Schneider Electric presents the Harmony XB5AW35M5, an advanced illuminated push button switch from its renowned Harmony XB5 Series. Engineered for critical industrial control functions, this switch features a flush orange actuator illuminated by an integral LED, making it easy to identify in low-light conditions or when emergency action is required. The spring return design ensures that the actuator reliably returns to its original position after each operation, offering efficient reset for safety or control circuits.

Designed with a compact 22 mm mounting diameter, the XB5AW35M5 is easy to install within panels and operator stations. Its SPDT contact configuration allows for use in a range of control systems, supporting 1 NO and 1 NC circuits for flexible integration. The device is equipped with screw terminals for secure, stable wiring, further enhancing ease of use and reliability.

Illuminated flush push button for optimal operator feedback. Spring return function for automatic reset and ease of use. SPDT contact system for dual circuit control. High ingress protection (IP66, IP67, IP69, IP69K) against dust, water jets, immersion, and steam cleaning.

Operating temperature range from -25°C to 70°C, suitable for demanding environments. Rugged plastic bezel is double insulated, resistant to liquids, and easy to maintain. Rated for 10A contact current and up to 240V AC voltage.

Mechanical durability of 10 million cycles to ensure long-term reliability.

This Harmony XB5 push button switch complies with multiple international standards including EN/IEC 60947, UL 508, and CSA C22.2, validating its suitability for global industrial applications. Its unmarked legend and orange LED make it ideal for emergency stop functions, resetting tasks, and critical operator feedback controls in automotive, manufacturing, commercial, and food processing environments.

Installation is quick and secure thanks to panel mounting and screw terminal connections. With a width of 3 mm, length of 57 mm, and height of 42 mm, it fits comfortably within most control panels. The improved insulation, robust sealing, and high durability make it a prime choice for industries with regular cleaning, environmental exposure, or frequent operator interactions.

Main use cases include factory automation control panels, emergency stop stations, commercial unit operations, and safety systems in food processing or automotive sectors. Enclosure protection ensures the switch remains functional under industrial cleaning, heavy dust, or wet conditions. It is also repairable by the end user for added sustainability.
