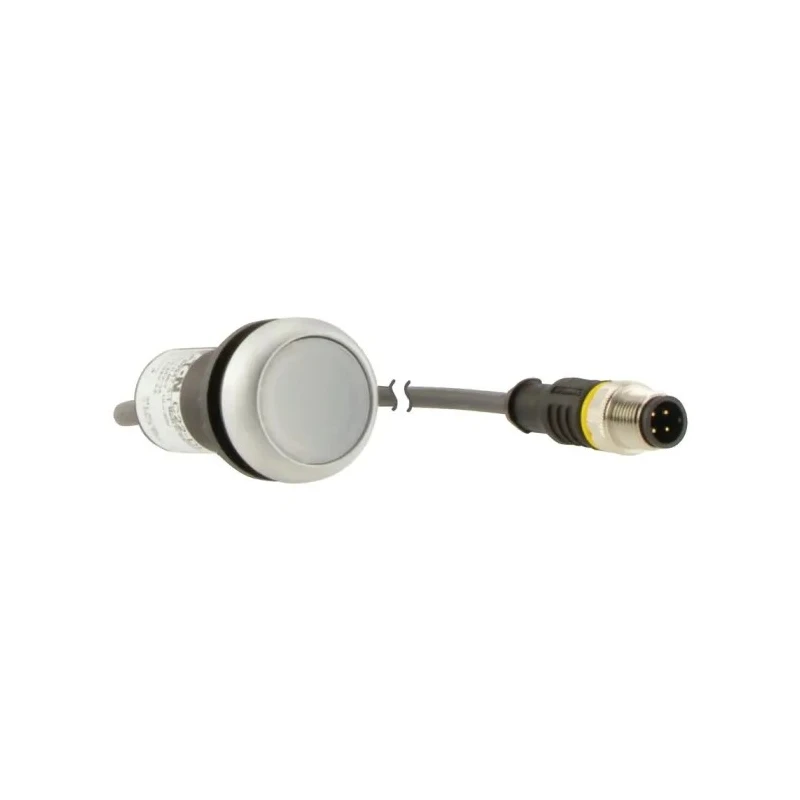

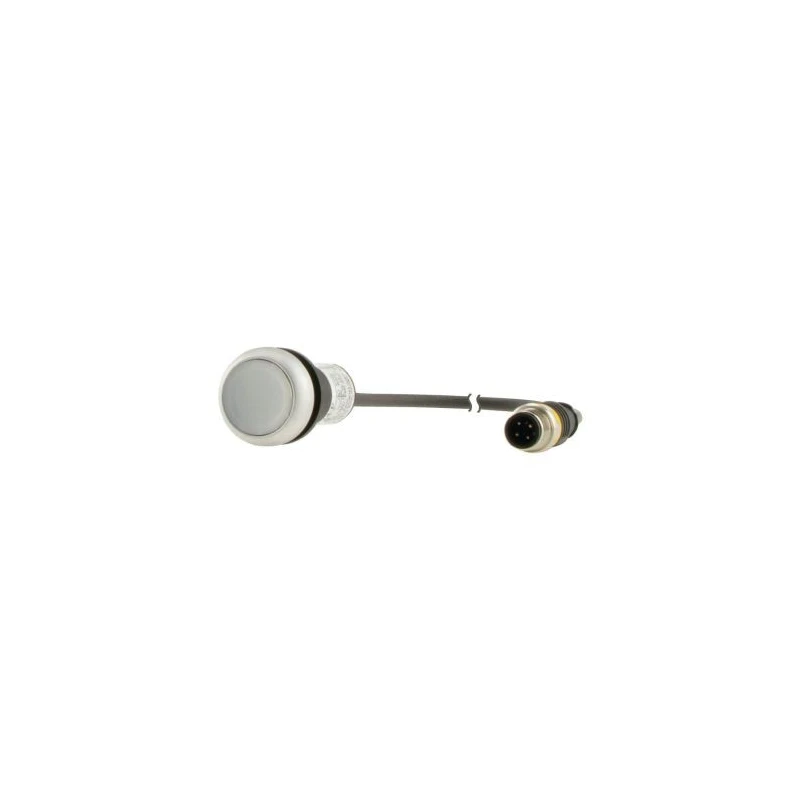

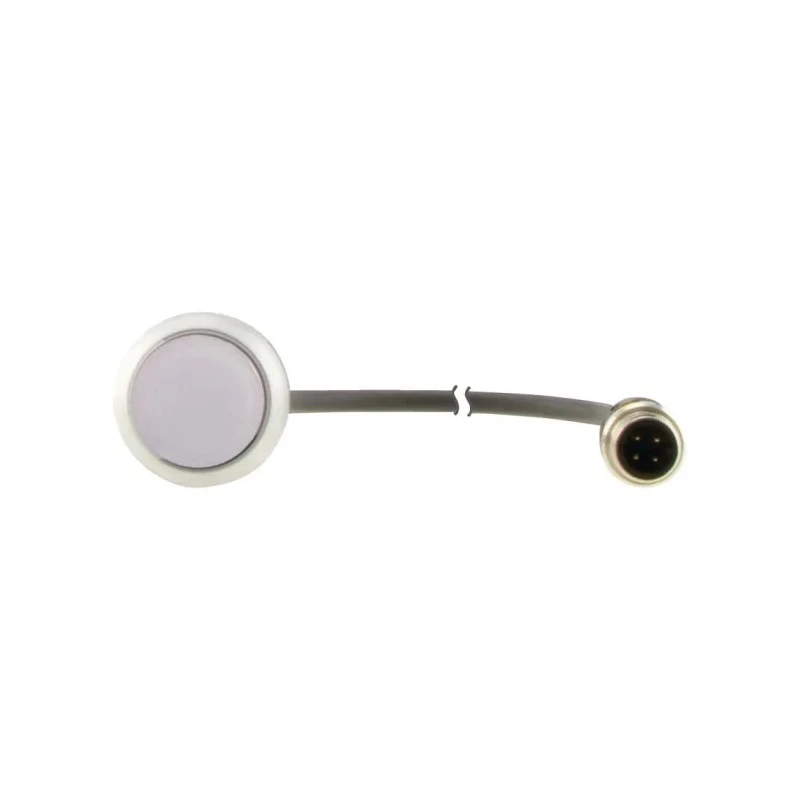

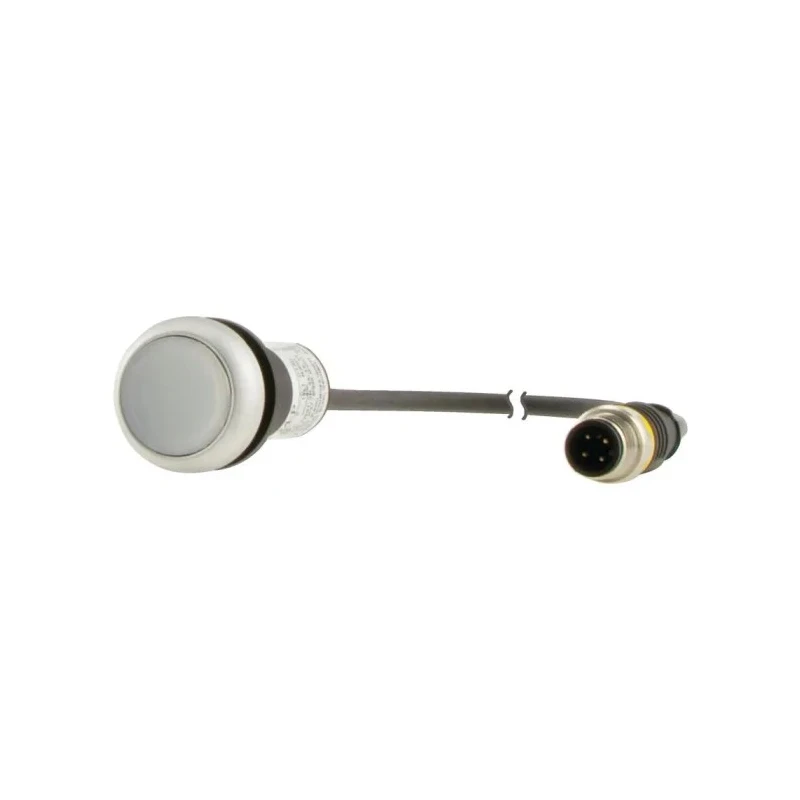

Eaton C22 Series Illuminated Push Button Actuator Panel Mount 22 mm White IP67 IP69K 24V 1 NO 181627 C22-DL-W-K10-24-P3

Eaton's C22 Series illuminated push button actuator, model 181627 C22-DL-W-K10-24-P3, is engineered for demanding industrial and electrical control applications requiring robust performance and high visibility. With its panel mount design and 22 mm cutout diameter, this unit facilitates seamless integration into control panels, machinery interfaces, and electronic circuits.

Featuring a round, white, illuminated momentary actuator, the push button ensures clear user feedback while supporting reliable machine and equipment operation. The plastic construction provides both longevity and mechanical strength, while the ergonomic round shape accommodates intense operational cycles. The actuator complies with stringent IP67 and IP69K ratings for resistance against dust, water, and high-pressure washdowns, making it suitable for indoor or outdoor industrial environments.

Its 1 Normally Open (NO) contact configuration makes the push button ideal for activating or deactivating connections in control systems, while the screw terminal type enables secure electrical connections during both initial installation and routine maintenance. Operating safely at 24V AC/DC, the illuminated actuator delivers up to 100,000 hours of LED visibility, reducing downtime and maintenance costs.

Designed to withstand challenging environmental conditions, the C22 series operates reliably between -25°C and 70°C. This actuator meets multiple international standards, ensuring quality and compatibility - CE, UL, VDE 0660, IEC/EN0947-5-1, and CSA. Applications include automation panels, machine operation controls, electronic control stations, outdoor and indoor equipment requiring momentary switches with visual indication.

Designed for easy panel mounting with a 22 mm cutout diameter. Illuminated white momentary push button provides clear visual indication. Rated IP67 and IP69K for excellent resistance to dust and water ingress. Plastic body and push button ensures durability and reliable performance.

1 Normally Open contact configuration suitable for control circuits. Round button style offers ergonomic operation in industrial environments. Screw terminal connection simplifies installation and maintenance. Works efficiently in wide temperature range from -25°C to 70°C.

Complies with CE, UL, VDE 0660, IEC/EN0947-5-1, CSA standards.

This actuator suits industrial automation systems, manufacturing equipment, machinery control panels, outdoor installations, and laboratory control interfaces. Browse the Eaton C22 Series and Push Button Switches category on EnvMart for other industrial-grade actuators and electrical control solutions.
