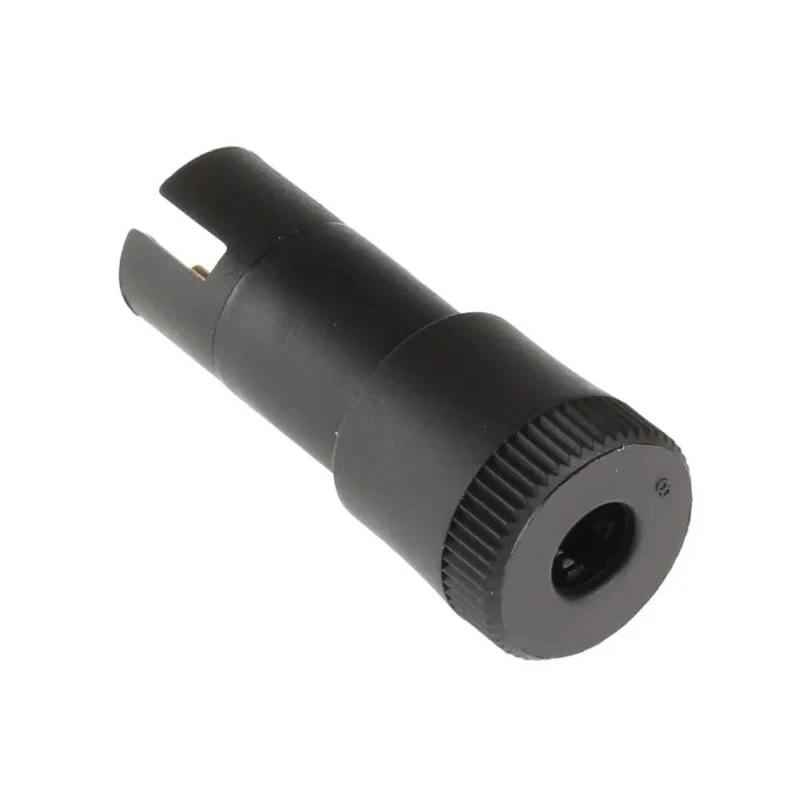

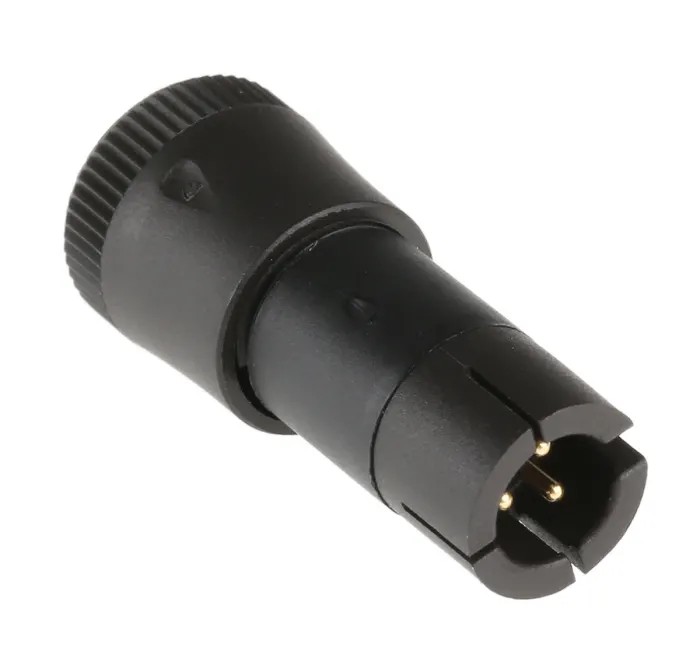

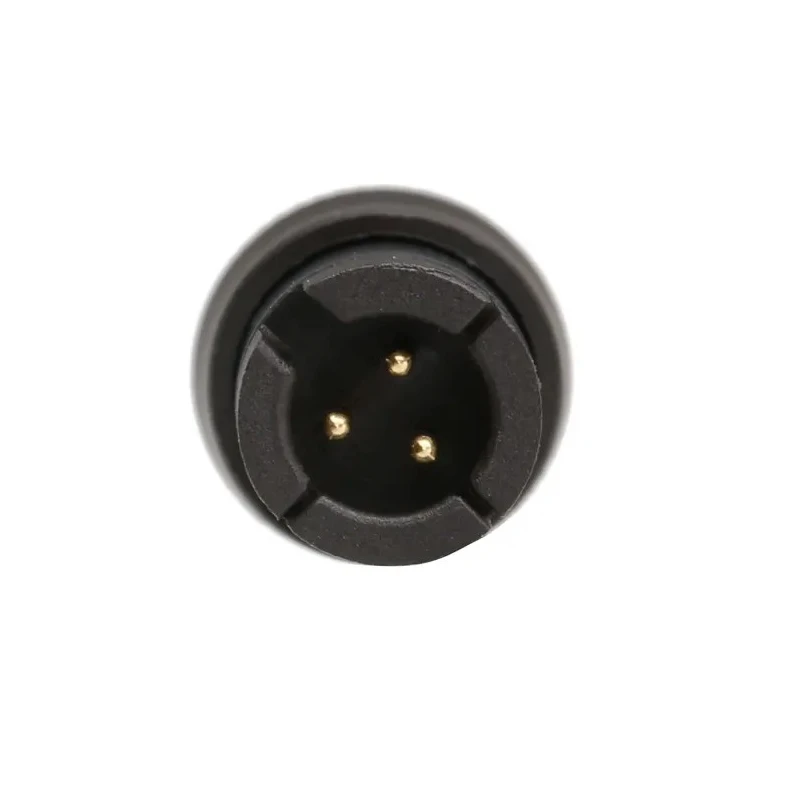

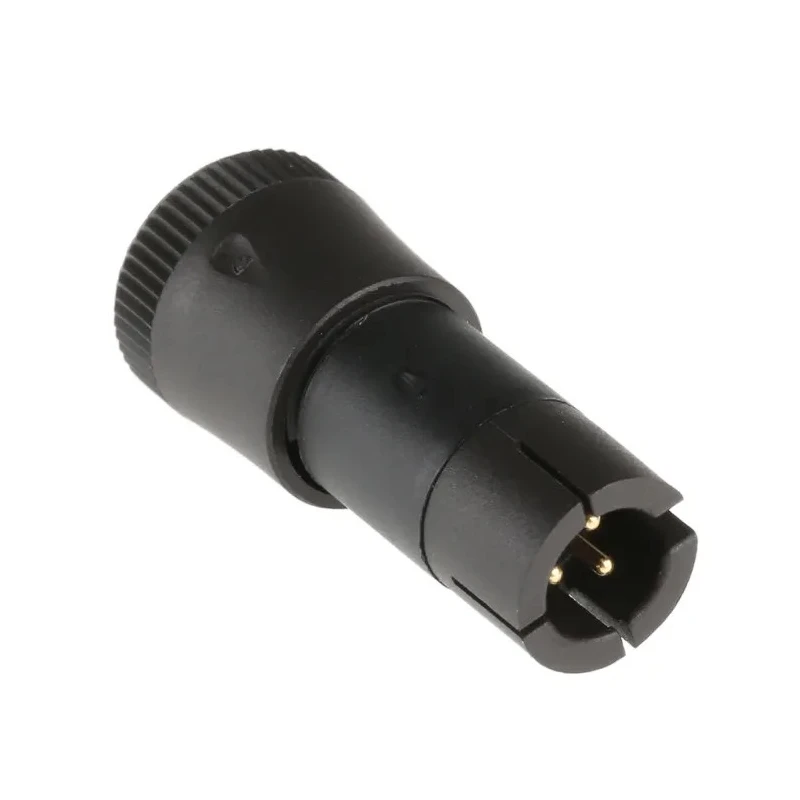

binder Circular Connector 3 Contacts Subminiature Plug, Male, Cable Mount, IP40, 3A 60V Polyamide 719 Series 09-9747-70-03
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 60.0V |
| Brand | binder |
| Orientation | Straight |
| Current | 3A |
| IP Rating | IP40 |
| Mount Type | Cable |
| Housing Material | Polyamide |
| Contact Material | Brass |
| Series | 719 |
| Termination Type | Solder |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -25°C |
| Pole Format | 3 |
| Contact Plating | Gold |
| Number of Contacts | 3 |
| Contact Gender | Male |
| Shell Size | 8 mm |
| Mating Type | Snap-In |
| Connector Size | Subminiature |
| Plug/Socket | Plug |
Key Features
- Compact subminiature connector designed for cable mounting.
- Three gold-plated brass contacts provide reliable conductivity for low-power circuits.
- Straight plug configuration with snap-in mating offers secure engagement.
- Rated for 3A current and 60V; ideal for sensor cabling and signal transmission.
- Polyamide housing delivers excellent insulation and mechanical durability.
- Operating temperature range from -25°C to 70°C for versatile environments.
- Solder termination ensures robust and permanent cable connections.
- IP40 ingress protection against solid objects for industrial usage.
Product Description
binder 09-9747-70-03 Circular Connector, part of the 719 Series, offers a robust solution for cable-mounted electrical connections in industrial environments. This subminiature plug features three gold-plated brass contacts engineered to deliver reliable, low-resistance conductivity for signal and low-power transmission. The straight male configuration with snap-in mating simplifies installation and ensures a secure electrical link, eliminating the need for threaded coupling mechanisms.
Designed for cable connection, the connector supports a current of up to 3A and voltage up to 60V, making it suitable for sensor cabling, actuator interfaces, and control panel wiring. The polyamide housing offers outstanding structural integrity and electrical insulation, enabling safe operation across a temperature range of -25°C to 70°C. IP40 ingress protection effectively prevents solid particles from entering the shell, maintaining secure and durable connections in industrial and laboratory settings.
Solder termination supports a permanent, stable connection method, ideal for environments requiring high reliability. The connector’s compact 8 mm shell diameter enables tight panel layouts and efficient cable routing, especially in automation and test equipment where space optimization is crucial. The gold-plated contacts ensure lasting performance with minimal contact resistance and enhanced protection against oxidation, ideal for critical instrumentation and measurement rigs.
Three contact positions for signal and low-current applications. Snap-in mating type allows fast, tool-free installation and reliable locking. Operating range extends from -25°C to 70°C, adapting to demanding conditions.
Polyamide construction balances insulation and mechanical strength. IP40 rated for protection against particles larger than 1 mm. Solder termination provides reliable and vibration-resistant cable attachment.
This connector is ideal for applications such as sensor wiring in factory automation, compact actuators, control-panel circuits, and testing setups that require secure, precise connections. It is commonly used in manufacturing, laboratory automation, industrial equipment, and measurement instrumentation.
Explore more binder industrial connectors and cable solutions in the Industrial Circular Connector category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a maximum current of 3A and a voltage of 60V, making it suitable for low-power applications.
It features a solder termination type, which provides a robust and permanent connection for cable attachment.
The connector has an IP40 ingress protection rating, which prevents the entry of solid objects larger than 1 mm.
The housing is made of polyamide, while the contacts are constructed from brass and plated with gold for enhanced conductivity.
It operates effectively within a temperature range of -25°C to 70°C, allowing for use in various environments.
The shell diameter of this connector is 8 mm, making it compact for tight panel layouts.
This model features three contacts, designed for signal and low-current applications.
It uses a snap-in mating type, which allows for fast, tool-free installation and reliable locking.
It is ideal for sensor wiring, actuator interfaces, control panel circuits, and testing setups in industrial environments.
Yes, this model is specifically designed for cable mounting, facilitating secure electrical connections in various setups.
This connector is part of the binder 719 series, known for its compact and reliable industrial connections.
The connector has a straight orientation, which simplifies installation in various configurations.
