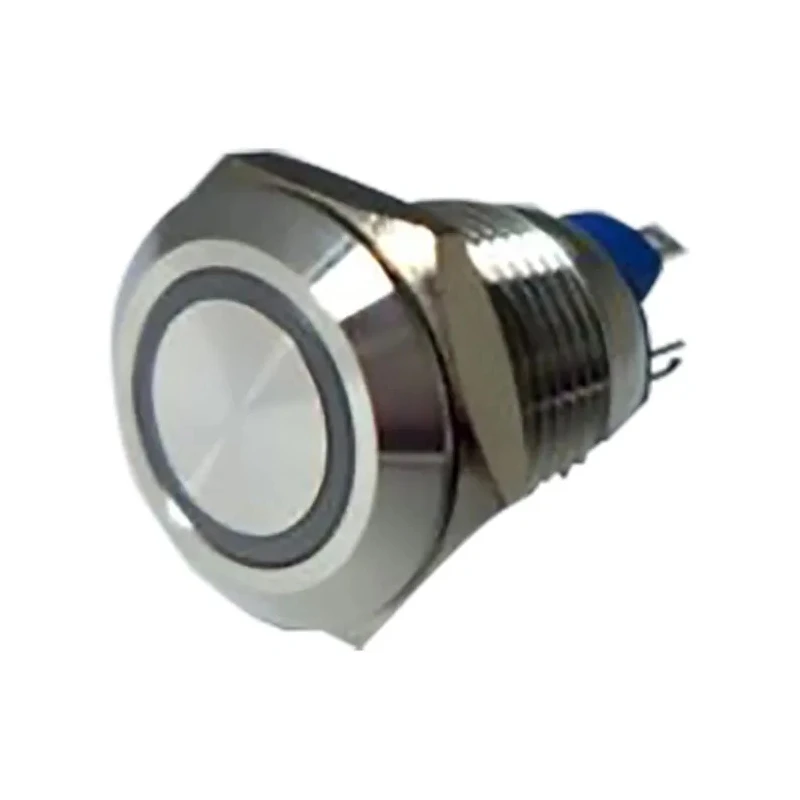

RS PRO AV Series Illuminated Push Button Switch, Momentary, Panel Mount, 12 mm Cutout, SPST, Green LED, IP65, IP67 111-6528

Name: RS PRO AV Series Illuminated Push Button Switch, Momentary, Panel Mount, 12 mm Cutout, SPST, Green LED, IP65, IP67 111-6528
Brand: RS PRO
SKU: 90319
Price: 1576.02 INR
Availability: InStock



Category Push Button Switch Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Brand	RS PRO
Model	111-6528
IP Rating	IP65, IP67
Mount Type	Panel
Series	AV
Maximum Operating Temperature	55°C
Contact Configuration	SPST
Minimum Operating Temperature	-20°C
Panel Cutout Size	12 mm
Terminal type	Quick Connect
Standards/Approvals	RoHS
LED Colour	Green
Switch Operation	Momentary
Actuator Colour	Silver
Contact DC Voltage	36V dc
Actuator Style	Round
Switch Contact Current	15mA

Key Features

Features a silver actuator with flat round shape for easy operation and durability.
Momentary switch operation allows temporary activation as required in control systems.
Integrated green LED illumination for clear indication of switch status.
Panel mount design with 12 mm cutout enables secure installation in a variety of panels.
Single Pole Single Throw (SPST) contact configuration ensures simple circuit control.
Quick-connect terminal type simplifies wiring and maintenance.
IP65 and IP67 protection provides dust-tight and water-resistant performance, suitable for indoor and outdoor use.
Rated 36V DC for contact voltage and 15 mA contact current for low power applications.

Product Description

RS PRO 111-6528 AV Series Illuminated Push Button Switch is engineered for demanding industrial, commercial, and public applications, offering robust performance and long-term reliability. Designed with a flat round silver actuator, this switch provides momentary operation, ideal for applications requiring short-duration activation such as automatic doors, vending machines, security panels, and lift controls.

Equipped with a bright green LED, the switch visually indicates its status, making it easy to confirm operation even in low-light settings. Its single pole single throw (SPST) contact configuration simplifies circuit control, while the quick-connect terminals allow efficient installation and future maintenance.

Silver flat round actuator ensures smooth and durable operation. Momentary switching perfect for transient signals and control interfaces. Green LED illumination enhances visibility and operational feedback. Panel-mount design fits standard 12 mm cutouts, providing versatile integration.

IP65 and IP67 ingress protection delivers dust and water resistance, including short-term immersion, suitable for both outdoor and indoor applications. Vandal-proof IK08 rating offers enhanced durability for use in public spaces and harsh environments.

Rated for 36V DC contact voltage and up to 15mA contact current. Wide operating temperature range from -20°C to 55°C supports use in diverse climates. Quick-connect terminals ensure fast, hassle-free wiring. Compliant with RoHS standards for environmental safety.

Constructed with stainless steel and silver alloy contact material, the switch delivers exceptional conductivity and longevity. Ideal for panel installations in gyms, museums, transportation systems such as trains and trams, or any setting requiring reliable, visible push button control.

Industrial use cases include manufacturing automation, building security panels, commercial HVAC system controls, and vending or access terminals. The switch's vandal resistance and IP ratings make it especially suitable for public installations where reliability and safety are paramount.
