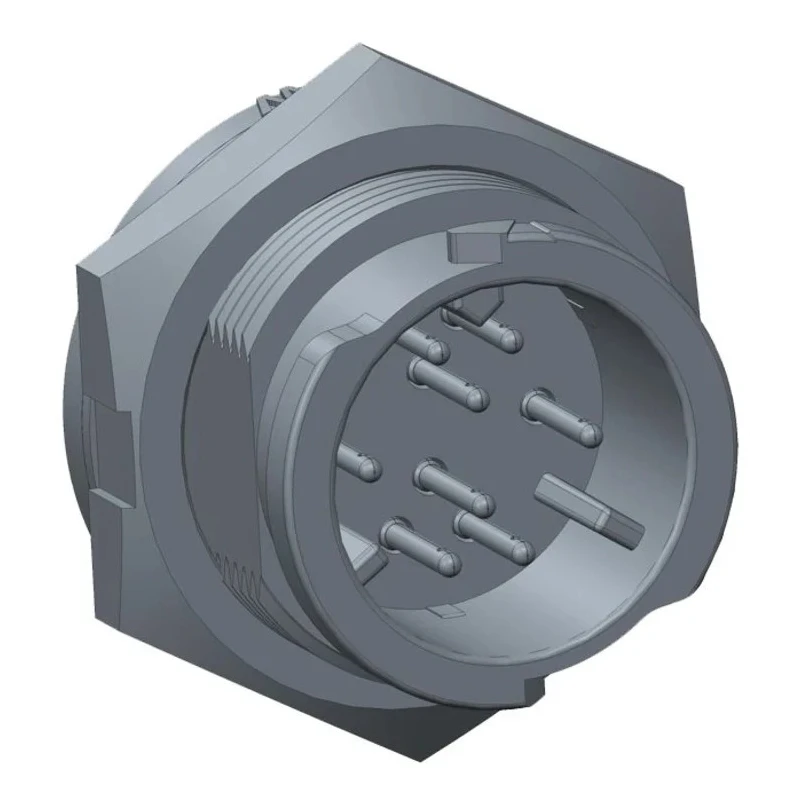

Amphenol Industrial Circular Connector, Panel Mount, 12 Contacts, Plug, Male, IP68, X-LOK Series CD-12PMMS-QC8001
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 300V |
| Brand | Amphenol Industrial |
| Orientation | Straight |
| Current | 5A |
| Model | CD-12PMMS-QC8001 |
| IP Rating | IP68 |
| Mount Type | Panel Mount |
| Housing Material | Glass Filled Polymer, Nylon |
| Contact Material | Copper Alloy |
| Series | X-LOK |
| Termination Type | Plug-In |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Pole Format | 10 |
| Contact Plating | Gold |
| Number of Contacts | 12 |
| Contact Gender | Male |
| Shell Size | 20.6 mm |
| Mating Type | X-Lok |
| Connector Size | Standard |
| Plug/Socket | Plug |
Key Features
- Designed for robust industrial and electronics applications requiring dependable connectivity.
- Features 12 gold-plated copper alloy contacts for high reliability.
- Rated IP68 for excellent water and dust protection.
- Panel mount configuration simplifies installation in enclosures or equipment racks.
- Plug configuration with male contacts, suitable for mating with corresponding female sockets.
- Supports electrical currents up to 5A and voltages up to 300V.
- Housing constructed from glass filled polymer and nylon for durability.
- Operating temperature range of -40°C to 105°C for diverse environmental conditions.
Product Description
Amphenol Industrial CD-12PMMS-QC8001 Circular Connector is engineered for high-performance connectivity in demanding industrial and electronic environments. This connector features a panel mount design, making it ideal for fixed installations within control panels, electrical cabinets, and machinery housings. With 12 gold-plated copper alloy contacts, it ensures superior signal integrity and reliable current transmission, supporting up to 5A and 300V for versatile power or signal applications.
The male plug configuration facilitates easy integration with standard female sockets, allowing straightforward assembly and disassembly during maintenance or equipment upgrades. Its IP68 environmental rating provides robust protection against water, dust, and contaminants, making it suitable for outdoor applications, factory automation, and harsh conditions.
Durability is enhanced by a glass filled polymer and nylon housing, offering resistance to mechanical stresses and chemical exposure. The connector's temperature resilience, from -40°C to 105°C, allows use in extreme operating conditions, ensuring performance stability year-round. Straight orientation and plug-in termination simplify wiring and installation, expediting productivity in production or maintenance workflows.
The X-LOK Series incorporates innovative mating mechanisms for secure locking, quick connection, and reliable retention. This reduces downtime and prevents accidental disconnects in critical industrial setups.
Features 12 gold-plated contacts for optimal conductivity and corrosion resistance. Supports electrical currents up to 5A and voltages up to 300V. IP68 rating for waterproof and dustproof usage in industrial, laboratory, and field operations.
Panel mount design suitable for equipment, enclosures, and industrial machines. Wide operating temperature range from -40°C to 105°C. Glass filled polymer, nylon housing ensures longevity and robustness. Plug-in termination allows quick and secure assembly.
X-LOK Series locking ensures vibration-proof connections.
Typical applications include industrial automation, process control systems, laboratory equipment, outdoor electronics, power distribution panels, and manufacturing machinery. This connector is especially suitable where ruggedness and reliable connectivity are paramount.
Discover more industrial connectors from Amphenol Industrial and browse connectors under the "Industrial Circular Connector" category on EnvMart for additional options and accessories to complete your wiring and connection needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this connector is 300V.
This model supports electrical currents up to 5A.
It has an IP68 rating, providing excellent protection against water and dust.
The housing is constructed from glass filled polymer and nylon, ensuring durability.
The operating temperature range is from -40°C to 105°C.
This connector features 12 gold-plated contacts for high reliability.
It supports a panel mount configuration, simplifying installation in various applications.
The termination type is plug-in, allowing for quick and secure assembly.
The orientation of this connector is straight.
Typical applications include industrial automation, process control systems, and outdoor electronics.
The contacts are made of copper alloy, providing optimal conductivity.
It features the X-LOK series locking mechanism for secure and vibration-proof connections.
