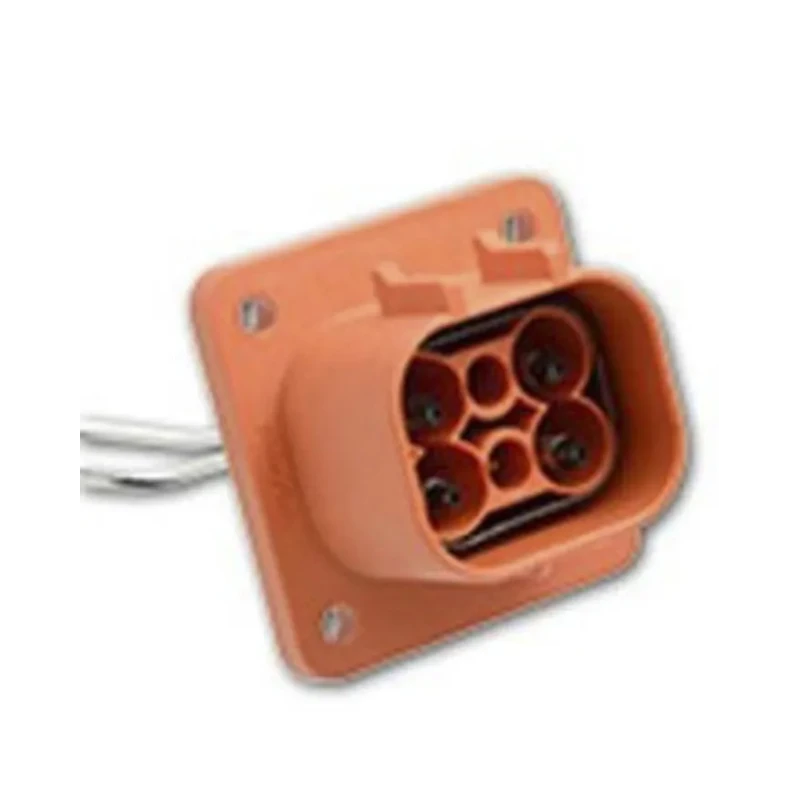

Amphenol Industrial EPower Lite RADSOK Receptacle with HVIL EV Connector Female 70A 800V Panel ELR4A03 / C10-737487-4AP3
Specifications
| Country of Origin | China |
|---|---|
| Brand | Amphenol Industrial |
| Colour | Orange |
| Orientation | Straight |
| Current | 70A |
| Height | 48mm |
| Model | ELR4A03 / C10-737487-4AP3 |
| Depth | 44.5mm |
| IP Rating | IP67 |
| Connector Type | RADSOK Receptacle with HVIL |
| Width | 48mm |
| Mount Type | Panel Mount |
| Housing Material | Plastic |
| Series | Epower Lite |
| Waterproof | IP67 |
| Durability | 100 mating cycles |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Pin Diameter | 3.6mm |
| Number of Rows | 2 |
| Wire size | 6mm² |
| Operating Voltage | 800V |
| For Use With | 4 Position ePower-Lite Plug with HVIL |
| Standards/Approvals | IEC 60529, UL 94 V-0 |
| Number of Contacts | 4 |
| Contact Gender | Male |
| Connector Gender | Female |
| Better World Claim | Renewable Energy Solution |
| Key Type | Type A |
| Flammability | UL 94V-0 |
| Touch Proof | IEC 60529 |
Key Features
- Designed for hybrid and electric vehicle power distribution applications.
- Rated for 70A current and high voltage 800V operation in demanding environments.
- Features a straight orientation and field installable, repairable shell for easy maintenance.
- Panel mount configuration with four contacts and two rows ensures secure connection.
- Dielectric protection and CPA prevent mis-mating and offer touch-proof reliability.
- IP67 waterproof rating and UL 94 V-0 flammability for enhanced safety and durability.
- Crimp termination and plastic housing with 6mm² wire compatibility.
- IEC 60529 and UL 94 V-0 standards compliance for automotive industry use.
Product Description
The Amphenol Industrial ELR4A03 / C10-737487-4AP3 is a premium EV connector belonging to the EPower Lite series. It is specifically engineered for hybrid and electric vehicle applications, providing robust power delivery and safety features required in automotive electrical systems. This RADSOK receptacle with HVIL (High Voltage Interlock Loop) is designed for female panel mounting, supporting up to 70A current at 800V.
The connector incorporates advanced RADSOK technology, offering low contact resistance and high amperage capability, which translates to lower temperature rise and voltage drop across the connection. Its compact, lightweight design and straight orientation make it ideal for installation in tight spaces within EV power control units, battery packs, or charging stations.
Build quality is highlighted by an IP67 waterproof rating, UL 94 V-0 flammability, and touch-proof dielectric protection to meet stringent automotive safety and reliability standards. The panel mount format with four contacts and two rows ensures high-density, secure cable management. The plastic housing is durable and resistant to environmental stresses, and the crimp termination allows fast, secure wire attachment, compatible with 6mm² wires.
Mis-mating and incorrect assembly are prevented by a correct key (Type A) and CPA (Connector Position Assurance) mechanism, which is essential for field installations and long-term maintenance. The operating temperature range from -40°C to 125°C supports usage in both cold and hot climates, further broadening possible deployment.
Applications include electric vehicle power distribution, battery pack connections, high-voltage control circuits, and renewable energy systems where robust connectivity is a must. Automotive manufacturers, EV assembly plants, and integrators will benefit from the modularity and performance of this connector.
Industry compliance is assured, with IEC 60529 and UL 94 V-0 certifications confirming its suitability for automotive and industrial use. The orange color housing offers visibility and safety marking typical in high-voltage component design. The product is manufactured in China and is intended for integration with the 4-position ePower-Lite plug with HVIL.
Discover more Amphenol Industrial automotive connectors and related solutions in the 'Automotive Electrical Connector' category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a maximum current of 70A.
The operating voltage for this connector is 800V.
It has an IP67 waterproof rating, ensuring protection against dust and immersion in water.
The dimensions of this model are 48mm in height, 48mm in width, and 44.5mm in depth.
This unit employs a crimp termination type for secure wire attachment.
The operating temperature range is from -40°C to 125°C.
This model features four contacts arranged in two rows.
The housing is made of plastic, which is resistant to environmental stresses.
It meets the UL 94 V-0 flammability standard, indicating good fire resistance.
It is designed for use with the 4-position ePower-Lite plug with HVIL.
It includes dielectric protection and a Connector Position Assurance (CPA) mechanism to prevent mis-mating.
Yes, it is designed as a renewable energy solution, suitable for high-voltage control circuits and battery pack connections.
