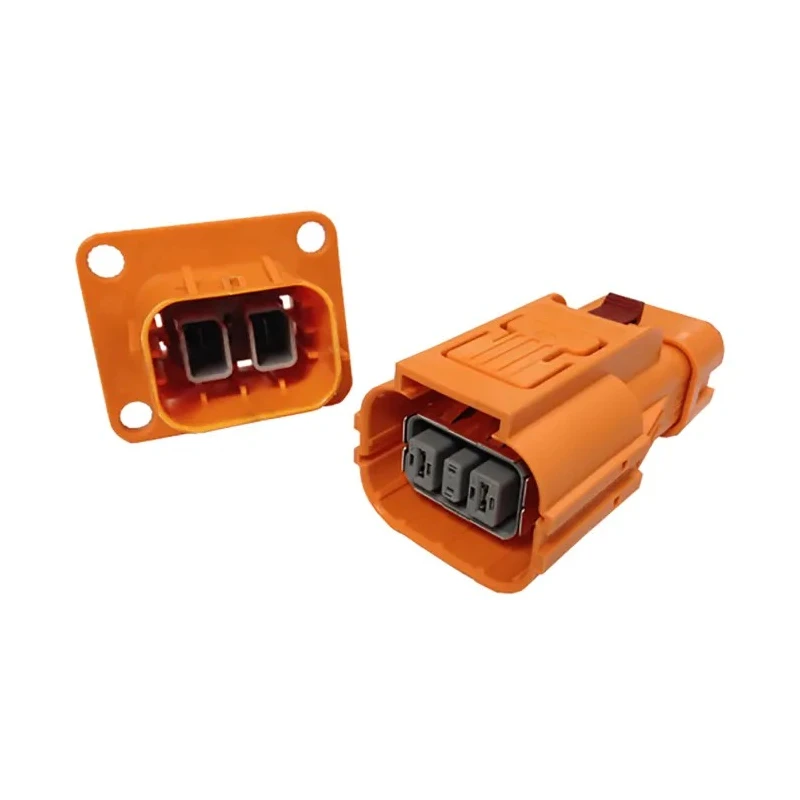

Amphenol Industrial HVSL630 Type EV Connector Male, 40A, 1000V, 2 Contacts, Crimp Termination
Specifications
| Country of Origin | China |
|---|---|
| Brand | Amphenol Industrial |
| Colour | Orange |
| Orientation | Straight |
| Current | 40A |
| Height | 82mm |
| Model | HVSL630 |
| Depth | 58mm |
| IP Rating | IP69K, IP2XB, IP67 |
| Connector Type | Type EV |
| Width | 113mm |
| Mount Type | Box Mount |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | HVSL630 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Pin Diameter | 5.8mm |
| Number of Rows | 1 |
| Operating Voltage | 1000V |
| For Use With | High Power Connector System |
| Standards/Approvals | EN 60664-1 |
| Contact Plating | Gold, Silver |
| Number of Contacts | 2 |
| Contact Gender | Female |
| Connector Gender | Male |
| Better World Claim | Renewable Energy Solution |
| Key Type | Type A |
Key Features
- Designed for electric vehicle and xEV power applications.
- Rated up to 40A current and 1000V operating voltage.
- Male connector with two contact positions and crimp termination.
- Integrated HVIL and touch-proof safety features.
- Supports 4 - 6mm² cables for DC-DC, air conditioner, and xEV devices.
- Thermoplastic housing ensures durability and insulation.
- Copper alloy contacts plated with gold or silver for conductivity.
- Operating temperature range from -40°C to 125°C.
Product Description
Amphenol Industrial HVSL630022A106 HVSL630 Type EV Connector is engineered for demanding electric vehicle (EV) and xEV power applications, offering secure and efficient power and signal interconnections. The connector is rated for a nominal current of 40A and an operating voltage up to 1000V, making it suitable for high-power circuits commonly found in EV systems.
This male connector features two contact positions with crimp termination, accommodating 4 - 6mm² cables. Its robust thermoplastic housing ensures insulation and mechanical strength, while copper alloy contacts - plated with gold or silver - deliver reliable conductivity and long-term corrosion resistance. The design incorporates integrated HVIL (High Voltage Interlock Loop) to improve safety and touch-proof operation. The latch mechanism can be activated with either a tool or thumb, simplifying installation and service without the need for special tools.
Engineered for environmental resilience, the HVSL630 connector maintains dependable performance over a broad temperature range from -40°C to 125°C. The enclosure achieves IP69K, IP2XB, and IP67 ratings, safeguarding the internal components against water ingress and harsh conditions in automotive, commercial, or industrial environments.
Standards compliance includes EN 60664-1, supporting industry requirements for insulation coordination. The connector’s box mount and straight orientation make it easy to integrate within power distribution systems and related EV equipment. HVSL630 series connectors are specially designed for DC-DC converters, air conditioners, and other high-voltage xEV systems.
The orange color provides clear identification for high-voltage connections, and the contact plating options further enhance performance under demanding load cycles. Multiple coding positions and CPA (Connector Position Assurance) are available for secure mating. This solution helps manufacturers and integrators meet renewable energy and electric transport requirements where reliability and safety are paramount.
Use cases include industrial EV manufacturing, automotive powertrain integration, renewable energy systems, laboratory setups for EV testing, and commercial environments requiring high-voltage reliable connections.
Browse EnvMart’s full range of Amphenol Industrial connectors and automotive electrical components for advanced power distribution solutions.
Explore more products in our Automotive Electrical Connector category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector is rated for a maximum current of 40A.
It has an operating voltage of up to 1000V.
This model features crimp termination for secure connections.
The connector has dimensions of 113mm in width, 82mm in height, and 58mm in depth.
It operates effectively within a temperature range of -40°C to 125°C.
The contacts are made from copper alloy and are plated with either gold or silver for enhanced conductivity.
The HVSL630 connector has an IP rating of IP69K, IP2XB, and IP67, indicating its resistance to water and dust ingress.
This model features two contact positions.
The housing is made of thermoplastic, providing insulation and mechanical strength.
It complies with EN 60664-1, which relates to insulation coordination in electrical equipment.
It is designed for high-power applications in electric vehicles, including DC-DC converters and air conditioning systems.
It includes integrated HVIL (High Voltage Interlock Loop) and touch-proof safety features for enhanced user safety.
