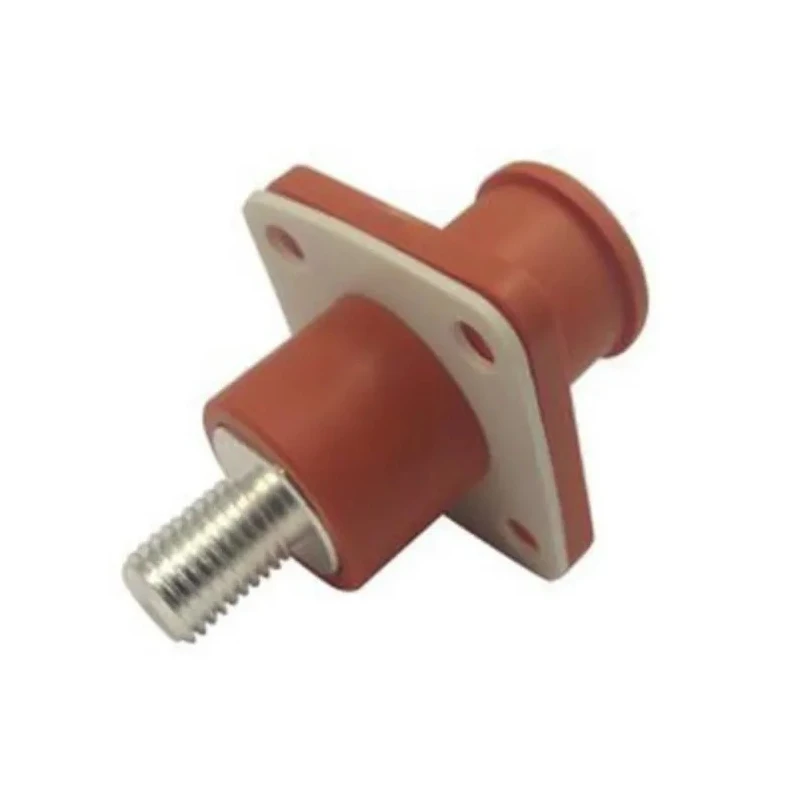

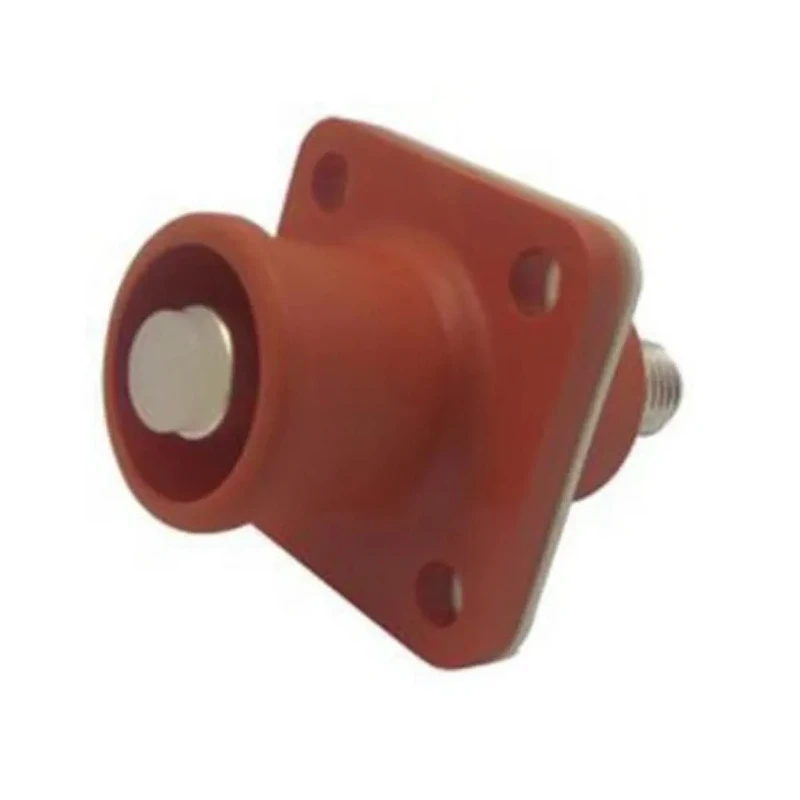

Amphenol Industrial SURLOK PLUS RADSOK EV Connector Female, 200A, 1000V, Panel Mount, Orange SLPIRBTPSO0 / C10-731950-020
Specifications
| Country of Origin | China |
|---|---|
| Brand | Amphenol Industrial |
| Colour | Orange |
| Orientation | Straight |
| Current | 200A |
| Height | 30mm |
| Model | SLPIRBTPSO0 / C10-731950-020 |
| Depth | 46.2mm |
| IP Rating | IP67 |
| Connector Type | RADSOK |
| Width | 30mm |
| Mount Type | Panel Mount |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | SURLOK PLUS |
| Termination Type | Screw |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Pin Diameter | 8mm |
| Number of Rows | 1 |
| Wire size | 35, 50mm² |
| Operating Voltage | 1000V |
| For Use With | SurLok 1-Position Plug |
| Standards/Approvals | UL 94-V0 |
| Number of Contacts | 1 |
| Contact Gender | Male |
| Connector Gender | Female |
| Better World Claim | Renewable Energy Solution |
| Amphenol Industrial, SURLOK PLUS RADSOK EV Connector Female, 200ABrand | Amphenol Industrial |
Key Features
- Capable of handling up to 200A current for demanding EV applications.
- Designed for panel mount installation with straight orientation for streamlined assembly.
- Environmentally sealed with IP67 rating for robust protection against dust and water.
- Features an 8mm pin diameter and supports wire sizes of 35mm² and 50mm².
- Uses Radsok high-conductivity contact technology for reliable electrical performance.
- Operates in temperatures from -40°C to 125°C, suitable for harsh environments.
- Orange thermoplastic housing ensures high visibility and UL 94-V0 flammability rating.
- Ideal for electric vehicle, rail mass transit, process control, energy management and battery systems.
Product Description
Amphenol Industrial SLPIRBTPSO0 / C10-731950-020 SURLOK PLUS RADSOK EV Connector Female is a premium-grade electric vehicle connector engineered for high-current and high-voltage environments. With a maximum current rating of 200A and operating voltage up to 1000V, this connector is purpose-built for demanding automotive and rail transit applications where performance and reliability are paramount.
Featuring SURLOK PLUS Radsok technology, the connector achieves optimal tensile strength and conductivity, providing a secure electrical contact and minimizing resistance. The female connector design ensures proper mating with SurLok 1-position plugs, while its panel mount configuration and straight orientation allow for efficient assembly into control panels, junction boxes, or energy storage enclosures.
Robust environmental sealing to IP67 standard protects against dust ingress and water immersion, making it ideal for outdoor, mobile, or industrial deployment. The housing is constructed from high-quality thermoplastic in bright orange for safety visibility, compliant with UL 94-V0 flammability standards. Copper alloy contacts further enhance electrical performance and chemical resistance.
Wire compatibility is flexible, accepting both 35mm² and 50mm² cables, which allows integration into various electric vehicle architectures, battery management systems, energy storage systems, and heavy equipment. The screw termination design enables quick field installation and ensures lasting mechanical stability. Its 8mm pin diameter facilitates high current transfer and facilitates robust plug mating with keyed anti-mismatch features.
The connector operates reliably in extreme temperature ranges, from -40°C to 125°C, supporting applications in transport, process control, and medical devices. Typical use cases include electric vehicles (EV/HEV), rail mass transit, industrial energy storage, battery management, and process automation where ruggedness and electrical integrity are essential.
By incorporating Radsok contact technology and field installation flexibility, the Amphenol Industrial SURLOK PLUS RADSOK EV Connector Female delivers advanced safety, performance, and integration, making it a preferred choice in high-reliability automotive electrical systems.
For further exploration of EV connectors and related solutions, browse the Automotive Electrical Connector category or the full Amphenol Industrial range on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this connector is 200A, making it suitable for demanding electric vehicle applications.
This model operates at a maximum voltage of 1000V, designed for high-voltage environments.
It has an IP67 rating, providing robust protection against dust and water immersion.
This connector supports wire sizes of 35mm² and 50mm², allowing for flexibility in integration.
The housing is made from thermoplastic, while the contacts are composed of copper alloy, enhancing electrical performance and chemical resistance.
It operates reliably in temperatures ranging from -40°C to 125°C, suitable for harsh environments.
This model features a panel mount configuration, designed for efficient assembly into control panels or junction boxes.
The pin diameter is 8mm, facilitating high current transfer and robust plug mating.
It utilizes a screw termination type, enabling quick field installation and ensuring mechanical stability.
This female connector is designed for use with SurLok 1-position plugs, ensuring proper mating.
The housing is bright orange, ensuring high visibility and compliance with safety standards.
It complies with UL 94-V0 flammability standards, indicating its suitability for various applications.
