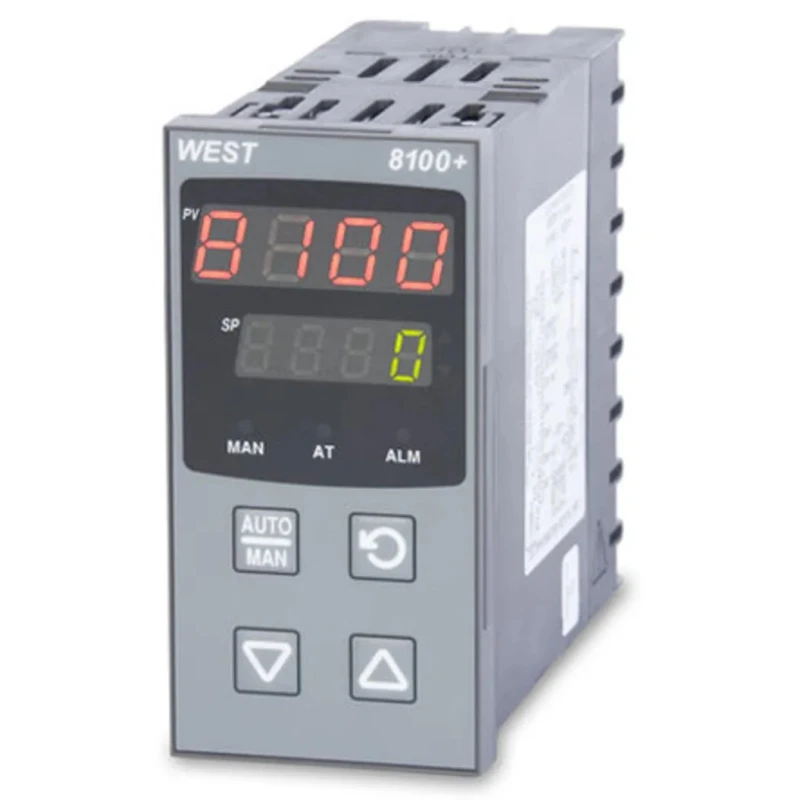

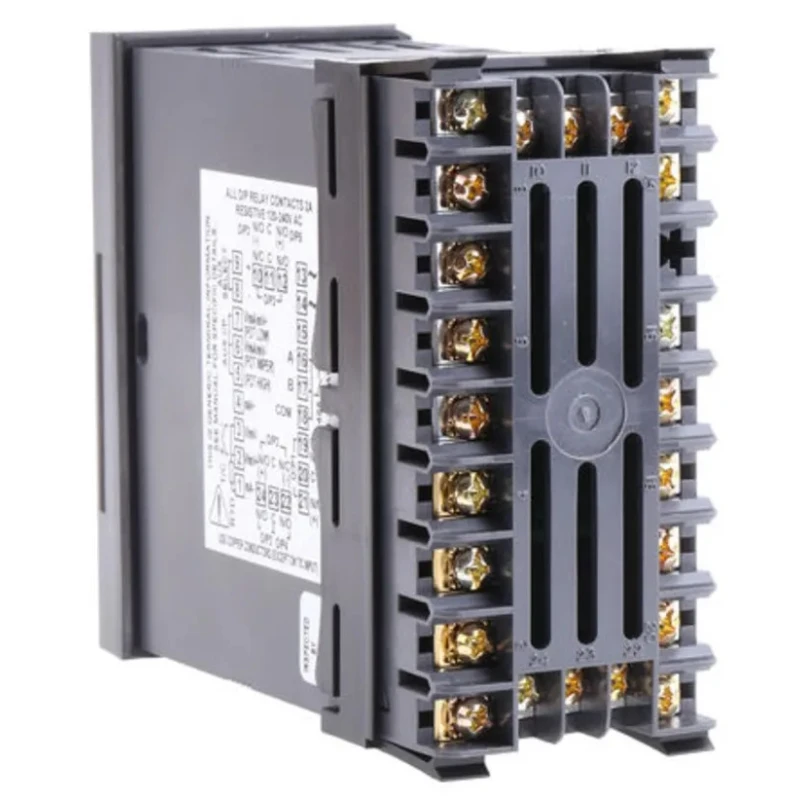

West Instruments Panel Mount PID Temperature Controller, Relay Output, 1 Input, 3 Output, 240V AC P8100-2-1-1-1-0-0-2-0

The West Instruments P8100-2-1-1-1-0-0-2-0 is an advanced panel mount PID temperature controller engineered for industrial process control environments requiring exceptional precision and flexible integration. This controller is designed to deliver reliable temperature management across manufacturing, HVAC, laboratory, and water treatment processes, utilizing PID algorithms for high stability and accuracy.

With a supply voltage range of 100 to 240V AC, the unit accommodates global plant standards, while its relay outputs (three in total) enable versatile connection to heaters, alarms, or auxiliary circuits. The device accepts one thermocouple input, suitable for various process sensor types, and offers a dual 4-digit LED display for crisp, real-time temperature monitoring.

The PID controller is built for robust panel mounting, featuring dimensions of 110 mm length, 96 mm width, and 100 mm panel depth, ensuring streamlined installation in control cabinets. The unit is certified to IP66 and IP20 protection standards, providing resistance to water, dust, and industrial contaminants.

Key operational features include adjustable hysteresis, dual setpoints with optional remote selection, and expanded operator control modes. User-selectable plug-and-play output cards, jumper-less input configuration, and remote setpoint inputs simplify installation, minimize errors, and facilitate rapid commissioning in demanding industrial environments.

Backward compatibility ensures easy integration into existing panel cut-outs and terminal wiring. Modular plug-in output modules allow bespoke configuration to suit unique application needs. Enhanced operator/HMI menu structure and improved communication speeds enable more secure and user-friendly operation, while PC-based windows configuration software further streamlines setup and diagnostics.

The controller's auxiliary power supply (24W) ensures stable operation, and features such as process and loop alarms, customizable display colors, and advanced security options reinforce its suitability for critical industrial processes. Maximum current handling is 2A, supporting high load switching, and maximum voltage limits to 280V ensure compatibility with a wide array of mains supplies.

Typical applications include process automation in chemical, pharmaceutical, food, and laboratory sectors, industrial manufacturing, environmental controls, and water treatment plants.

For engineers seeking a reliable, flexible, and feature-rich PID controller, the West Instruments P8100-2-1-1-1-0-0-2-0 offers outstanding performance, efficient operation, and streamlined integration. Explore more specialized Temperature Controllers and advanced process control solutions from West Instruments in the EnvMart industrial catalog.
