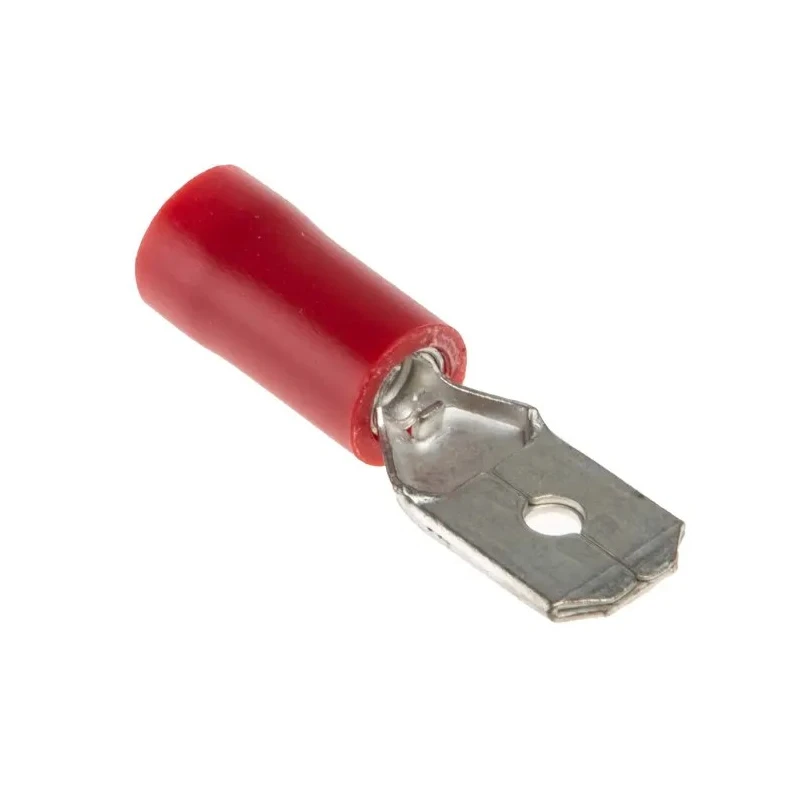

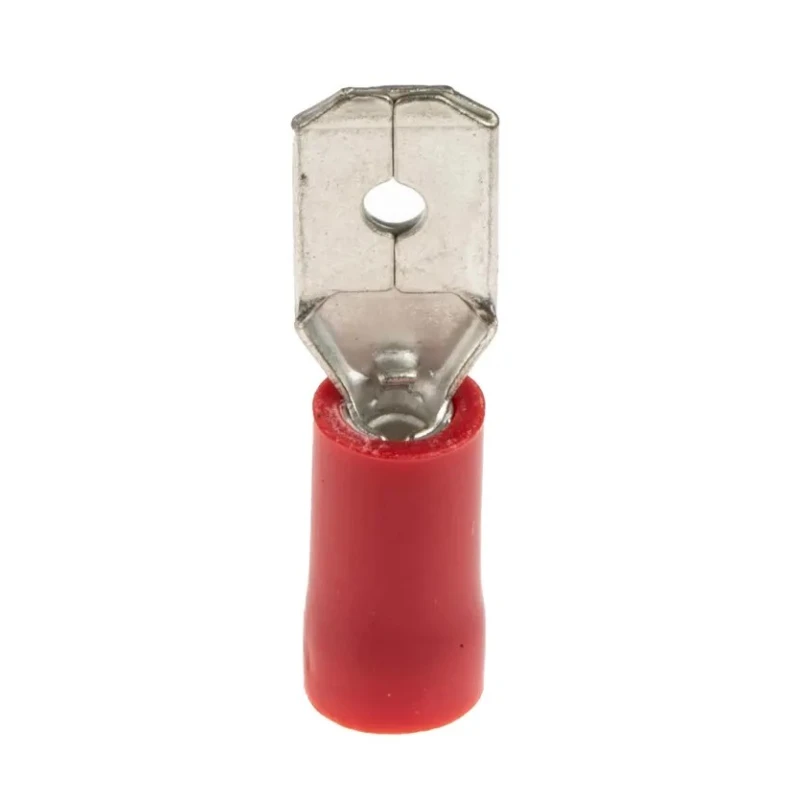

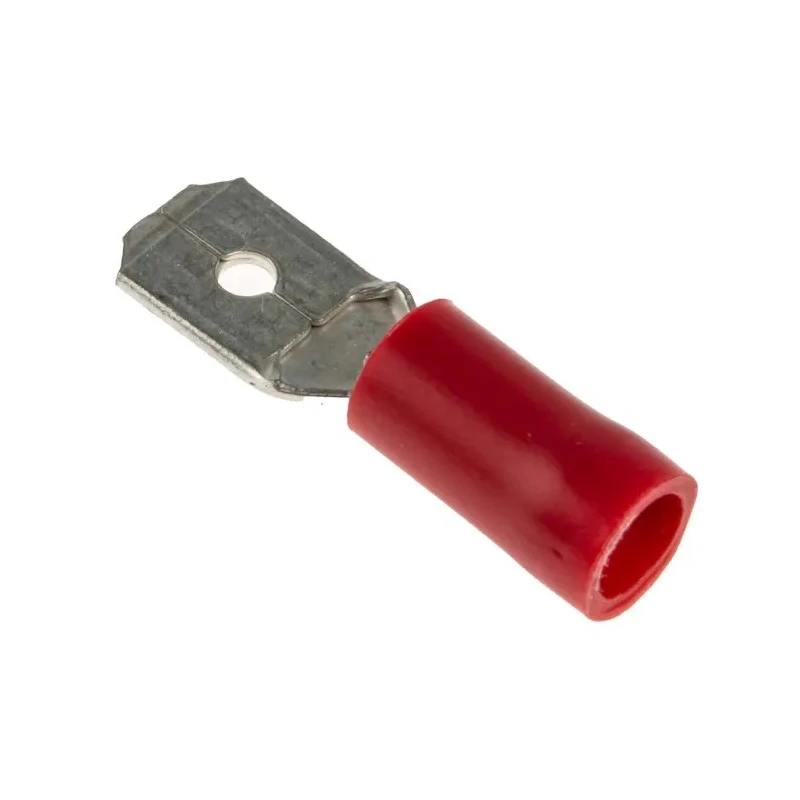

RS PRO Red Insulated Male Spade Connector, Crimp, 6.35 x 0.8 mm Tab, 22 AWG to 16 AWG, Brass, Vinyl Angled 534-323
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Colour | Red |
| Orientation | Angled |
| Model | 534-323 |
| Gender | Male |
| Insulation | Insulated |
| Overall Length | 21mm |
| Contact Material | Brass |
| Series | RS PRO |
| Termination Type | Crimp |
| Insulation Material | Vinyl |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Tab Width | 6.35mm |
| Tab Thickness | 0.8mm |
| Tab Size | 6.35 x 0.8 mm |
| CRIMP CONNS-BLADE 0.25Brand | NEUTRAL |
Key Features
- Crimp termination type for secure and reliable wire connection.
- Male spade connector with angled orientation and fully insulated red vinyl cover.
- Accommodates wire sizes from 22 AWG to 16 AWG or 0.5 mm² to 1.5 mm².
- Tab dimensions of 6.35 mm width and 0.8 mm thickness for standard electrical compatibility.
- Brass contact with tin plating for optimal conductivity and corrosion resistance.
- Double crimp design with copper sleeved barrel for strength and robust joint.
- Funnelled insulation design simplifies wire insertion and ensures safe assembly.
- Ideal for machinery, electrical equipment, vehicles, appliances, and workshop wiring.
Product Description
RS PRO 534-323 is a red insulated male spade connector designed for quick and reliable crimped wire connections in electrical circuits. With a tab size of 6.35 x 0.8 mm, this connector is compatible with wire sizes ranging from 22 AWG to 16 AWG (0.5 mm² to 1.5 mm²). The angled male design and fully insulated vinyl cover enable safe handling and help prevent accidental shorts or electrical shocks in both industrial and consumer applications.
Constructed with a brass contact plated in tin, the connector delivers excellent conductivity and resistance to corrosion for lasting performance. The insulation is made of vibrant red vinyl, suitable for color-coding circuits and matching wire sizes. The double crimp feature, including an internal copper sleeve, provides a robust crimp joint, ensuring mechanical integrity and stable connections even in demanding environments.
Its funnelled flared insulation design facilitates simple wire insertion, making installation efficient and reducing the risk of improper connections. This connector is especially useful where quick disconnect or reconnection of components is required, such as in machinery, home appliances, automotive wiring harnesses, computers, and electrical panels.
RS PRO spade connectors are widely used by technicians, electricians, and hobbyists for projects ranging from assembly lines and workshop wiring to household repairs and electronic device maintenance. The connectors are color-coded according to the wire size they accept, simplifying selection and reducing installation errors. Typical applications include industrial manufacturing, maintenance, repair operations, automotive electrical systems, and custom electronics builds.
Product highlights include crimp termination, male spade, 21 mm overall length, angled orientation, red insulated vinyl cover, and robust brass contacts. The series is recognized for reliability and ease of use in busy technical environments.
Browse more Spade Connectors, crimp terminals, or RS PRO electrical components in the Electronics & Electricals category at EnvMart for industrial and commercial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a crimp termination type for secure and reliable wire connections.
It can accommodate wire sizes ranging from 22 AWG to 16 AWG, or 0.5 mm² to 1.5 mm².
The tab dimensions are 6.35 mm in width and 0.8 mm in thickness.
The contact is made from brass and is plated with tin for optimal conductivity and corrosion resistance.
The overall length of this unit is 21 mm.
It features an angled orientation for ease of use in tight spaces.
The insulation is made of vinyl, providing full insulation for safe handling.
The funnelled insulation design simplifies wire insertion, making installation efficient and reducing the risk of improper connections.
Typical applications include machinery, electrical equipment, vehicles, appliances, and workshop wiring.
This connector is a male spade connector.
The double crimp design, including an internal copper sleeve, provides a robust crimp joint for mechanical integrity and stable connections.
The country of origin for this connector is Taiwan.
