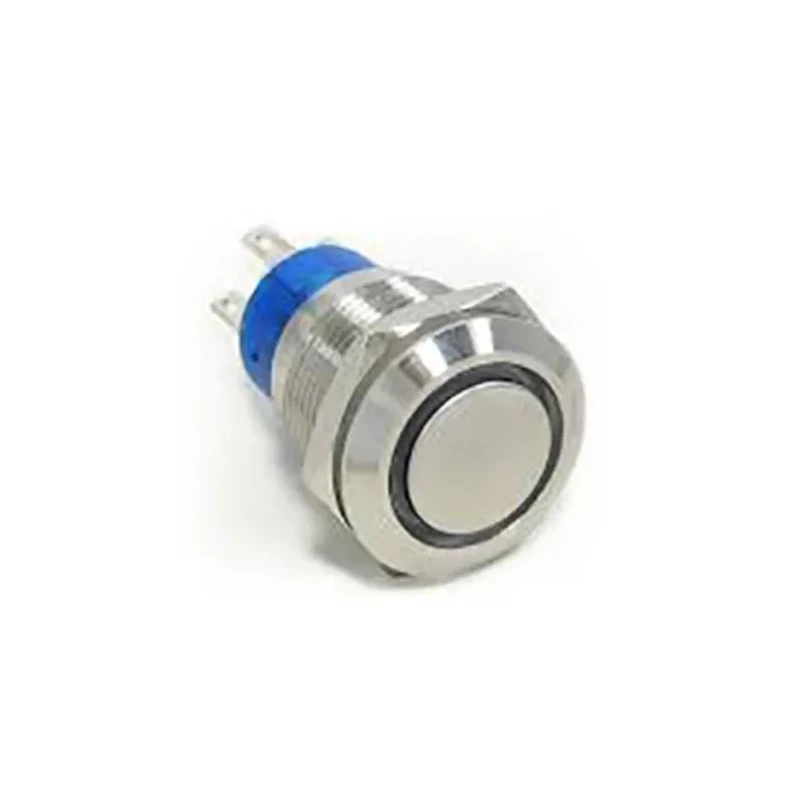

TE Connectivity Illuminated Anti Vandal Push Button Switch Momentary DPDT Blue LED IP67 Panel Mount 250V AV22

TE Connectivity’s AV2220E724Q04 is an advanced illuminated anti-vandal push button switch designed for robust and reliable operation in industrial and commercial panel applications. This model features a momentary switch function, DPDT contact configuration, and a clear blue LED indicator integrated into the actuator, making it ideal for situations where visual feedback and durability are essential.

The AV22 series is specifically engineered with a vandal-proof construction, incorporating a rear mounting jam nut and sturdy actuator for enhanced security. The 22.2 mm panel cutout, combined with a silver push button, ensures compatibility with a wide array of control panels and equipment. The switch is rated IP67, providing strong protection against dust and water ingress, which makes it suitable for environments exposed to harsh conditions, including outdoor controls, elevators, communication devices, and industrial instrumentation.

Electrical performance is assured with a maximum operating voltage of 250V AC and a 3A switch contact current rating, supporting both commercial and industrial wiring standards. The DPDT contact configuration allows for versatile control logic integration, while the lug ring terminal type simplifies secure electrical installation.

Illuminated by a blue LED, the actuator gives immediate visual status cues, aiding operator awareness and safety. The momentary switching action is preferred in applications requiring reset or emergency trigger mechanisms, such as access control, signal panels, and remote equipment management.

The AV2220E724Q04 is compliant with international safety and quality standards including REACH, UL (E46765), and EU ELV directives, ensuring reliable performance and market acceptance. With operational temperature ranging from -20°C to 55°C, it functions reliably across diverse industrial environments.

This switch is recommended for use in control panels, communications systems, elevator and escalator controls, and instrumentation where user interface quality, security, and longevity are critical requirements.
