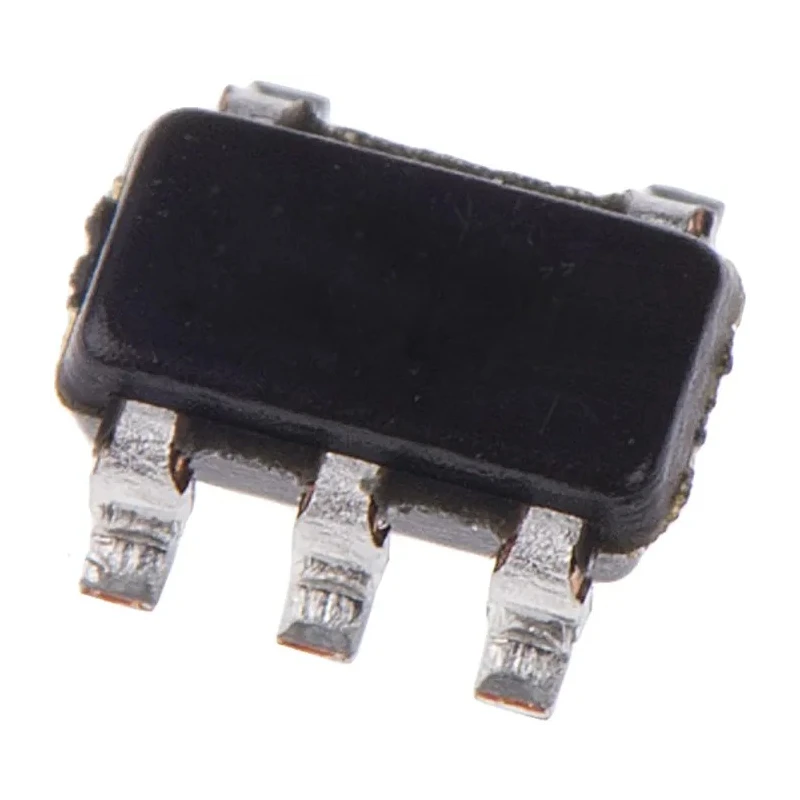

STMicroelectronics Operational Amplifier TSB611ILT, 560 kHz Gain Bandwidth, 36V, 5-Pin SOT-23

STMicroelectronics TSB611ILT is a single-channel, low-power operational amplifier engineered for precision amplification tasks in industrial, laboratory, and commercial electronics. Designed with a rail-to-rail output architecture, it provides accurate signal processing across a wide supply voltage range, from 2.7V to 36V, enabling compatibility with diverse electronic systems.

This device features a 560 kHz gain bandwidth product, facilitating low-frequency signal amplification with a balance of speed and precision. Encased in a compact 5-pin SOT-23 surface-mount package, TSB611ILT is ideal for applications requiring reliable performance and efficient space utilization in PCB designs.

The amplifier offers a low offset voltage, specified at a maximum of 1 mV, ensuring stable and accurate signal output. Low input bias and offset currents (15 nA and 20 nA, respectively) minimize errors and contribute to consistent operation in sensitive measurement or control systems. Power consumption is optimized, with a typical value of 125 μA at 36V supply, making the TSB611ILT suitable for battery-powered and low-energy applications.

Operating in a wide temperature range between -40°C and 125°C, this amplifier supports rugged operation in industrial and automotive environments. Its automotive standard compliance (AEC-Q100) enhances reliability and suitability for high-performance transport and equipment controls.

The TSB611ILT incorporates standard RoHS compliance, aligning with environmentally conscious manufacturing requirements. With single-channel functionality, a 5-pin configuration, and a minimal footprint, it simplifies integration into both legacy and advanced circuit boards.

Common use cases include signal conditioning in sensor interfaces, analog processing in measurement instruments, filtering and integration stages in control systems, and precision amplification in laboratory equipment.

Single-channel operational amplifier with rail-to-rail output for precise signal amplification. Gain bandwidth product is 560 kHz, suitable for low-frequency and high-precision applications. Maximum supply voltage up to 36V and minimum supply voltage of 2.7V offering broad compatibility.

Compact 5-pin SOT-23 surface-mount package for easy PCB integration in space-constrained designs. Low offset voltage of 1 mV max for high accuracy in demanding electronic circuits. Low power consumption with typical operating current of 125 μA.

Input bias current of 15 nA and input offset current of 20 nA ensures minimal input errors. Operating temperature range from -40°C to 125°C supports industrial applications. Explore more Operational Amplifiers and STMicroelectronics analog solutions in EnvMart's semiconductor category.
