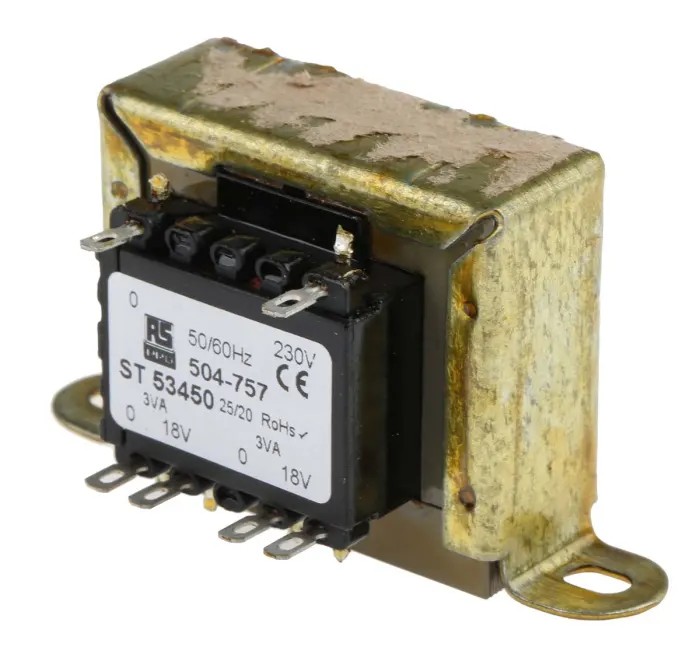

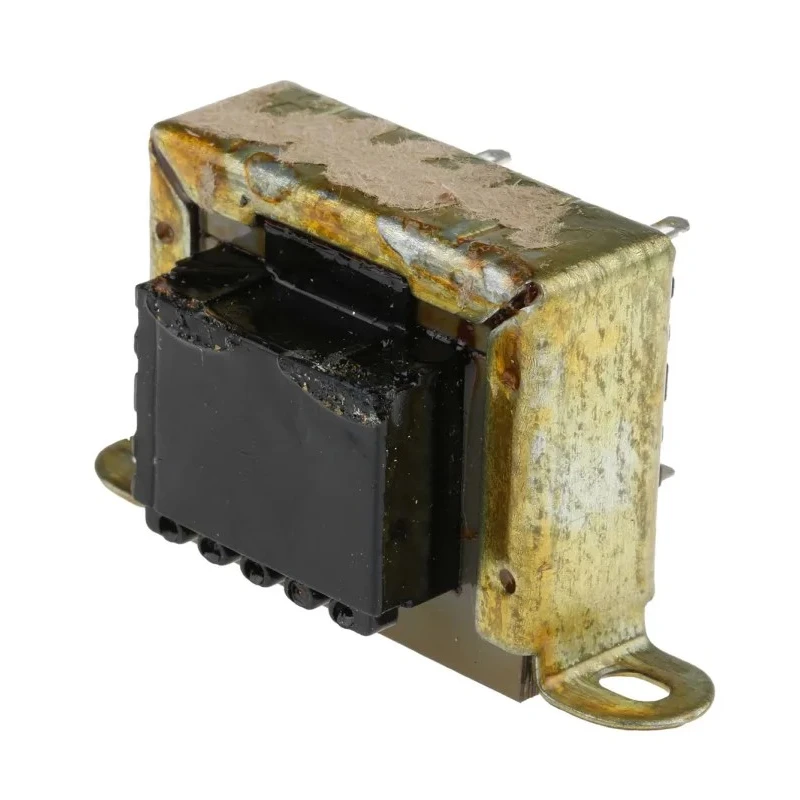

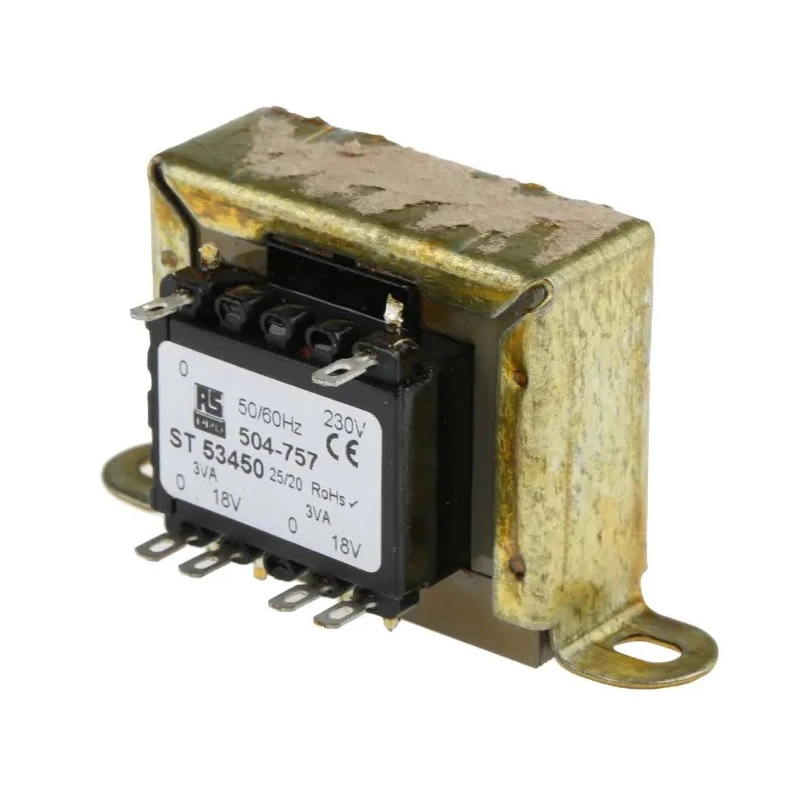

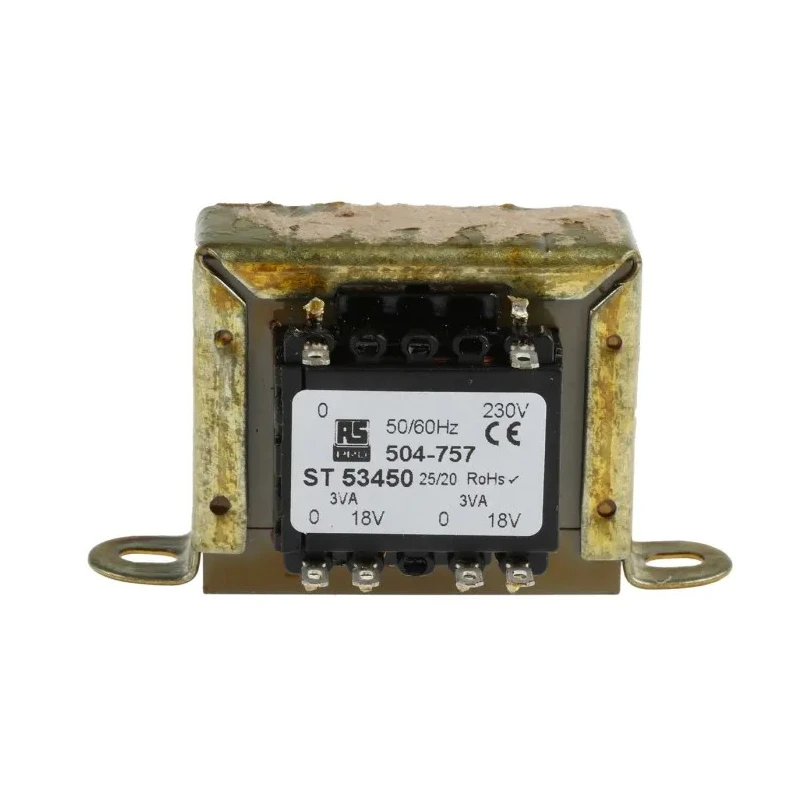

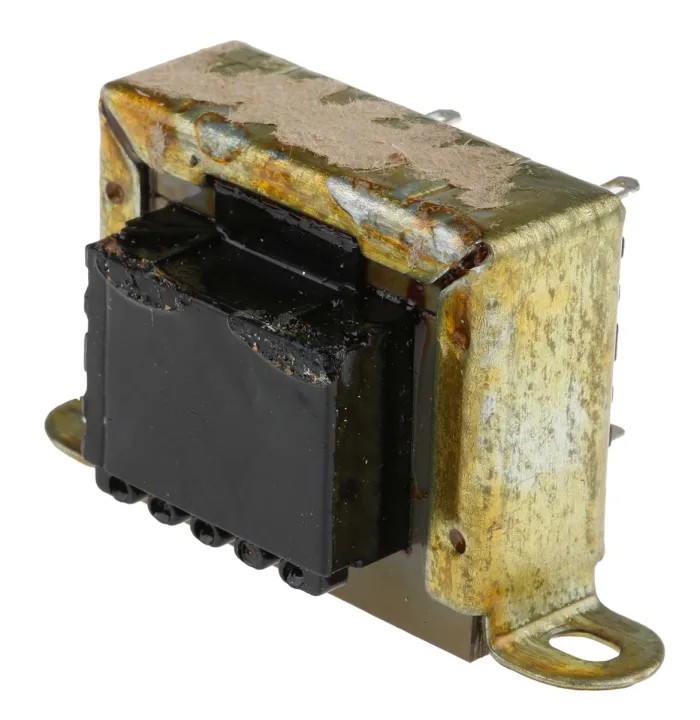

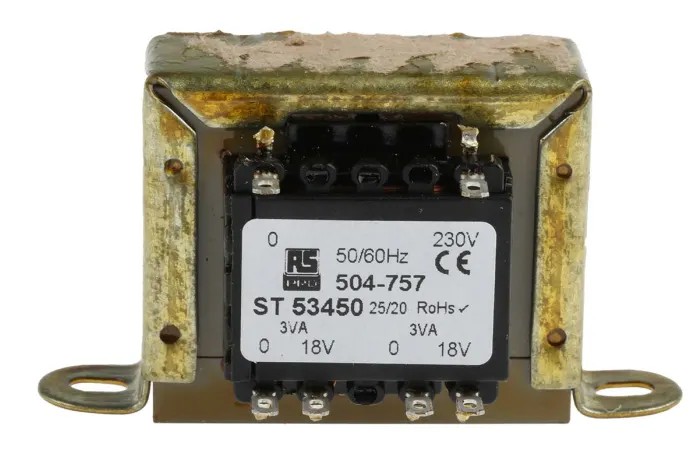

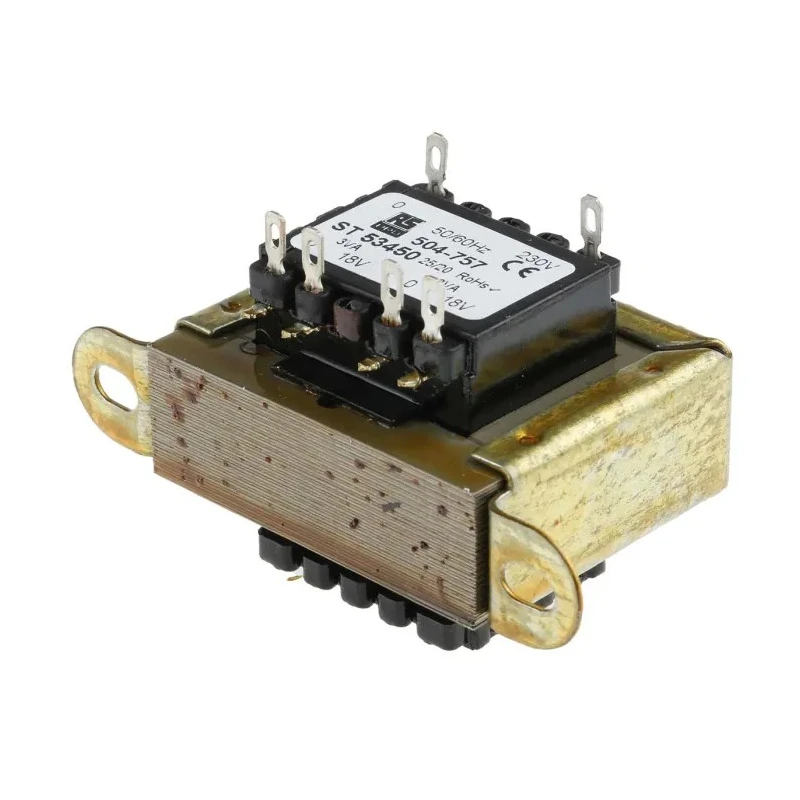

RS PRO 2 Output Chassis Mount Transformer 6 VA, 230 V AC Input, 18 V AC Dual Output, CE, AS/NZS 61558.1, AS/NZS 504-757
Specifications
| Country of Origin | Poland |
|---|---|
| Brand | RS PRO |
| Length | 45mm |
| Model | 504-757 |
| Depth | 37mm |
| Gross Weight | 210g |
| Width | 40mm |
| Termination | Solder Tag |
| Maximum Operating Temperature | 130°C |
| Minimum Operating Temperature | -30°C |
| Number of outputs | 2 |
| RS Stock No. | 504-757Brand: RS PRO |
| Primary Voltage | 230 V ac |
| Secondary Voltage | 18 V ac |
| Minimum Operating Frequency | 50Hz |
| Maximum Operating Frequency | 60Hz |
| Walsall Transformers 6VA 2 Output Chassis Mounting Transformer, 18V acBrand | Walsall Transformers |
Key Features
- Built with double section bobbin and fully shrouded construction for reliable isolation.
- Primary voltage rated at 230 V AC and dual secondary outputs rated at 18 V AC each.
- Power rating of 6 VA, suitable for a range of electromagnetic and control applications.
- Clamp mount chassis with full varnish impregnation and solder tag termination for secure installation.
- Features 2 separate secondary windings, connectable in series or parallel for flexible output options.
- Operating temperature range from -30°C to 130°C for robust performance in harsh environments.
- 100% electrical and flash tested according to BS3535 and EN 60742 regulations.
Product Description
The RS PRO 504-757 2 Output Chassis Mount Transformer is engineered for reliable voltage isolation and conversion in electronic and electromechanical systems. Designed for mounting directly onto chassis panels, this transformer features a robust clamp construction with full varnish impregnation, ensuring superior insulation and protection against environmental factors. The primary winding operates at 230 V AC, providing a stable input for a wide variety of industrial devices.
With a power rating of 6 VA and dual 18 V AC secondary outputs, the transformer delivers flexible performance for electromagnetic, relay, pump, heating element, and speed changer applications. The design includes double section bobbin, fully shrouded windings, and solder tag termination, guaranteeing safe and secure connections.
Two separate secondary windings can be connected in series or parallel, enabling a wide range of output configurations to match project specifications. The transformer's operating temperature ranges from -30°C to 130°C, making it suitable for demanding environments and continuous-duty cycles. Optional terminal shrouds enhance safety and adaptability.
The product complies with stringent international standards, including CE, AS/NZS 61558.1, AS/NZS 61558.2.6, IEC/BS/EN 61558-1, RoHS, and BS3535 EN 60742, ensuring safety and performance according to global requirements. Each unit is 100% electrical and flash tested before shipment.
This Chassis Mount Transformer is compact, with dimensions of 45 mm in length, 40 mm in width, and 37 mm in depth, weighing 210 g. The construction is optimized for quick installation and ease of integration into control panels, distribution boxes, and equipment enclosures.
RS PRO transformers are trusted in applications such as electromagnetic devices, control systems, relays, pumps, speed changers, heating elements, and any equipment needing stable AC voltage conversion.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The primary voltage rating of this transformer is 230 V AC.
This model features dual secondary outputs rated at 18 V AC each.
The transformer has a power rating of 6 VA.
It operates within a temperature range of -30°C to 130°C.
The transformer features solder tag termination for secure installation.
The dimensions are 45 mm in length, 40 mm in width, and 37 mm in depth.
This unit provides two outputs.
It is suitable for electromagnetic devices, control systems, relays, pumps, speed changers, and heating elements.
The transformer complies with CE, AS/NZS 61558.1, AS/NZS 61558.2.6, IEC/BS/EN 61558-1, RoHS, and BS3535 EN 60742 standards.
The gross weight of this transformer is 210 g.
Yes, the two separate secondary windings can be connected in series or parallel for flexible output options.
The minimum operating frequency is 50 Hz and the maximum is 60 Hz.
