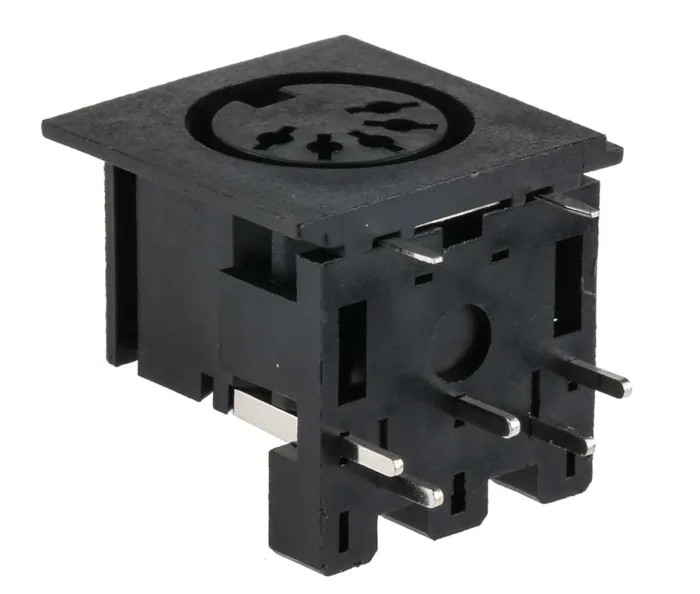

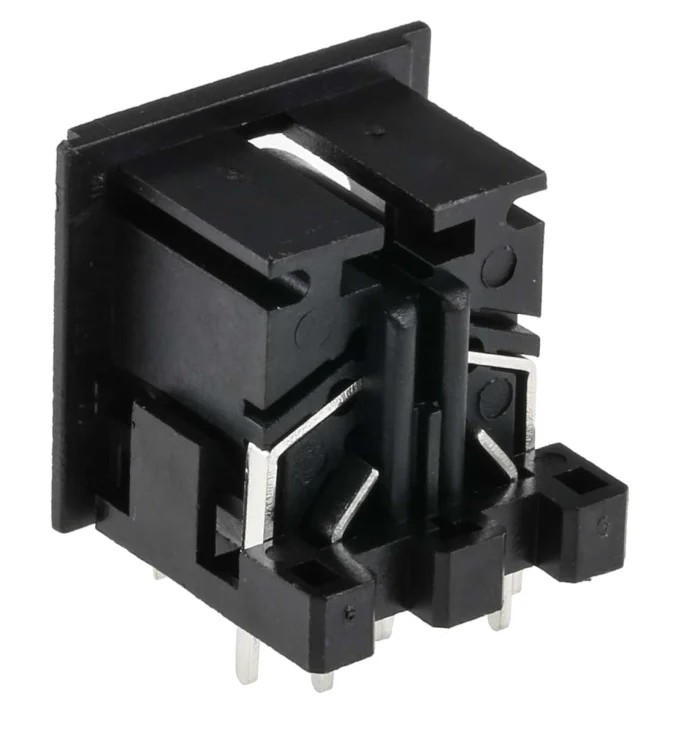

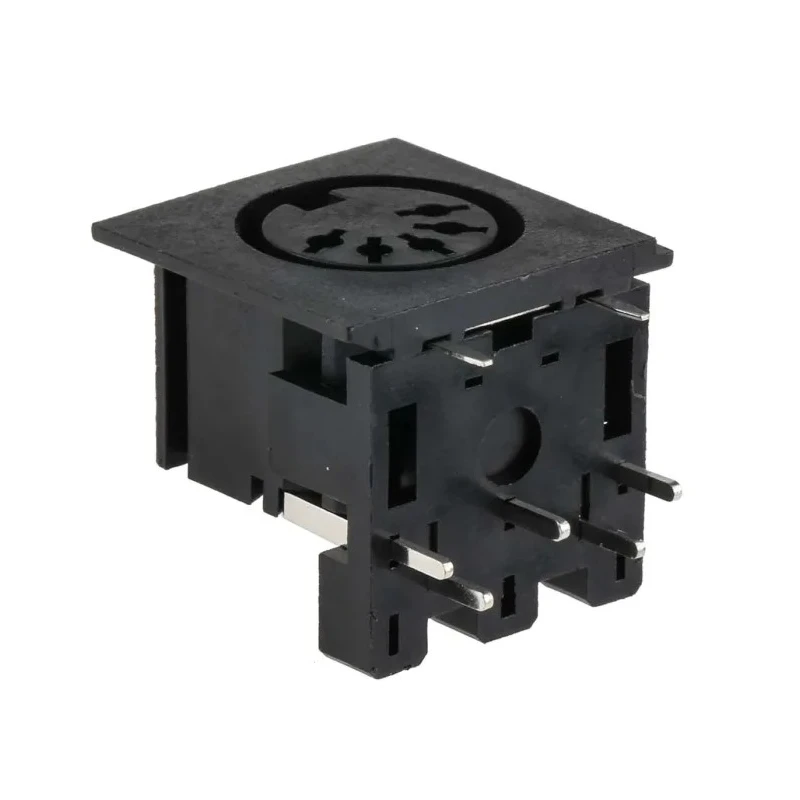

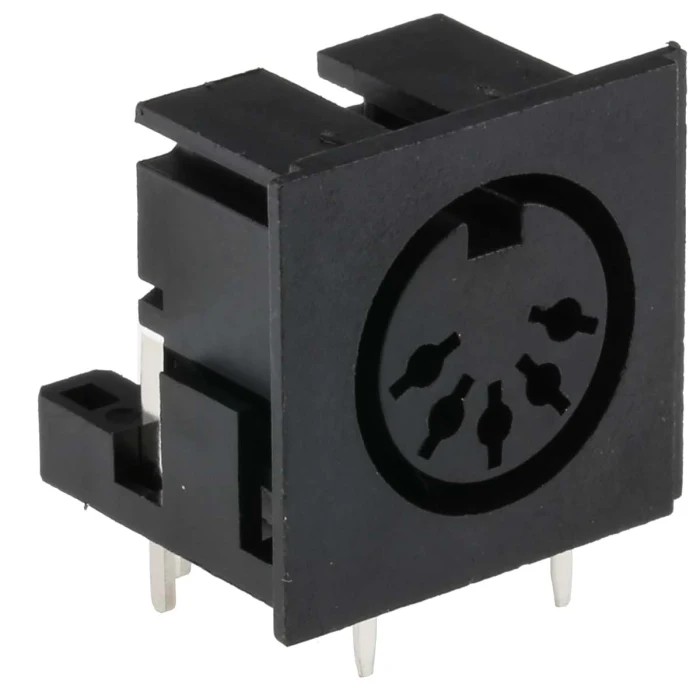

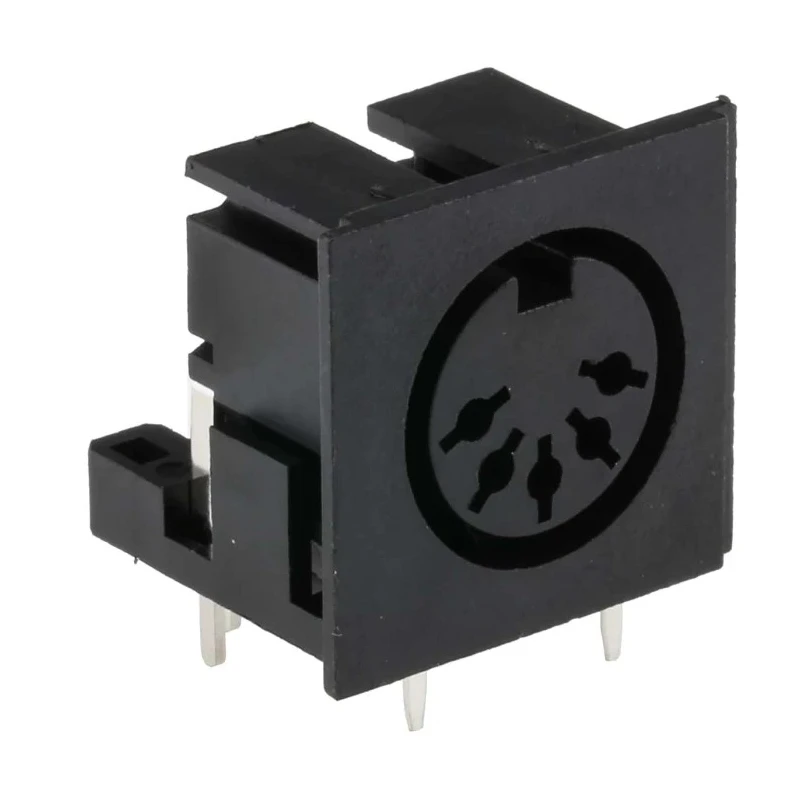

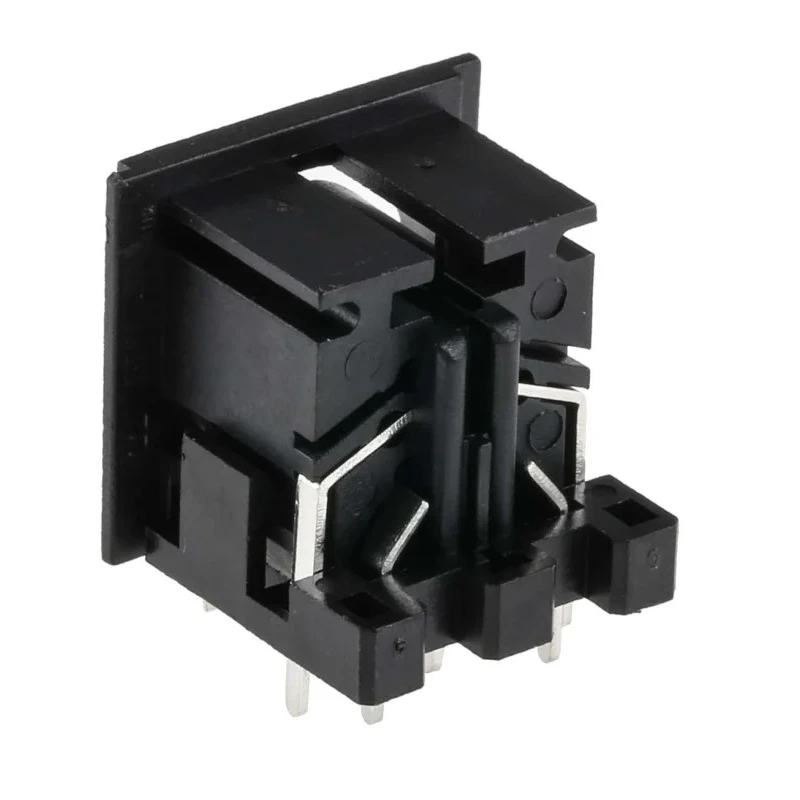

RS PRO YE-138X Miniature DIN Socket, 5 Pole, Right Angle, 2A, 100V AC, Through Hole Female 491-087

The RS PRO 491-087 YE-138X Miniature DIN socket offers a five-pole right angle female connector specifically designed for reliable signal and power transmission in advanced electronic systems. Featuring a robust push-in mating mechanism, it enables efficient installation and frequent uncoupling in applications that require maintenance access or flexible connectivity. This connector is built with polybutylene terephthalate (PBT) housing, ensuring insulation, mechanical strength, and resistance to environmental stress.

With a rating of 2A and 100V AC, the socket is suitable for a variety of low-power and signal applications, including industrial controls, laboratory instrumentation, audio-video interfaces, and PC boards. The through-hole mount supports secure PCB integration, while its right-angle orientation optimizes board layout in confined spaces. The female contacts, fabricated from copper and brass with tin and nickel plating, deliver excellent electrical conductivity and corrosion resistance, minimizing signal loss and maintaining integrity over repeated cycles.

This miniature DIN socket adheres to established DIN connector standards, providing interoperability and compatibility with industry equipment. The unshielded design is optimal for general-purpose electronics where signal isolation is not critical. It features a wide operating temperature range of -20°C to +70°C, insulation resistance above 100MΩ at 500V DC, and dielectric strength up to 1,000V AC for enhanced safety and reliability even under adverse conditions.

Typical applications span industrial automation, commercial electronics, laboratory test equipment, and audio-video signal routing. The product is especially suited for environments demanding compact connectors with reliable performance across multiple duty cycles.

Additional features include solder termination for simplified assembly, five-pole format for versatile signal assignments, and precision-moulded housing and base for secure fastening, including two moulded-in mounting holes for self-tapping screws. The RS PRO 491-087 is part of the YE-138X series, which includes variants supporting different pole counts and mounting configurations, ensuring suitability for a wide range of technical requirements.

Miniature five-pole right angle DIN socket provides secure connection for signal or power transmission. Rated for 2A current and 100V AC voltage in demanding electronic systems. Push-in mating type allows efficient installation and removal.

Through-hole mount ensures robust PCB integration. Female connector built from polybutylene terephthalate for enhanced durability and stability. Tinned and nickel-plated copper/brass contacts offer low resistance and high conductivity.

Wide operating temperature range from -20°C to +70°C for reliable performance. Insulation resistance of minimum 100MΩ at 500V DC and dielectric strength of 1,000V AC for safety. Unshielded design suitable for general-purpose signal applications.

Complies with DIN configuration standards, ideal for industrial, laboratory, and electronics use cases. Explore more connectors and technical solutions from RS PRO in the Circular Connector category on EnvMart.
