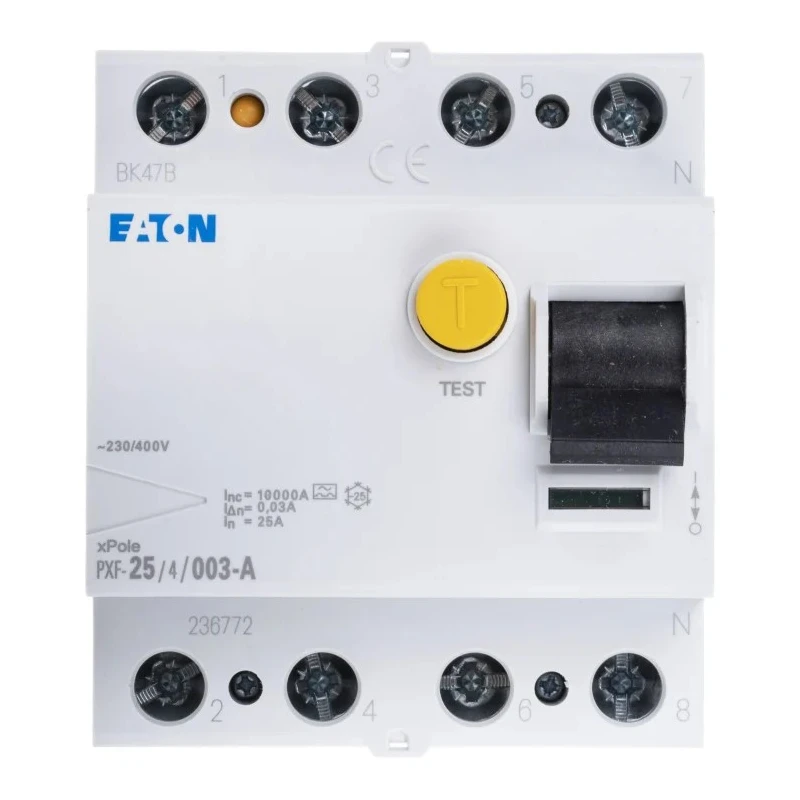

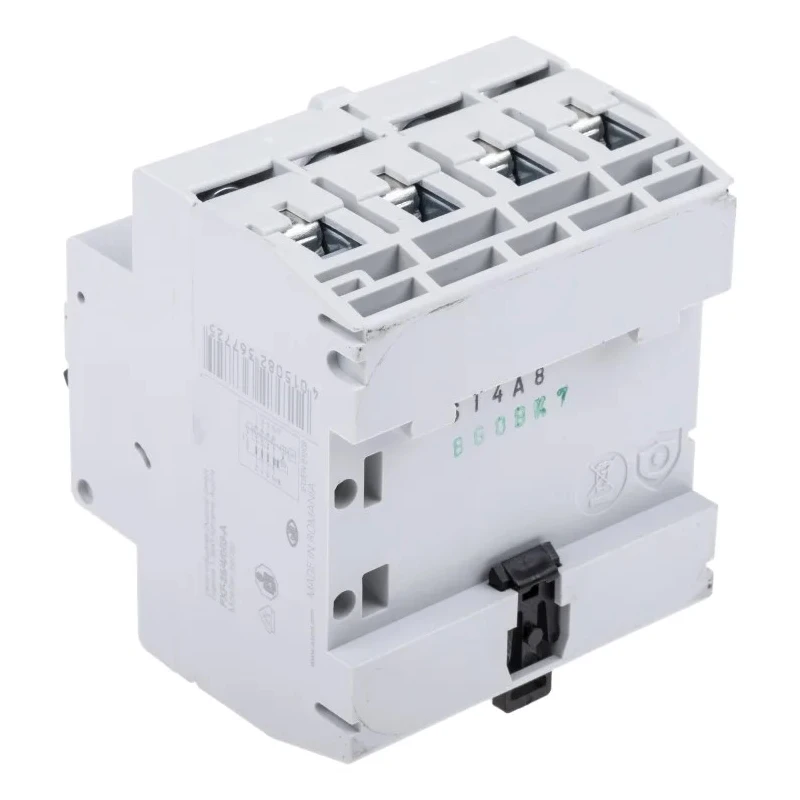

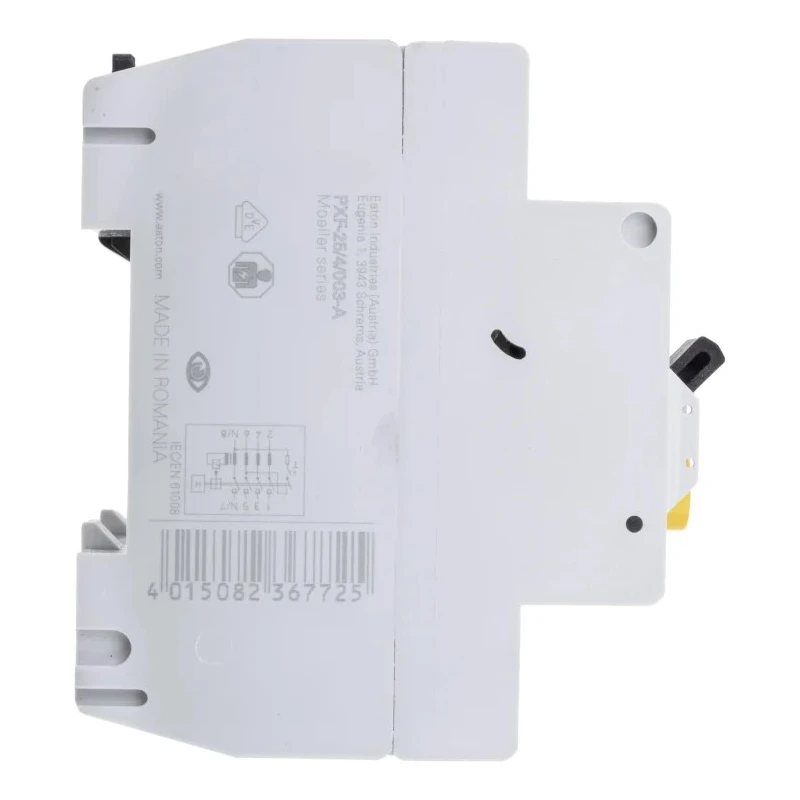

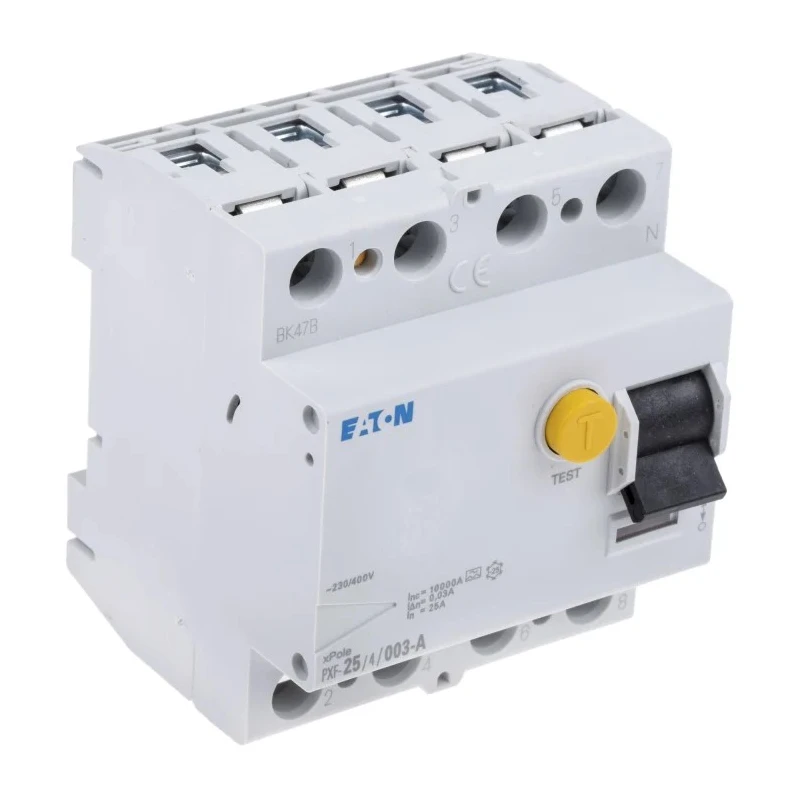

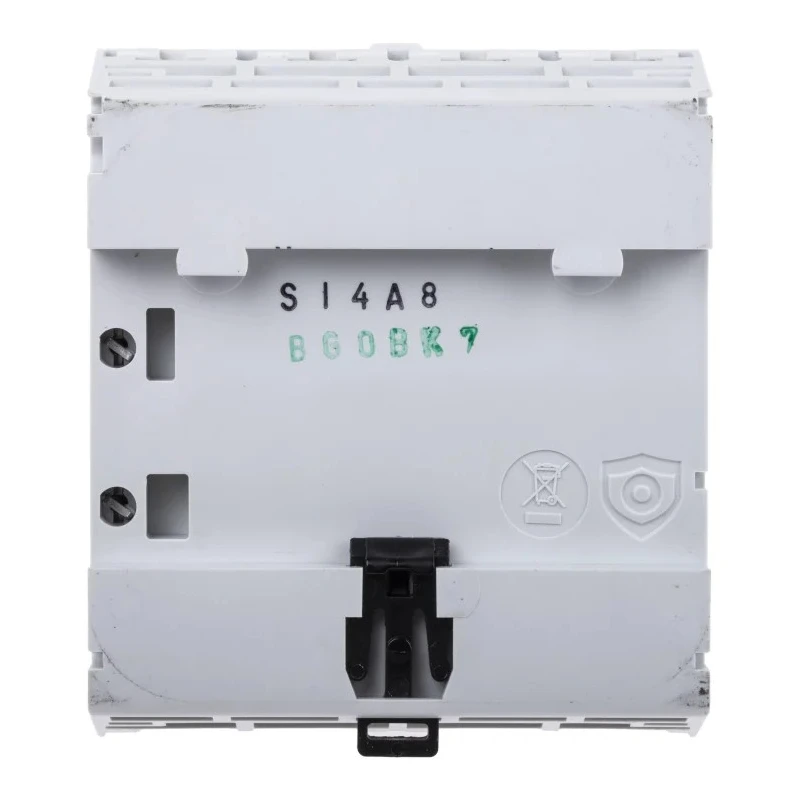

Eaton Residual Current Circuit Breaker 25A 3+N Pole 30mA Type A 500A 400V AC PXF-A Series 236772 PXF-25/4/003-A
Specifications
| Country of Origin | Romania |
|---|---|
| Range | PXF |
| Brand | Eaton |
| Height | 80mm |
| Model | 236772 PXF-25/4/003-A |
| Depth | 70.5mm |
| Width | 70mm |
| Mount Type | DIN Rail |
| Current Rating | 25A |
| Series | PXF-A |
| Terminal type | Screw |
| Breaking Capacity | 500A |
| Number of Poles | 3+N |
| Standards/Approvals | RoHS, IEC/EN 61008 |
| Rated AC Voltage | 400V ac |
| Tripping Characteristics | Type A |
| Reset Actuator Type | Lever |
| Trip Sensitivity | 30mA |
| Break Time | Instantaneous |
| Earth Leakage Protection Type | Type A |
| Legrand 4P 25 A RCD, Trip Sensitivity 30mABrand | Legrand |
| Legrand 4117 RCD, 25A, 3+N Pole, 30mA, Type ACBrand | Legrand |
Key Features
- Operates with a 25A current rating for versatile application.
- Includes three protective poles plus neutral for enhanced protection.
- 30mA trip sensitivity ensures quick response to leakage currents.
- Type A tripping characteristic enables compatibility with AC and pulsating DC supplies.
- Instantaneous break time to minimize potential risks.
- DIN rail mounting supports easy and secure installation.
- Rated for 500A breaking capacity at 400V AC.
- IP20 protection against accidental contact and solid objects larger than 12mm.
Product Description
The Eaton 236772 PXF-25/4/003-A residual current circuit breaker from the PXF-A Series provides advanced protection by promptly disconnecting supply in the presence of earth leakage. It's equipped with three phases and a neutral, making it ideal for three-phase distribution boards and systems in commercial or residential settings.
This device operates at a rated current of 25A and is calibrated for high sensitivity, tripping as soon as leakage current reaches 30mA. The Type A characteristic allows it to react not only to alternating currents but also to pulsating DC, ensuring coverage for a wide range of electrical equipment.
Installation is made easy with DIN rail mounting and terminal screws, providing a secure fit within panels or enclosures. For added flexibility, the breaker can be fitted in standard electrical enclosures, increasing its IP rating from IP20 to IP40 when installed appropriately, protecting against solid objects like nails and wires.
Safety is prioritized with a 500A breaking capacity at 400V AC voltage, allowing the circuit breaker to withstand high fault currents without compromise. The device immediately interrupts current flow upon detection of hazardous leakage, minimizing the risk of electric shock.
The reset lever actuator lets users easily restore operation after a trip. The unit's robust build is supported by compliance with RoHS and IEC/EN 61008 standards. The compact dimensions (80 mm height, 70 mm width, 70.5 mm depth) suit modern panels and optimize space utilization.
Popular for commercial sites, multi-family residences, and industrial facilities, the PXF-A series breaker can safeguard sensitive equipment and provide reliable earth leakage protection across diverse installations.
Browse more advanced circuit protection products from Eaton and discover comprehensive solutions for safe power distribution in the Residual Current Circuit Breaker category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a current rating of 25A, making it suitable for various applications.
It features a trip sensitivity of 30mA, ensuring quick response to leakage currents.
This unit includes three protective poles plus a neutral, designed for enhanced protection in three-phase systems.
It has a breaking capacity of 500A at 400V AC, allowing it to withstand high fault currents.
It supports DIN rail mounting, which facilitates easy and secure installation within electrical panels.
The dimensions are 80 mm in height, 70 mm in width, and 70.5 mm in depth, making it compact for modern installations.
It complies with RoHS and IEC/EN 61008 standards, ensuring safety and reliability in electrical applications.
It features a Type A tripping characteristic, allowing it to react to both AC and pulsating DC supplies.
It has a lever type reset actuator, enabling users to easily restore operation after a trip.
The device has an IP20 rating, protecting against accidental contact and solid objects larger than 12mm.
The Eaton PXF-25/4/003-A is manufactured in Romania.
It is popular for use in commercial sites, multi-family residences, and industrial facilities, providing reliable earth leakage protection.
