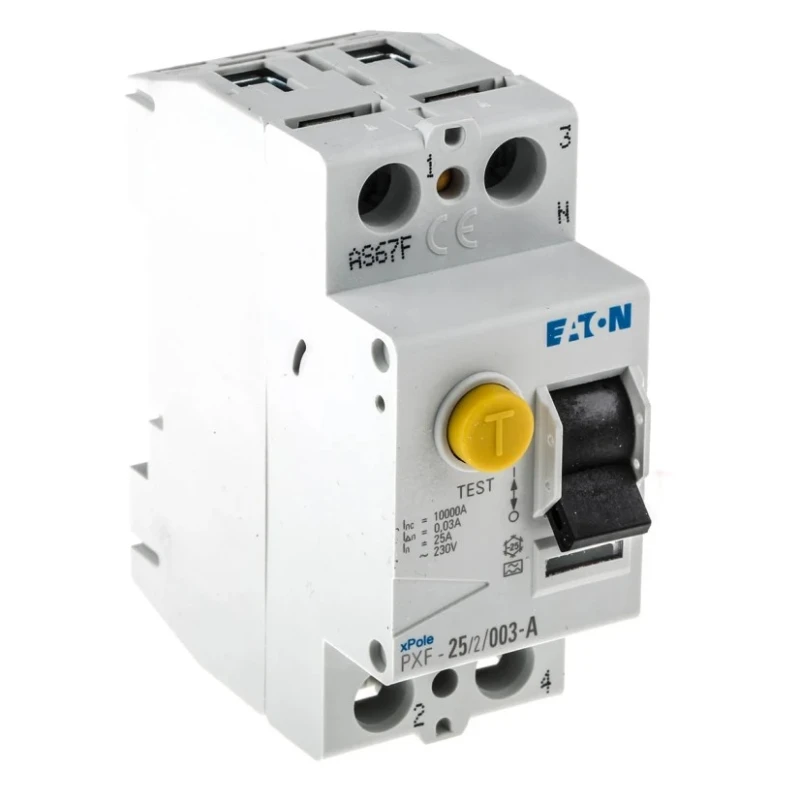

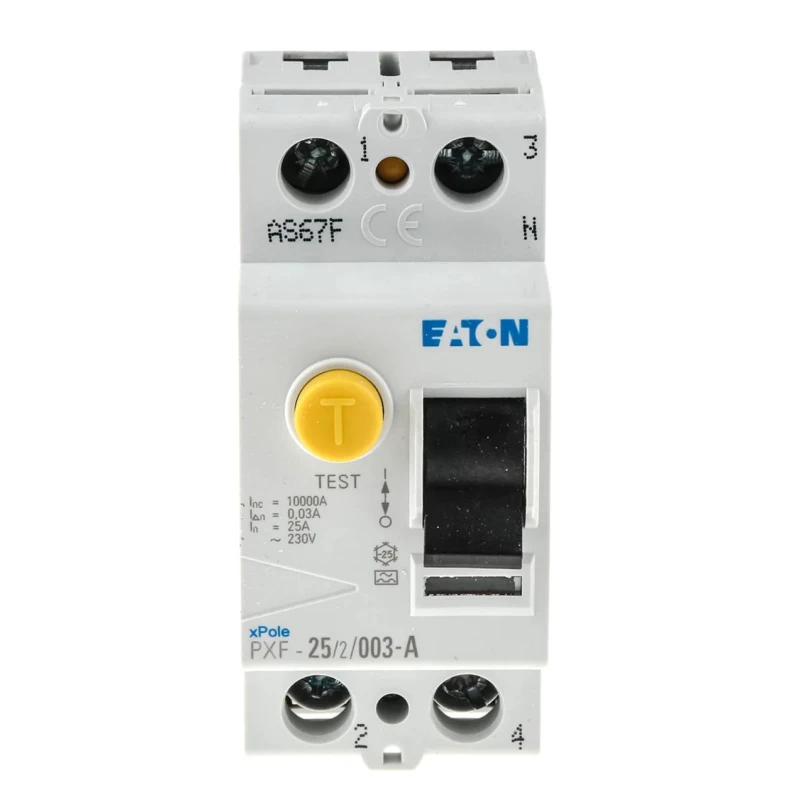

Eaton PXF-A Series Residual Current Circuit Breaker 25A 1-Pole 30mA Type A 500A 230V AC DIN Rail 236744 PXF-25/2/003-A

The Eaton 236744 PXF-25/2/003-A Residual Current Circuit Breaker (RCCB) is a specialized electrical safety device engineered to prevent fatal electric shock and protect equipment by rapidly disconnecting the power in the event of earth leakage or abnormal current flow. Ideal for a wide range of industrial, commercial, and residential installations, this unit offers a practical solution for safeguarding power distribution against hazardous faults.

Featuring a current rating of 25A and a precise trip sensitivity of 30mA, this RCCB is capable of meeting demanding load requirements while maintaining excellent responsiveness to earth faults. Its advanced Type A tripping characteristic ensures effective detection of both AC and pulsating DC leakage currents, increasing safety across diverse electrical systems.

Mounted easily on a DIN rail, the circuit breaker is designed for space efficiency in distribution panels, with compact 35mm width and 80mm height. Both top and bottom screw terminals provide flexible wiring options to suit a variety of installation scenarios.

Equipped with a robust breaking capacity of 500A at 230V AC, this RCCB delivers dependable circuit interruption, protecting downstream circuits and equipment. The device can be reset effortlessly using the lever actuator after fault clearance, minimizing downtime and facilitating maintenance.

Constructed for durability, the unit withstands impulse voltages up to 4kV and operates reliably in temperatures ranging from -25°C to +55°C. Compliance with IEC/EN 61008 and RoHS standards guarantees adherence to international quality and safety benchmarks.

Precision-operated 25A RCCB for industrial power distribution safety. 30mA earth leakage sensitivity to prevent accidental electrocution. Type A tripping for comprehensive AC and DC fault detection. Instantaneous break time to minimize damage during electrical faults.

Space-saving DIN rail installation for fast, secure mounting. Suitable for commercial, residential, and manufacturing environments. Flexible wiring with top-bottom screw terminals, ready for integration. Reset actuator lever enables quick device restoration after tripping.

Built for long life, withstanding at least 20,000 mechanical operations. Adheres to global standards, IEC/EN 61008 and RoHS compliant.

This Eaton RCCB sets a benchmark for safety and performance, protecting sensitive circuits against earth leakage and ensuring operational reliability across a wide application spectrum. Browse the EnvMart circuit protection portfolio or the Eaton brand range for more advanced solutions tailored to your power management requirements.
