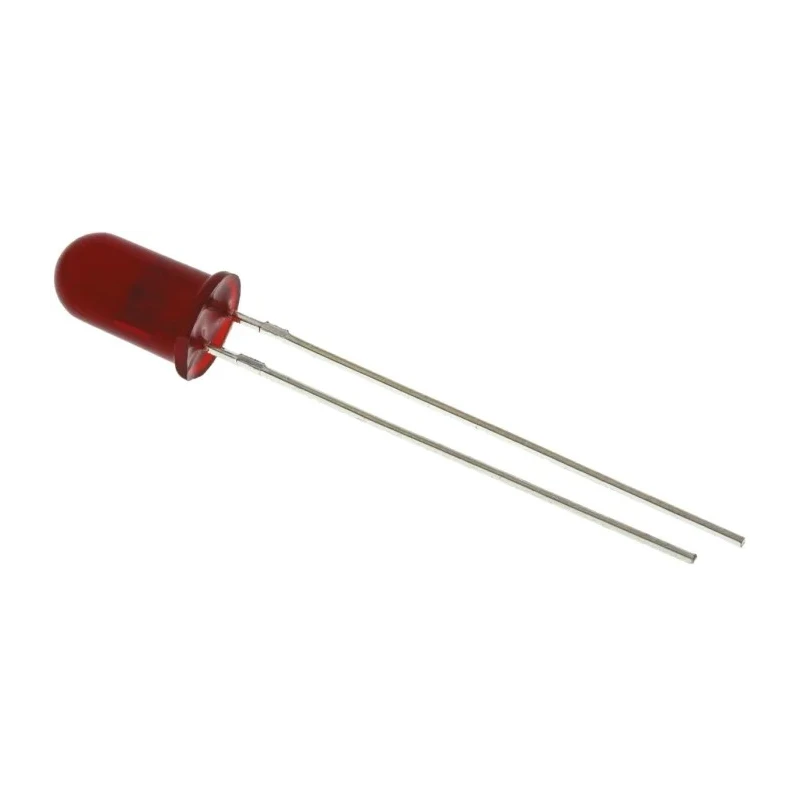

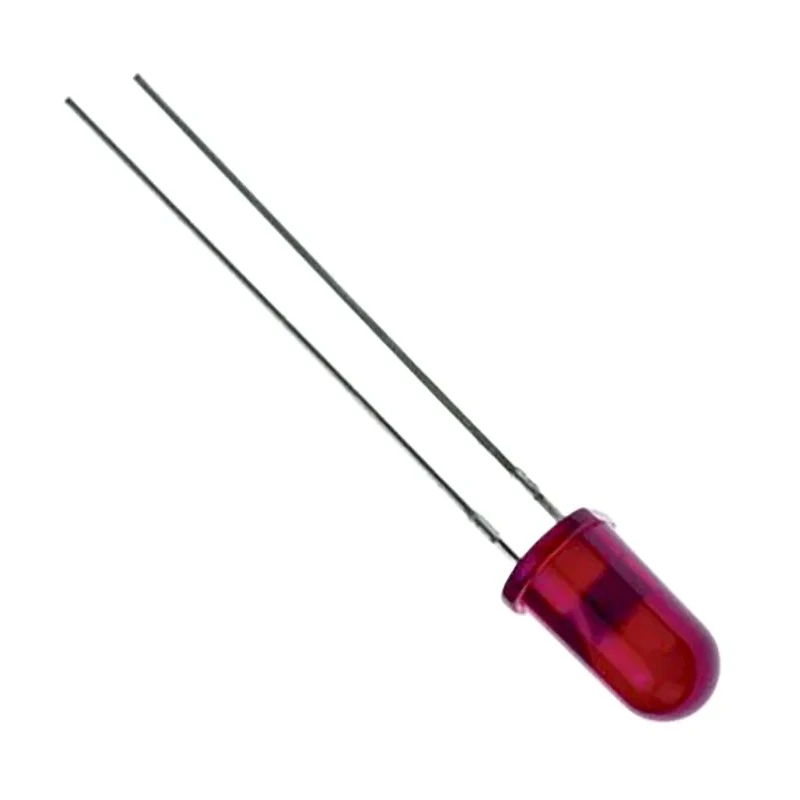

Broadcom 1.8 V Red LED 5 mm T-1 3/4 Through Hole HLMP-D101

The Broadcom HLMP-D101 is a 5 mm (T-1 3/4) through hole red LED, engineered to provide exceptional brightness, robust usability, and efficient operation for a wide range of electronic indicator and display applications. Its red emission at a dominant 637 nm wavelength ensures high visual clarity, ideal for status indication, messaging panels, portable equipment, and general-purpose electronics.

This LED features a standard round, diffused and tinted lens, providing a wide 65-degree viewing angle to maximize visibility from different orientations. With low forward voltage (1.8 V) and a maximum forward current of 20 mA, it excels in energy efficiency while maintaining 70 mcd luminous intensity and up to 87 mW power dissipation for reliable long-term use. Through hole mounting and ammo packaging streamline the production process, enabling easy insertion and automated assembly in high-volume environments.

The HLMP-D101 utilizes advanced AlGaAs/GaAs double heterojunction material technology, resulting in outstanding luminous efficacy and stable operation over a wide range of current drives. Its durable 9.19 x 5.08 mm lens is shaped to resist environmental and mechanical stress, offering reliable performance even in demanding industrial and automotive conditions (although it does not specifically claim the automotive standard in this version).

Integral compatibility with logic families such as CMOS, MOS, and TTL makes the HLMP-D101 versatile for integration into various signaling and display subcircuits. Its robust thermal and electrical properties, as well as RoHS-compliant construction, ensure applicability in modern, environmentally conscious electronics manufacturing.

Common applications for this LED include status signal indication, moving or static display panels, DIY or professional prototype circuits, and any project requiring reliable, high-visibility red light emission. The lens design enables use in both direct sight and backlit symbol scenarios.

For engineers and purchasing managers seeking reliable, cost-effective light emitting diodes for manufacturing or design, Broadcom offers the HLMP-D101 as a robust choice for professional electronic assemblies.
