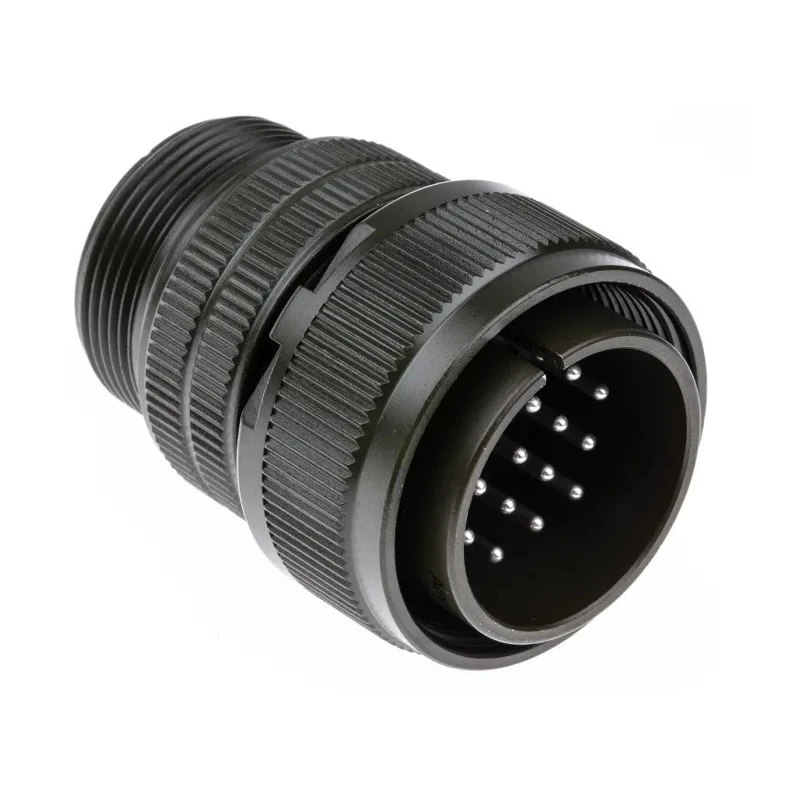

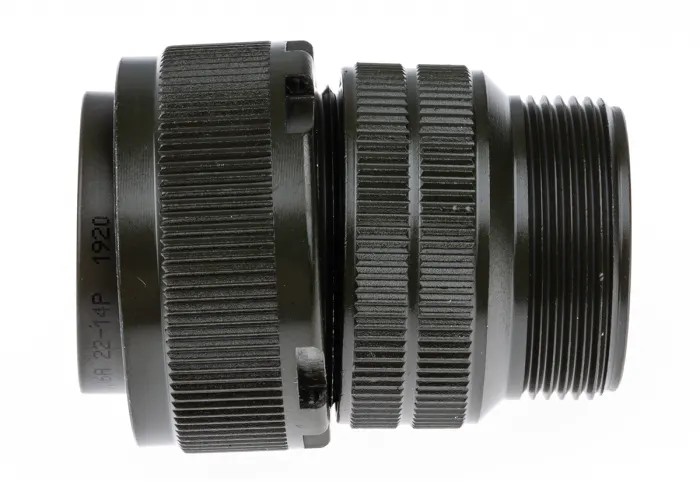

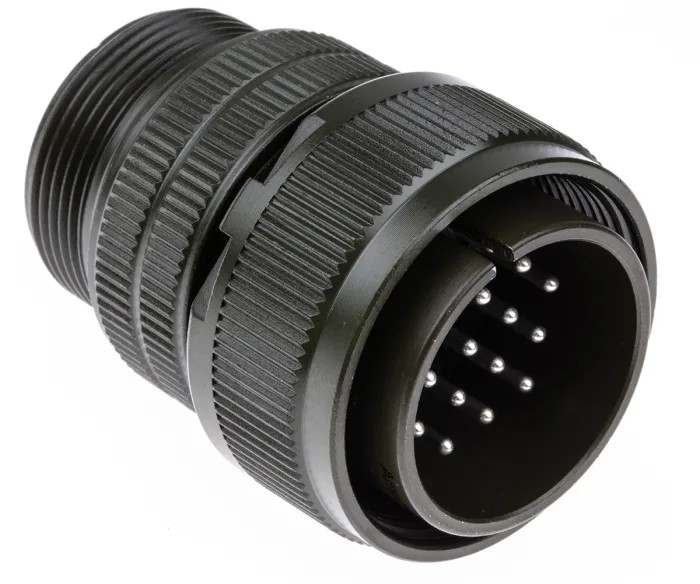

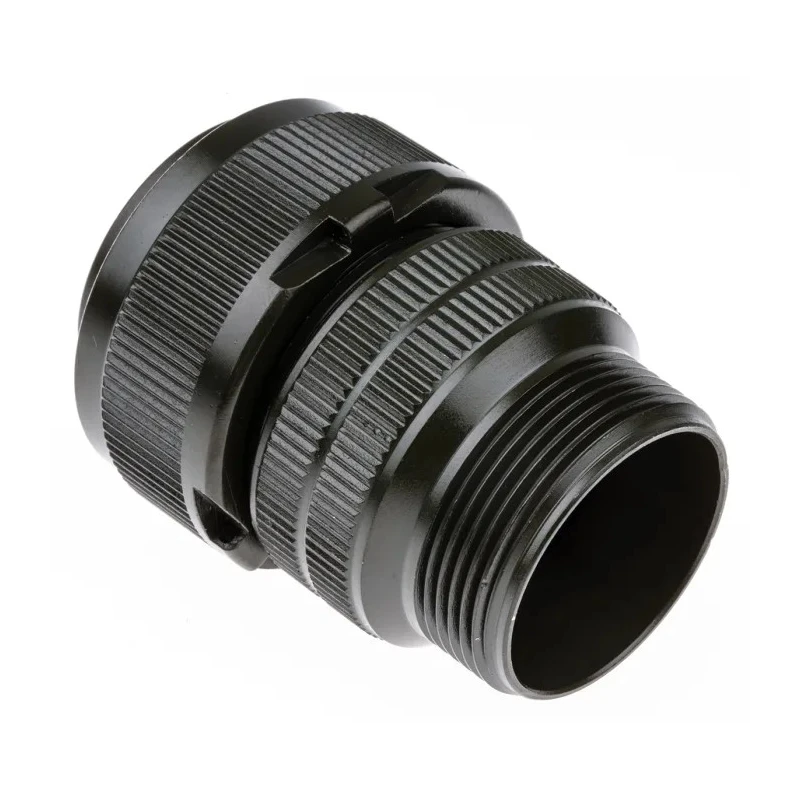

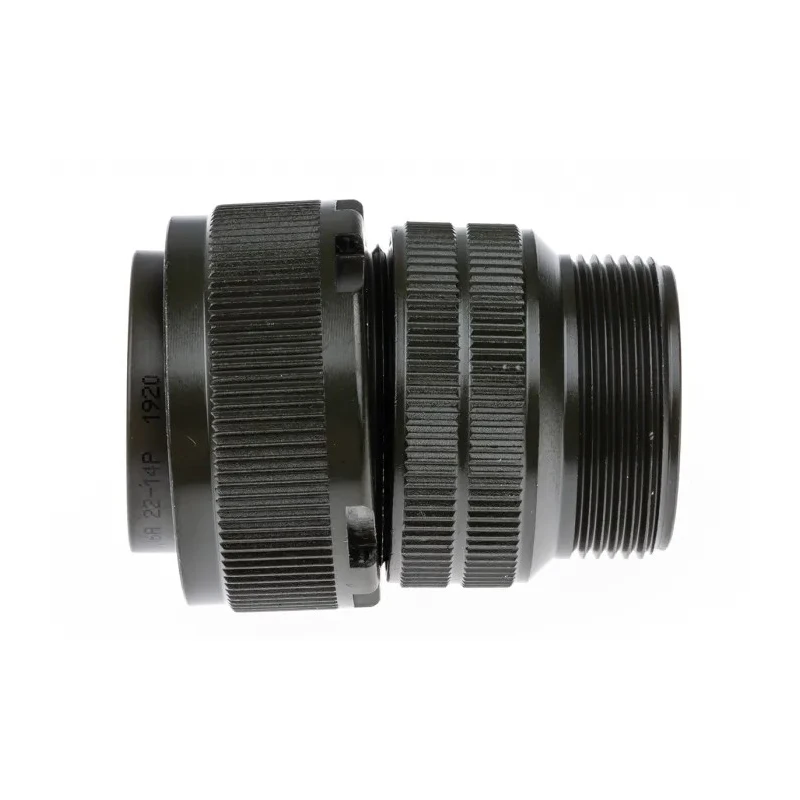

Amphenol Industrial MIL Spec Circular Connector Male 19 Contacts, Straight, 5.5A, Copper Alloy, IP67 MS3106A
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Voltage | 500, 700V ac |
| Brand | Amphenol Industrial |
| Orientation | Straight |
| Current | 5.5A |
| Model | MS3106A |
| IP Rating | IP67 |
| Mount Type | Cable |
| Contact Material | Copper Alloy |
| Series | MS3106A |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Contact Plating | Silver |
| Number of Contacts | 19 |
| Contact Gender | Male |
| Connector Gender | Male |
| Shell Size | 22 |
| Military Standard | MIL-DTL-5015 |
| Mating Type | Screw Coupling |
| Shell Plating | Zinc Cobalt |
Key Features
- Durable MIL Spec circular connector suitable for harsh industrial environments.
- Features 19 male contacts with screw coupling for secure mating.
- Rated for 5.5A current and up to 700V AC voltage.
- Constructed from high-grade copper alloy, with zinc cobalt shell plating for corrosion resistance.
- IP67 rated for dust and water ingress protection.
- Supports cable mount installation with solder termination type.
- Shell size 22 and straight orientation for easy integration.
- Wide operating temperature range from -55°C to 125°C.
Product Description
The Amphenol Industrial MS3106A-22-14P is a rugged MIL Spec circular connector engineered to meet demanding performance requirements for critical industrial and military applications. Featuring 19 male contacts housed in a straight, cable-mount shell size 22, this connector supports secure connections in environments where durability and reliability are paramount.
Constructed from high-grade copper alloy, the connector's shell is plated with zinc cobalt to offer strong corrosion resistance, making it suitable for outdoor or marine use. The robust design includes threaded screw coupling for quick and accurate mating, and single key/keyway shell polarization prevents mismating.
The insert material is resilient synthetic rubber, providing high dielectric strength and vibration resistance. With a current rating of 5.5A and voltage range up to 700V AC, this connector is ideal for power and signal transmission across a variety of systems. Solder termination accommodates reliable, robust cable connections for ground support and equipment installations.
Certified to MIL-DTL-5015 standards, the MS3106A-22-14P offers IP67 ingress protection, ensuring resistance to dust and water. The connector operates across a wide temperature span from -55°C to 125°C, suitable for demanding industrial, laboratory, shipboard, and construction applications.
Field-proven in powering, testing, and grounding support systems, this connector is fully interchangeable with other screw locking MIL-C-5015 types, supporting extensive retrofit and maintenance needs. It is compatible with MS Series 3100, 3101, and 3102 receptacles.
Industrial use cases include communication equipment, computers, shipboard installations, and other environments requiring robust, reliable connectors. Durable MIL Spec circular connector suited to harsh industrial settings.
Secure screw coupling and polarization for accurate mating. High-grade copper alloy shell with corrosion-resistant zinc cobalt plating. IP67 rated for dust and water protection. Wide operating temperature range (-55°C to 125°C).
Complete compatibility with MIL-C-5015 standard components. Explore more connectors and Amphenol Industrial products in the Industrial Circular Connector category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 5.5A and can handle voltages up to 700V AC.
It has an IP67 rating, providing protection against dust and water ingress.
The connector operates within a temperature range of -55°C to 125°C.
This connector features 19 male contacts.
It uses solder termination for secure cable connections.
The connector is constructed from high-grade copper alloy and features zinc cobalt plating for corrosion resistance.
The shell size of this connector is 22.
It utilizes a screw coupling mechanism for secure mating.
Yes, it is fully interchangeable with other screw locking MIL-C-5015 types, supporting extensive retrofit and maintenance needs.
The connector is manufactured in the Czech Republic.
It is certified to the MIL-DTL-5015 military standard.
It is suitable for a variety of applications including communication equipment, computers, and shipboard installations.
