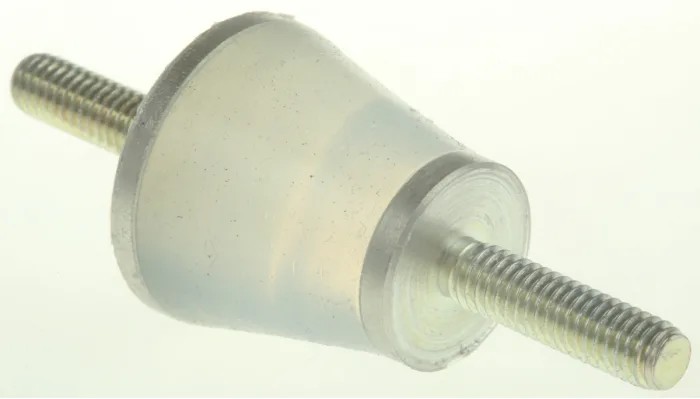

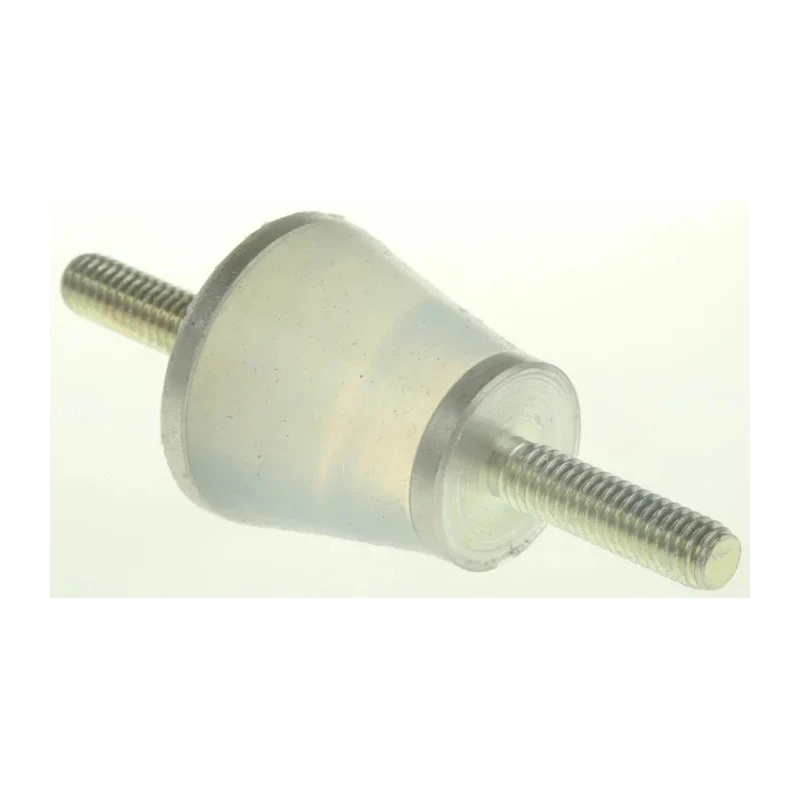

Taica Cylindrical Bobbin Male to Male M4 Anti-Vibration Mount, Silicone, 4mm Bore, 18mm OD, 48mm Height THETA-B
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Taica |
| Material | Silicone |
| Model | THETA-B |
| Mount Type | Bobbin |
| Series | THETA |
| Outside diameter | 18mm |
| Maximum Operating Temperature | 200°C |
| Thread Size | M4 |
| Minimum Operating Temperature | -40°C |
| Bore Diameter | 4mm |
| Overall height | 48mm |
| Anti Vibration Mount Type | Male to Male Bobbin |
| Foot Shape | Cylindrical Bobbin (Male-To-Male) |
Key Features
- Constructed from high-quality silicone for superior vibration dampening and shock absorption.
- Male-to-male bobbin design with M4 threaded studs and 4 mm bore for streamlined installation.
- Operates in extreme temperatures from -40°C up to 200°C for robust performance.
- Ideal for protection of vacuum pumps, analytical instruments, sensitive electronics, and measuring equipment.
- Provides ozone, UV, and chemical resistance for extended durability in industrial environments.
- Not suitable for uneven, angular, tensile, or shearing load applications.
- Supports vibration damping on loads between 2 kg and 100 kg when used at four points.
Product Description
The Taica THETA-B Cylindrical Bobbin Male to Male M4 Anti-Vibration Mount is a precision-engineered mounting solution designed to isolate sensitive equipment from unwanted vibration, shock, and mechanical noise. This mount incorporates a 4 mm bore and M4 male threaded studs on both ends, housed in a cylindrical silicone bobbin with an 18 mm outside diameter and overall height of 48 mm. The soft silicone gel material ensures exceptional vibration damping across a broad frequency spectrum, outperforming traditional rubber or neoprene alternatives.
Engineered to mitigate vibration transmission, this bobbin reduces the impact of mechanical oscillation, enhancing equipment longevity and measurement stability. Its strong chemical bond between the silicone body and metal components assures installation integrity and operational reliability even in extended service.
This Taica mount is suitable for operational environments spanning -40°C to 200°C, providing consistent performance in applications exposed to extreme thermal fluctuations. Its resistance to ozone, UV rays, and chemicals makes it an excellent choice for laboratories, industrial machines, construction equipment, and HVAC units subjected to harsh environmental factors.
The mounting system is engineered for vertical installation with two slotted bolts and is optimal for positioning under precision instruments, vacuum pumps, onboard computers, and other vibration-sensitive machinery. For best results, it is intended for applications with even load distribution and should be avoided in settings subject to twisting, tensile, or shearing loads.
Each mount can dampen vibrations on equipment ranging from 2 kg up to 100 kg, when used at the four standard mounting points common to industrial equipment. The product's robust weather and chemical resilience translate to less maintenance and longer operational life in demanding settings.
Key industrial use cases for the Taica THETA-B include laboratory instrument platforms, analytical balances, precision measuring systems, electronic enclosures, semiconductor assembly, and CNC machine peripherals. Its compliance with high-quality standards aligns with rigorous industrial and laboratory requirements, and its Japanese origin signals reliable engineering and manufacture.
Explore more anti-vibration solutions and Taica vibration isolation technology in the Anti Vibration Mounts category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 200°C.
The bore diameter of this mount is 4 mm.
It can support loads ranging from 2 kg to 100 kg when used at four mounting points.
This mount has an outside diameter of 18 mm and an overall height of 48 mm.
It is constructed from silicone, which provides superior vibration dampening and shock absorption.
The Taica THETA-B features M4 male threaded studs on both ends.
It operates effectively in environments with temperatures ranging from -40°C to 200°C and is resistant to ozone, UV rays, and chemicals.
It features a male-to-male bobbin design, which allows for streamlined installation.
It is ideal for protecting vacuum pumps, analytical instruments, sensitive electronics, and measuring equipment.
The mounting system is designed for vertical installation using two slotted bolts.
It should not be used in applications subject to uneven, angular, tensile, or shearing loads.
This model is manufactured in Japan.
