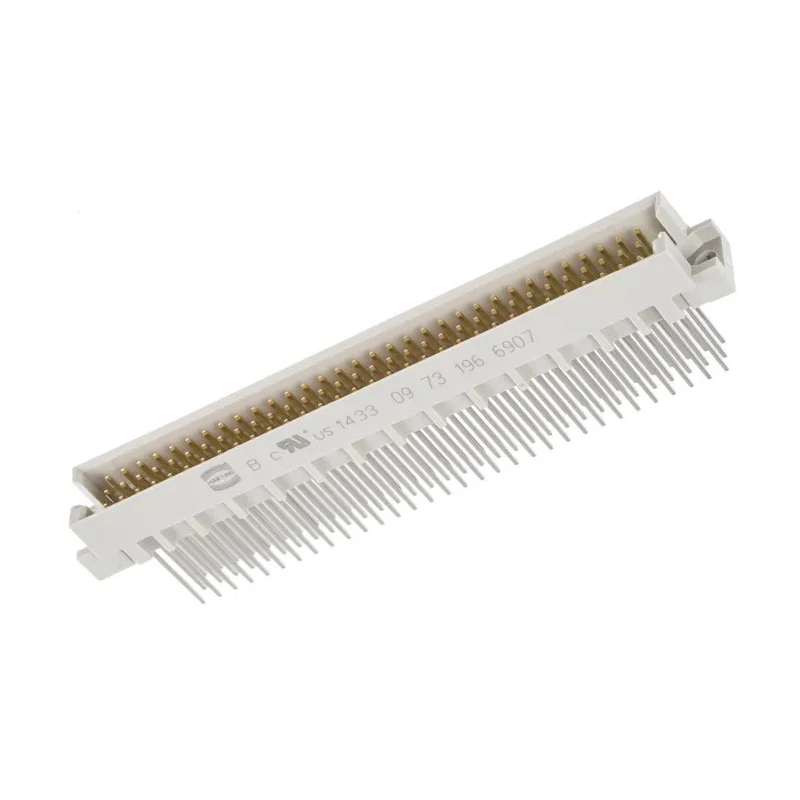

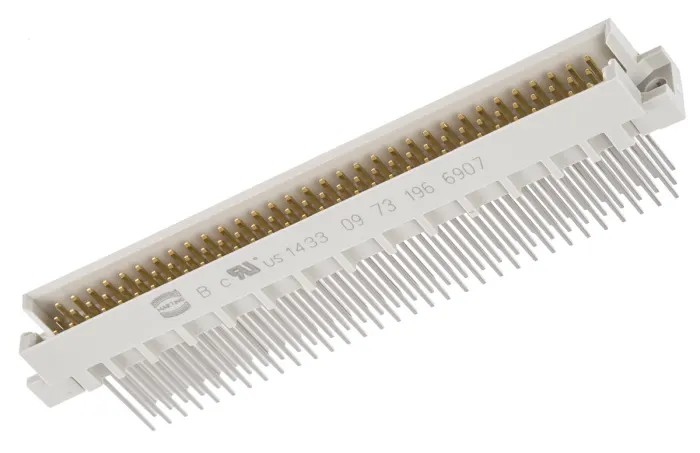

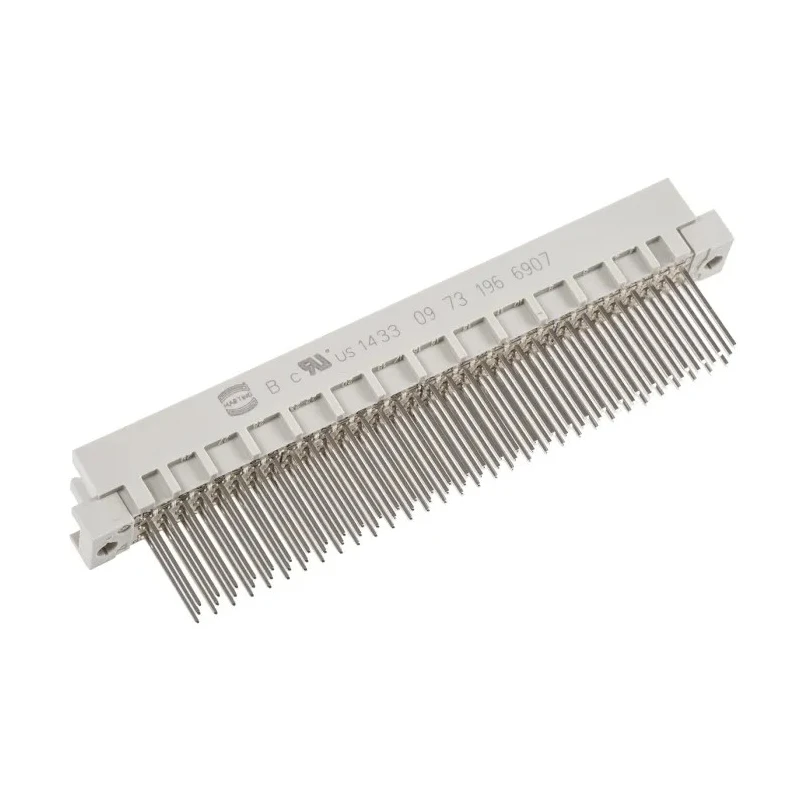

HARTING DIN 41612 Connector 96 Way 2.54 mm Pitch, Through Hole, Wire Wrap, 3 Row Male, Straight, Class C2 09731966907

Free Delivery in India | Lowest Global Shipping Charges

HARTING DIN 41612 Connector 96 Way 2.54 mm Pitch, Through Hole, Wire Wrap, 3 Row Male, Straight, Class C2 09731966907

Name: HARTING DIN 41612 Connector 96 Way 2.54 mm Pitch, Through Hole, Wire Wrap, 3 Row Male, Straight, Class C2 09731966907
Brand: HARTING
SKU: 87494
Price: 13.08 USD
Availability: InStock



Category DIN 41612 Connector Brand HARTING Condition New

Specifications

Country of Origin	India
Brand	HARTING
Orientation	Straight
Current	2A
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Copper Alloy
Series	DIN 41612
Termination Type	Wire Wrap
Maximum Operating Temperature	125°C
Sub Type	C/2
Minimum Operating Temperature	-55°C
Number of Rows	3
Pitch	2.54mm
Contact Plating	Gold over Nickel
Number of Contacts	96
Contact Gender	Male
Connector Gender	Male
Maximum Contact Resistance	20mΩ
Row Loading	A/B/C
ERNI 96 Way 2.54mm Pitch, 3 Row, Straight DIN 41612 Connector, PlugBrand	ERNI

Key Features

Features 96 contacts for dense backplane connectivity.
2.54 mm pitch supports standard Eurocards and PCBs.
Wire wrap terminations ensure robust signal integrity and easy field installation.
Through hole mount type provides secure PCB attachment.
Gold over nickel contact plating offers optimal conductivity and corrosion resistance.
Operates within -55°C to 125°C temperature range for industrial reliability.
Class C2 rating designates performance for demanding applications.
Male connector, straight orientation, suitable for vertical integration in equipment and racks.

Product Description

The HARTING 09731966907 DIN 41612 96 Way Connector is engineered for high-density interconnection applications in electronic equipment, offering a 2.54 mm pitch and through hole mounting for secure PCB integration. This connector is designed to meet the requirements of Eurocard racking systems and industrial backplane environments, supporting reliable data and power transmission across multiple rows.

Equipped with wire wrap terminations, installation flexibility is enhanced, catering to both field and factory assembly. The three-row male configuration, straight orientation, and C/2 subtype provide compatibility with a wide range of standard Eurocard and PCB layouts, ensuring seamless integration within diversified electronic designs.

Performance is reinforced by gold over nickel plating on the copper alloy contacts, promoting low resistance and long-term durability even in demanding environments. The connector operates efficiently in temperatures from -55°C up to 125°C, allowing use in advanced industrial, laboratory, and telecom applications.

Polybutylene terephthalate housing delivers superior mechanical strength and heat resistance, making the connector robust against mechanical and thermal stress. The Class C2 designation guarantees enhanced performance for applications requiring reliable signal integrity and operational endurance.

This DIN 41612 Connector is particularly suitable for industrial backplanes, control units, instrumentation chassis, and electronic manufacturing, offering reliable interconnections vital for critical electronic systems in manufacturing, telecommunications, and laboratory instrumentation.

Choose HARTING’s DIN 41612 09731966907 connector for robust, high-density interconnections in industrial and electronic equipment, and explore more technical solutions in EnvMart’s connectors category and HARTING offerings.
