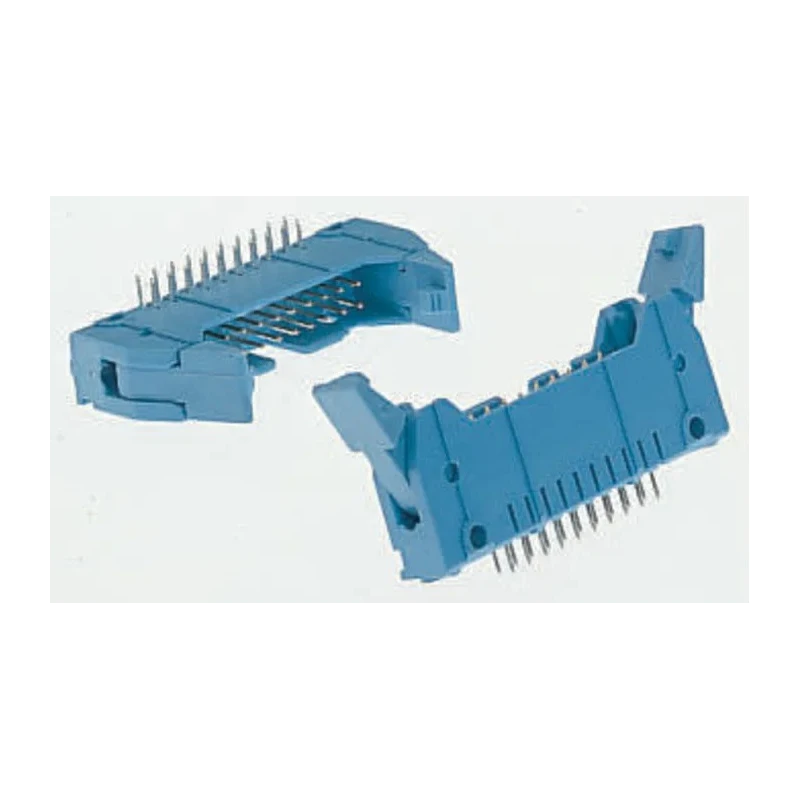

TE Connectivity AMP-LATCH Series PCB Header 20 Contacts 2.54mm Pitch 2 Row Shrouded 2-5499141-4
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Current | 1.0 |
| Contact Material | Phosphor Bronze |
| Series | AMP-LATCH |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Features a 2.54mm pitch suitable for standard PCB designs.
- Accommodates 20 contacts organized in 2 rows for high connectivity density.
- Shrouded design enhances connection reliability and reduces alignment errors.
- Phosphor bronze contacts with gold plating for superior conductivity and corrosion resistance.
- Supports 250V voltage rating and 1.0A current for multiple industrial and electronic applications.
- Compatible with Wire-to-Board connector systems and ideal for use with IDC ribbon cables.
- Military, center and dual polarization for secure, accurate mating.
- Available with ejector latch options for secure mating and easy cable removal.
Product Description
The TE Connectivity AMP-LATCH Series PCB Header, model 2-5499141-4, is a precision-engineered component designed for reliable wire-to-board connectivity. With its 2.54mm pitch and 20-contact configuration arranged in two rows, this header facilitates streamlined integration into printed circuit board assemblies where high-density connections and robust performance are critical.
This shrouded PCB header leverages a phosphor bronze contact base with gold plating, ensuring exceptional electrical conductivity and increased resistance to oxidation and wear. The shrouded design helps protect the contacts from mechanical damage and alignment mismatches during cable or connector insertion, supporting reliable operation in demanding environments.
The product supports secure and accurate mating through military, center, and dual polarization features, while optional ejector latches enable simple and reliable coupling and decoupling with compatible IDC ribbon cable receptacles. This design is robust enough to ensure long-lasting service life even under frequent connect/disconnect operations.
Applications include PCs, business equipment, networking hardware, and control modules, as well as automated appliances where secure, high-density, and repeatable cable-to-board interconnects are valued. The AMP-LATCH header is compatible with both short and long latch configurations, enhancing its flexibility across different cable assemblies and strain relief requirements.
All materials used are chosen for durability and reliability in industrial settings, ensuring performance across a wide temperature and environmental range. It is a key passive component for complex electronic assemblies, ensuring minimal signal loss and reliable current transfer between subsystems in a PCB ecosystem.
Discover more solutions for your electronics integration needs in the PCB Header product category and explore the TE Connectivity brand for technologically advanced, field-proven interconnect solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this PCB header is 2.54mm, making it suitable for standard PCB designs.
This model accommodates 20 contacts organized in 2 rows, providing high connectivity density.
It supports a voltage rating of 250V and a current rating of 1.0A, suitable for various industrial and electronic applications.
The contacts are made of phosphor bronze and feature gold plating for enhanced conductivity and corrosion resistance.
This model is shrouded, which helps protect the contacts from mechanical damage and alignment issues during insertion.
It is compatible with Wire-to-Board connector systems, making it ideal for use with IDC ribbon cables.
Applications include PCs, business equipment, networking hardware, control modules, and automated appliances requiring secure cable-to-board interconnects.
The header includes military, center, and dual polarization features for secure and accurate mating, along with optional ejector latches for easy cable removal.
The country of origin for this product is India.
The specific weight and dimensions are not provided in the available data. Please check with the manufacturer for detailed specifications.
The shrouded design enhances connection reliability and reduces alignment errors during cable insertion, ensuring better performance in demanding environments.
Yes, this header is available with ejector latch options, which facilitate secure mating and easy cable removal.
