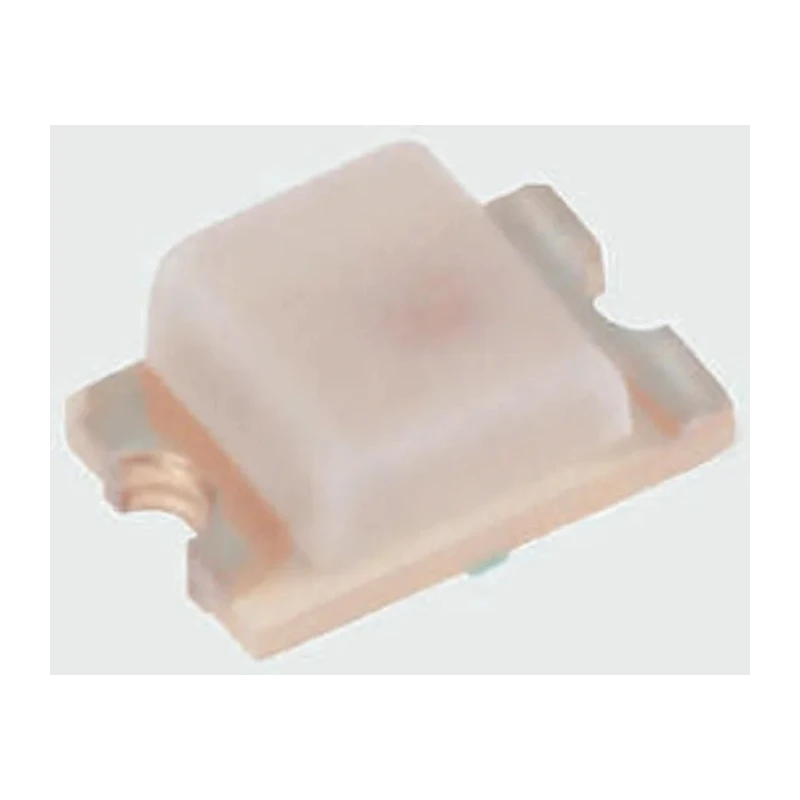

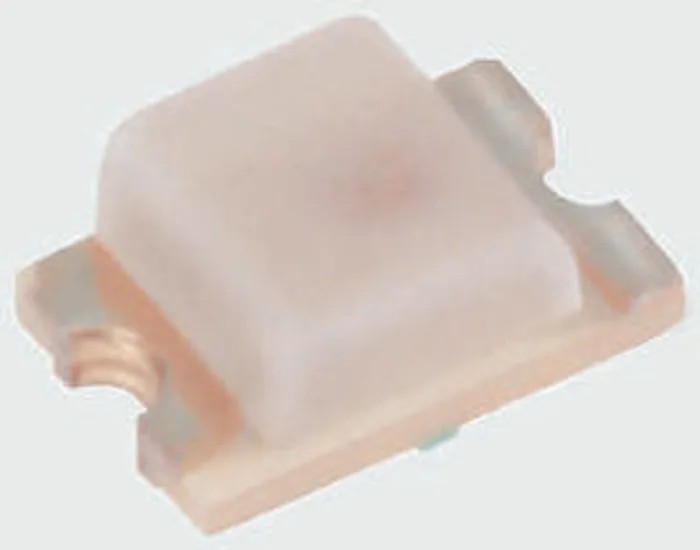

Broadcom Red SMD LED 2.1V 30mA 0603 Package Surface Mount HSMS-C190
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Model | HSMS-C190 |
| Mount Type | Surface |
| Series | HSMx-Cxxx |
| Maximum forward current | 30mA |
| Viewing angle | 130 to 170 ° |
| Package Type | 0603 |
| Standards/Approvals | RoHS |
| LED Colour | Red |
| Dominant Wavelength | 626nm |
| Forward Voltage | 2.1V |
| Number of Pins | 2 |
| Maximum Power Dissipation | 78mW |
| Lens Dimensions | 2 x 1.6 mm |
| Lens Shape | Rectangular |
| Lens Finish | Non-Diffused, Diffused, Clear |
Key Features
- Surface mount chip LED suitable for high-density electronic designs.
- Operates at a forward voltage of 2.1V and supports maximum forward current of 30mA.
- Compact industry-standard 0603 SMD package for automated assembly.
- Red LED color with dominant wavelength at 626nm for clear indication.
- Diffused, clear, or non-diffused optics for optimized light output.
- Wide viewing angle between 130 to 170 degrees for versatile visibility.
- Designed for keypad, LCD, push-button backlighting, and front panel indicators.
- RoHS-compliant with reliable performance and heat dissipation up to 78mW.
Product Description
Broadcom HSMS-C190 is a red surface mount chip LED designed for a wide range of electronic applications. Operating at a forward voltage of 2.1V and a maximum forward current of 30mA, this LED is well-suited for use in compact circuit layouts where efficient indication or backlighting is required.
The device utilizes an industry-standard 0603 SMD package (dimensions approximately 1.6 x 0.8mm), enabling high-density placement on PCBs and compatibility with automated manufacturing processes. Its lens features a rectangular shape, with clear, diffused, or non-diffused finishes available, ensuring optimal light diffusion and intensity for various designs.
The HSMS-C190 offers a dominant wavelength of 626nm for vibrant red color display, and its wide viewing angle (130 to 170 degrees) makes it versatile for indicators requiring visibility from different directions. The optical design and robust materials support maximum power dissipation of 78mW, ensuring reliable operation within temperature ranges from -40°C to +85°C.
Applications include keypad backlighting, push-button backlighting, LCD and symbol backlighting, and front panel indicator lights. Its RoHS compliance demonstrates adherence to environmental standards, while the surface mount nature allows efficient IR soldering and handling in industrial, commercial, and manufacturing environments.
Broadcom's industry-standard LED solutions cater to display, optoelectronic, and signal indication needs, providing high-performing, compact lighting components for electronics, instrumentation, and control panels.
Explore the full range of LEDs and optoelectronic components in the Electronics & Electricals category at EnvMart for advanced industrial and manufacturing requirements.
Explore more products in our LEDs - Light Emitting Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The HSMS-C190 LED operates at a forward voltage of 2.1V.
This model supports a maximum forward current of 30mA.
The 0603 package dimensions are approximately 1.6 x 0.8mm.
The dominant wavelength of this red LED is 626nm.
It has a wide viewing angle ranging from 130 to 170 degrees.
The lens finishes available for this LED include non-diffused, diffused, and clear.
The maximum power dissipation for the HSMS-C190 is 78mW.
Yes, the HSMS-C190 is RoHS-compliant, adhering to environmental standards.
The HSMS-C190 is manufactured in India.
This model uses a surface mount type for installation.
The HSMS-C190 LED has 2 pins.
