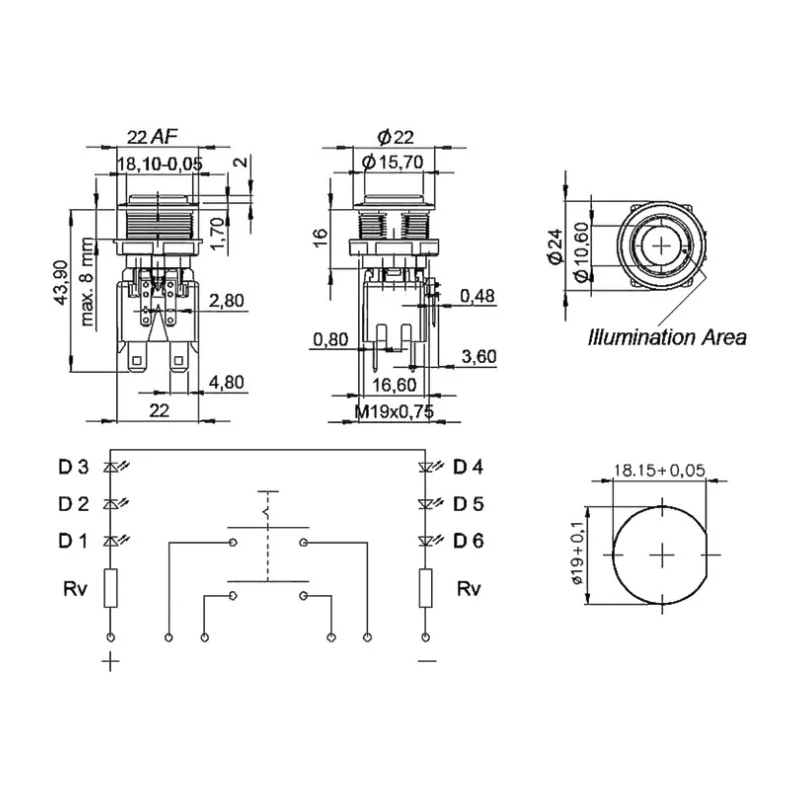

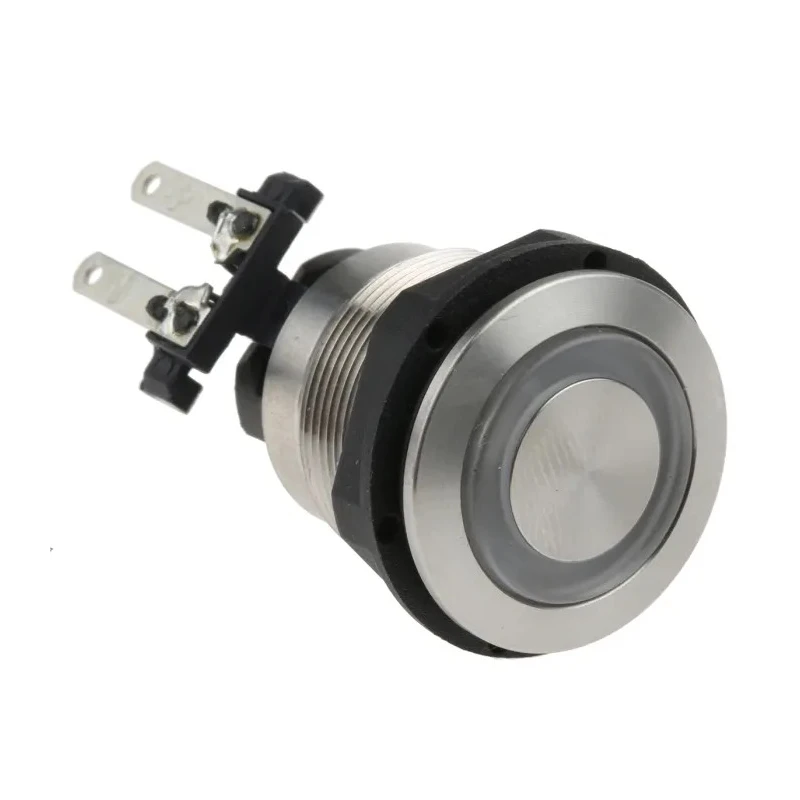

Schurter MSM LA 19 Series Push Button Switch, Latching, Panel Mount, 19 mm Cutout, DPDT, Green LED, IP00 1241.6824.1122000
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schurter |
| Height | 22mm |
| IP Rating | IP00, IP64 |
| Width | 22mm |
| Mount Type | Panel |
| Series | MSM LA 19 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -20°C |
| Panel Cutout Size | 19 mm |
| Shock Resistance | IK07 |
| Terminal type | Tab |
| Standards/Approvals | RoHS, CE |
| LED Colour | Green |
| Switch Operation | Latching |
| Actuator Colour | Natural |
| Contact DC Voltage | 125V dc |
| Actuator Style | Round |
| Switch Contact Current | 12A |
| Contact AC Voltage | 125V ac |
Key Features
- Latching DPDT push button switch for versatile industrial control circuits.
- 19 mm panel cutout and round actuator provide standard integration and ergonomic operation.
- Green LED point illumination with optical status indicator and 180° viewing angle.
- IP00 and IP64 dust and water-resistant stainless steel housing, IK07 shock-resistant.
- Supports 125V AC and 125V DC operation with 12A switch contact current.
- Quick-connect tab terminals enable efficient installation and maintenance.
- Wide operating temperature range from -20°C to 85°C for varied environments.
- Mechanical life rated for up to 150,000 operations, ideal for frequent actuation.
Product Description
The Schurter MSM LA 19 Series push button switch, model 1241.6824.1122000, is a high-quality latching switch designed for panel mounting in demanding industrial, commercial, and control cabinet environments. Its robust stainless steel construction is paired with IP64 sealing, making it suitable for harsh conditions where dust and water resistance are essential.
This switch features a DPDT contact configuration, which allows for versatile circuit designs and control functions. The actuator is round and natural-colored, providing ergonomic handling. The panel cutout size of 19 mm ensures compatibility with standard industrial panels, making it easy to integrate during equipment installation or upgrades.
The switch incorporates a green LED point illumination, delivering clear, visual status indication. Its operating voltage support includes 125V AC and 125V DC, and the contact current is rated at 12A, ensuring reliable operation across various machinery and automation systems.
For user safety and equipment protection, the MSM LA 19 provides IK07 shock resistance, meaning it withstands accidental impacts and anti-vandal requirements. Quick-connect tab terminals facilitate fast and secure wiring during installation or service. The mechanical life is rated up to 150,000 operations, making this switch ideal for applications with frequent actuation cycles.
The operational ambient temperature ranges from -20°C to 85°C, allowing functionality in refrigerated, outdoor, and heated cabinet scenarios. Optical indication is visible at a wide 180° angle, enhancing usability in environments with diverse mounting positions.
Major applications include industrial control panels, automation equipment, HVAC controls, access systems, and commercial installations requiring both durability and clear operator feedback. Compliance with RoHS and CE standards ensures safety and environmental friendliness.
Browse more high-performance Push Button Switches and control components from Schurter and other trusted brands at EnvMart to meet the needs of industrial, laboratory, and automated systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch features a DPDT (Double Pole Double Throw) contact configuration, allowing for versatile circuit designs and control functions.
The maximum operating temperature is 85°C, making it suitable for various environments including heated cabinets.
This model requires a panel cutout size of 19 mm for proper installation in standard industrial panels.
The switch has a rated contact current of 12A, ensuring reliable operation across various applications.
The switch has IP00 and IP64 ratings, providing protection against dust and water in different environments.
It is rated for up to 150,000 operations, making it suitable for applications requiring frequent actuation.
This model uses quick-connect tab terminals, facilitating fast and secure wiring during installation or maintenance.
The switch is rated IK07 for shock resistance, which means it can withstand accidental impacts and is suitable for anti-vandal applications.
The LED indicator is green, providing clear visual status indication for the switch's operation.
It complies with RoHS and CE standards, ensuring safety and environmental friendliness.
The minimum operating temperature is -20°C, allowing functionality in refrigerated or outdoor environments.
This switch is suitable for industrial control panels, automation equipment, HVAC controls, and access systems, among others.
