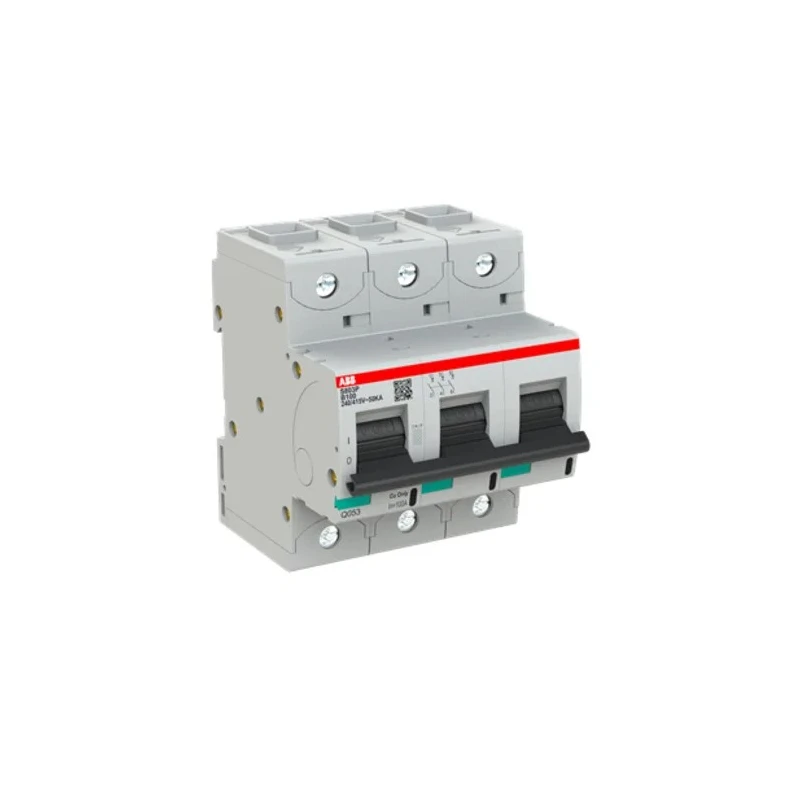

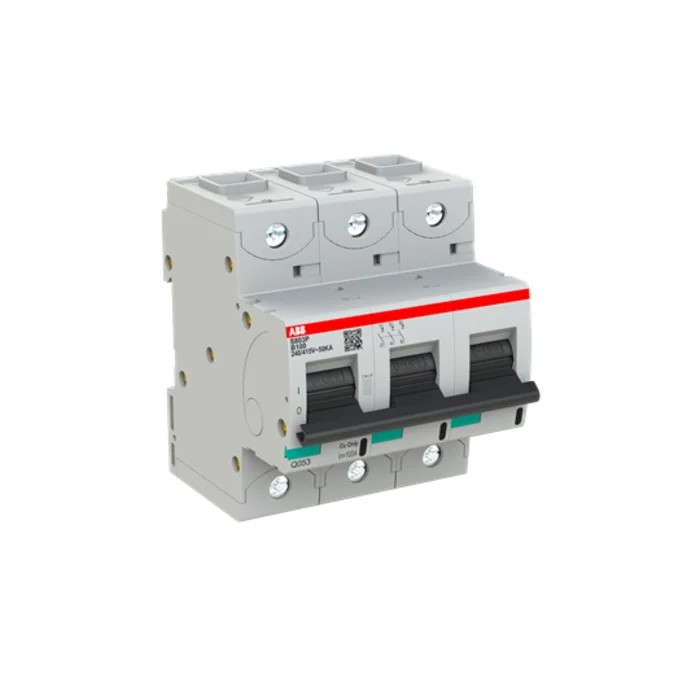

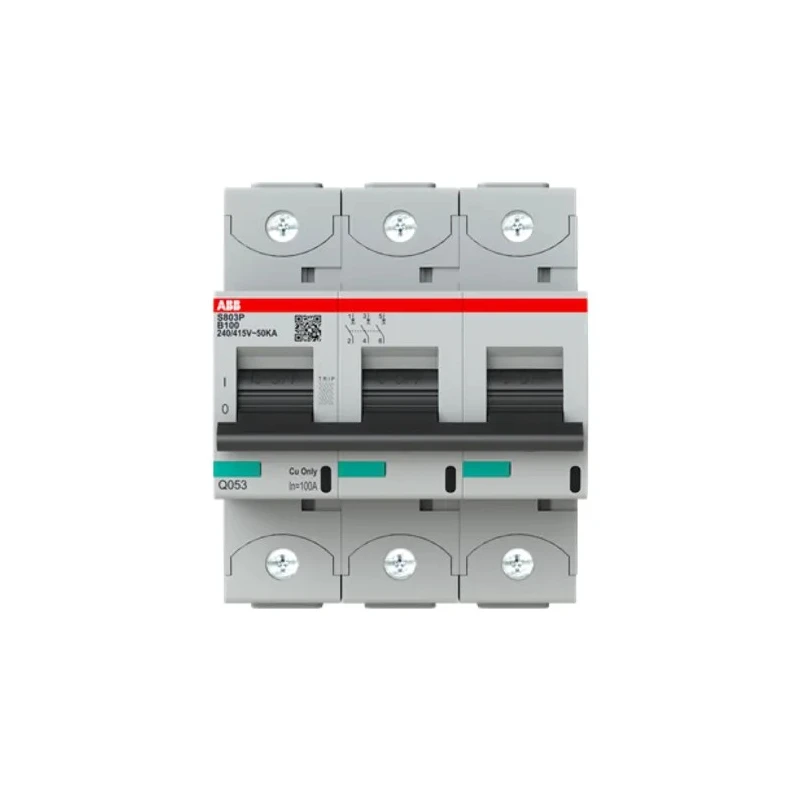

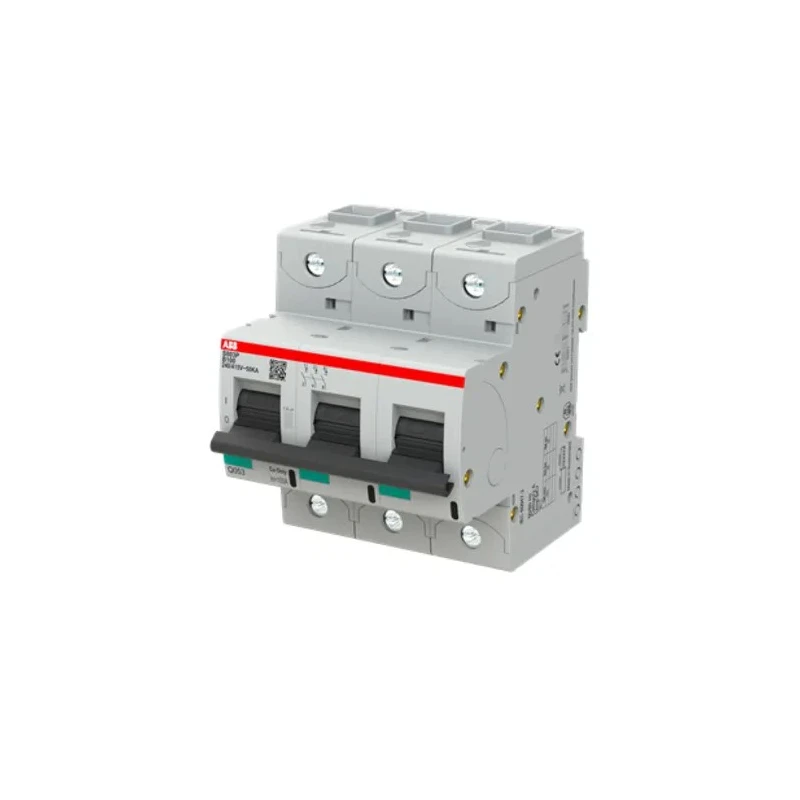

ABB S800S Miniature Circuit Breaker, 3-Pole, 100A, Type B, 690V AC, 250V DC, 50kA, High Performance 2CCG001221R0001

ABB S800S Series Miniature Circuit Breaker model 2CCG001221R0001 offers advanced protection for electrical circuits in a range of environments. Engineered for high performance, this MCB features a robust 3-pole configuration and a current rating of 100A, ensuring reliable interruption of electrical faults in demanding industrial, commercial, and infrastructure applications.

This breaker is tailored with Type B tripping characteristics, which are optimal for resistive and moderately inductive loads. It supports rated voltages up to 690V AC and 250V DC, making it versatile enough for diverse electrical systems such as industrial automation networks, mechanical platforms with variable loads, and panel boards utilized across residential and non-residential buildings.

Its 50kA breaking capacity guarantees effective interruption of high fault currents, thereby improving system integrity and reducing the risks and downtime associated with electrical faults. The electromagnetic and thermomagnetic tripping mechanisms work together to provide precise fault detection and rapid response.

Mounting is quick and efficient thanks to the DIN rail design and screw terminal connections. The toggle switch reset actuator offers simple and clear operation for system maintenance. The compact form factor, with width (81 mm), depth (82.5 mm), and height (95 mm), makes it especially suitable for installations where panel space is limited.

Safety and reliability are bolstered by an IP20 protection rating and adherence to international standards IEC/EN 60947-2 and IEC/EN 60898-1. The device accommodates flexible conductors up to 50 mm² and rigid conductors up to 70 mm², complementing a wide range of installation scenarios.

Applications include industrial automation, commercial and residential power distribution, mechanical systems with varying power demands, and electrical panels in energy infrastructure.

The ABB S800S MCB is manufactured in Switzerland, ensuring high-quality engineering and compliance with rigorous performance standards. High-performance circuit breaker for demanding electrical protection requirements. 3-pole configuration and 100A current rating for robust power management.

Rated for 690V AC and 250V DC, supporting versatile electrical system integration. Type B tripping mechanism ideal for resistive and moderate inductive loads. 50kA breaking capacity minimizes risk and component damage during fault events.

Efficient DIN rail mounting, screw terminals, and toggle switch actuator for ease of use. Electromagnetic and thermomagnetic sensing deliver precise safety operation. Compact design fits panels with size or space constraints.

IP20 protection enhances safety in installation. Complies with international standards for performance and reliability. For guaranteed quality and system resilience, explore ABB's complete circuit breaker range in Electronics & Electricals category on EnvMart.
