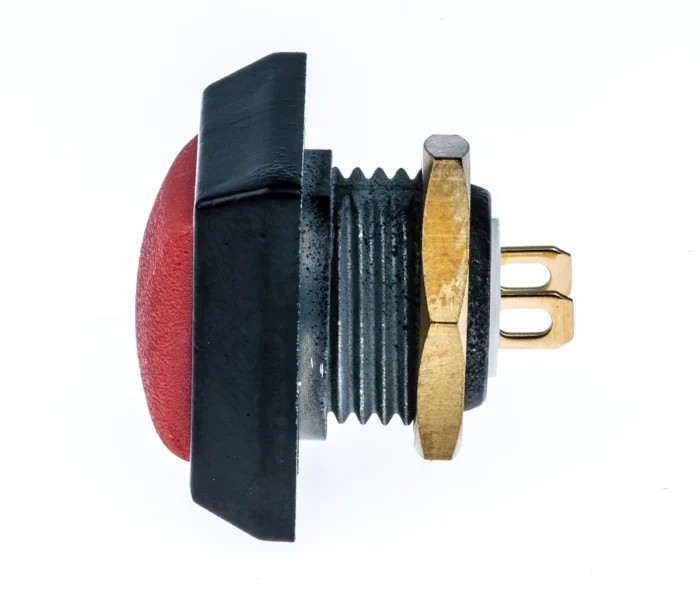

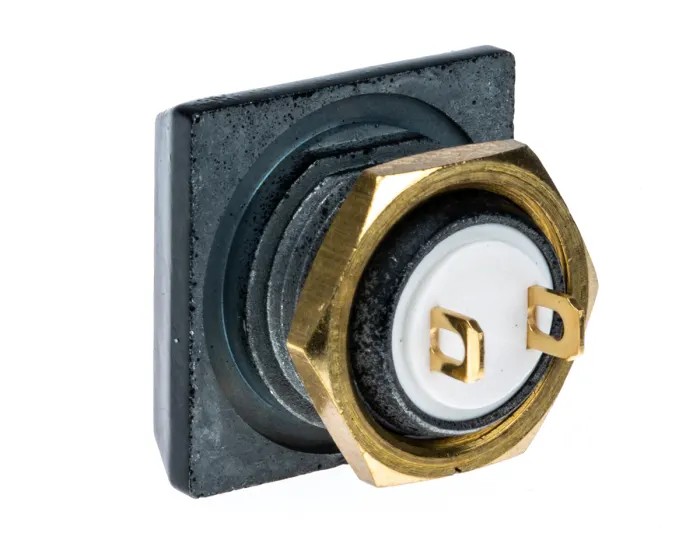

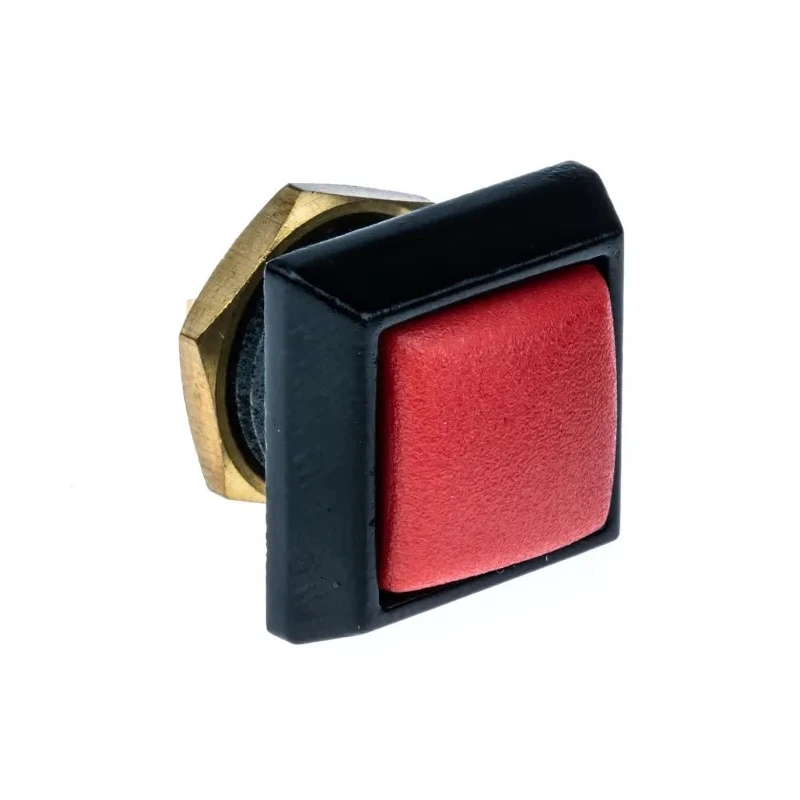

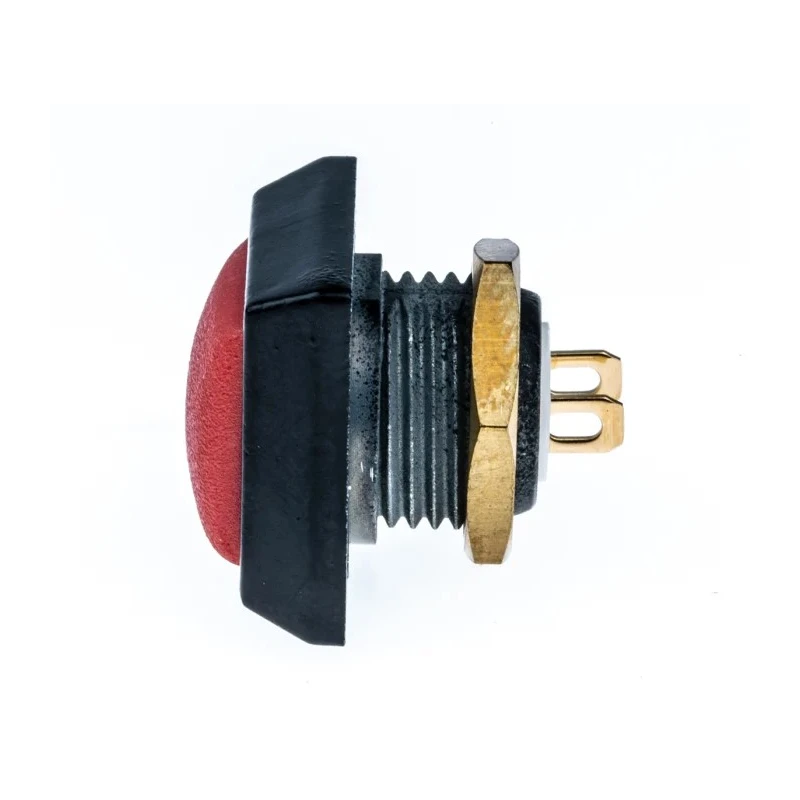

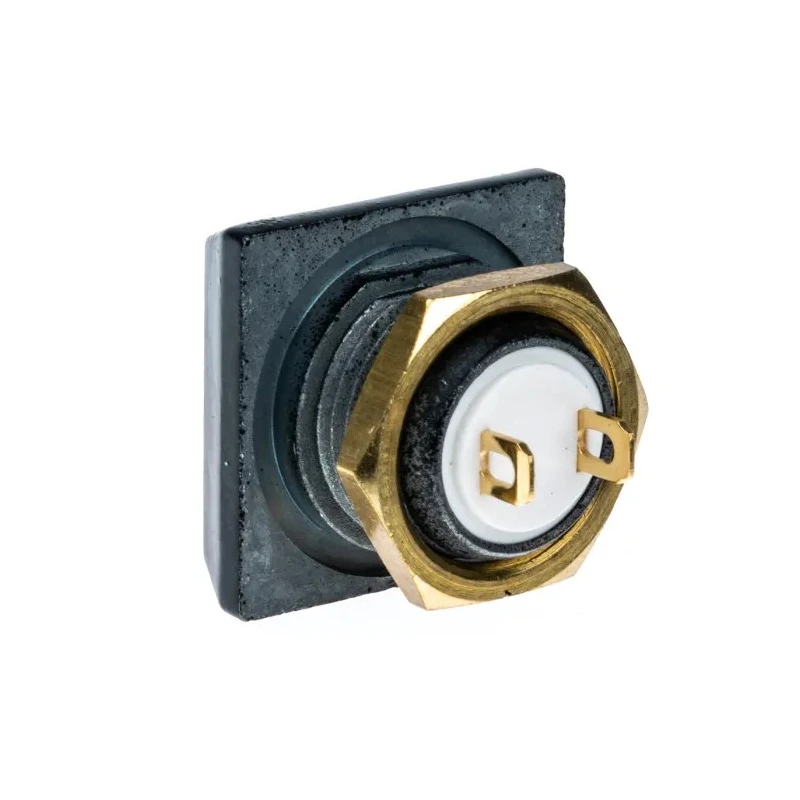

ITW Switches 59 Series Miniature Push Button Switch Panel Mount SPST Square Red Momentary IP67 50V DC 125V AC 59-212
Specifications
| Country of Origin | Tunisia |
|---|---|
| Brand | ITW Switches |
| Model | 59-212 |
| IP Rating | IP67 |
| Mount Type | Panel |
| Series | 59 |
| Maximum Operating Temperature | 125°C |
| Contact Configuration | SPST |
| Switch Configuration | On-Off |
| Minimum Operating Temperature | -55°C |
| Panel Cutout Size | 13.6 mm |
| Terminal type | Solder |
| Standards/Approvals | CSA, UL |
| Switch Operation | Momentary |
| Actuator Colour | Red |
| Contact DC Voltage | 50V dc |
| Actuator Style | Square |
| Switch Contact Current | 400mA |
| Contact AC Voltage | 125V ac |
| ITW Miniature Push Button Switch, Momentary, Panel Mount, SPSTBrand | ITW |
Key Features
- Miniature push button switch suitable for panel mounting.
- SPST configuration supports simple On-Off operation.
- Red square actuator style for easy user interaction.
- Momentary action ensures contact only while pressed.
- IP67 rated for dust and temporary immersion protection.
- Supports contact voltages up to 50V DC, 125V AC.
- Solder terminal interface for secure wiring.
- Non-illuminated style with clear LED option available in the series.
Product Description
The ITW Switches 59-212 is a miniature, panel mount push button switch engineered for demanding applications. Its panel-sealed SPST configuration provides a reliable On-Off function, and the square red actuator ensures both ergonomic usability and visual clarity. Designed for momentary action, the switch makes electrical contact only when pressed, returning to its default state upon release. This is ideal for control and instrumentation interfaces.
Robustly constructed, the switch offers IP67 environmental sealing, guaranteeing protection against dust ingress and immersion in water up to 1 meter depth for up to 30 minutes. The rugged design allows it to operate reliably across a wide temperature range from -55°C to 125°C, making it suitable for both indoor and outdoor, industrial, and commercial installations.
Electrical ratings include support for 50V DC and up to 125V AC, while a maximum contact current of 400mA ensures compatibility with a variety of control devices and signal circuits. The solder terminal interface allows for secure wiring and straightforward integration into panel assemblies and custom enclosures.
The switch is suited for use cases such as communications equipment, data entry terminals, military environments, test and measurement instrumentation, mass transport controls, and environmentally demanding keypads. Its high environmental specification, non-spark material options, and gold contacts enhance reliability and service life, making it a premium solution for harsh conditions.
Series variations provide options for both round and square bezels, non-illuminated or illuminated styles, with a range of custom actuator colours and clear LED indicators available depending on configuration. This model is non-illuminated, features a hard-wearing PBT or zinc alloy body, and complies with CSA and UL standards for safety and quality.
Whether in industrial automation, laboratory instrumentation, process control, or mass transit system panels, ITW Switches 59-212 provides dependable performance and tactile user feedback.
To browse the full range of Push Button Switches or other ITW Switches products, continue within the EnvMart Electronics & Electricals > Switches & Sockets category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features an SPST (Single Pole Single Throw) contact configuration, supporting a simple On-Off operation.
The maximum operating temperature for the 59-212 is 125°C, allowing it to function effectively in high-temperature environments.
It has an IP67 rating, providing protection against dust ingress and temporary immersion in water up to 1 meter depth for up to 30 minutes.
The switch supports contact voltages up to 50V DC and 125V AC, making it compatible with a variety of electrical applications.
The actuator style is square and it is colored red, designed for ergonomic usability and visual clarity.
This model has a maximum contact current rating of 400mA, suitable for various control devices and signal circuits.
The 59-212 utilizes a solder terminal interface for secure wiring and straightforward integration into panel assemblies.
The minimum operating temperature for this switch is -55°C, allowing it to operate reliably in extremely cold conditions.
This model complies with CSA and UL standards, ensuring safety and quality in its design and operation.
The required panel cutout size for the 59-212 is 13.6 mm, facilitating proper installation in panel mounts.
It is suitable for various applications including communications equipment, military environments, and test and measurement instrumentation.
The switch operates on a momentary action basis, making electrical contact only while pressed and returning to its default state upon release.
