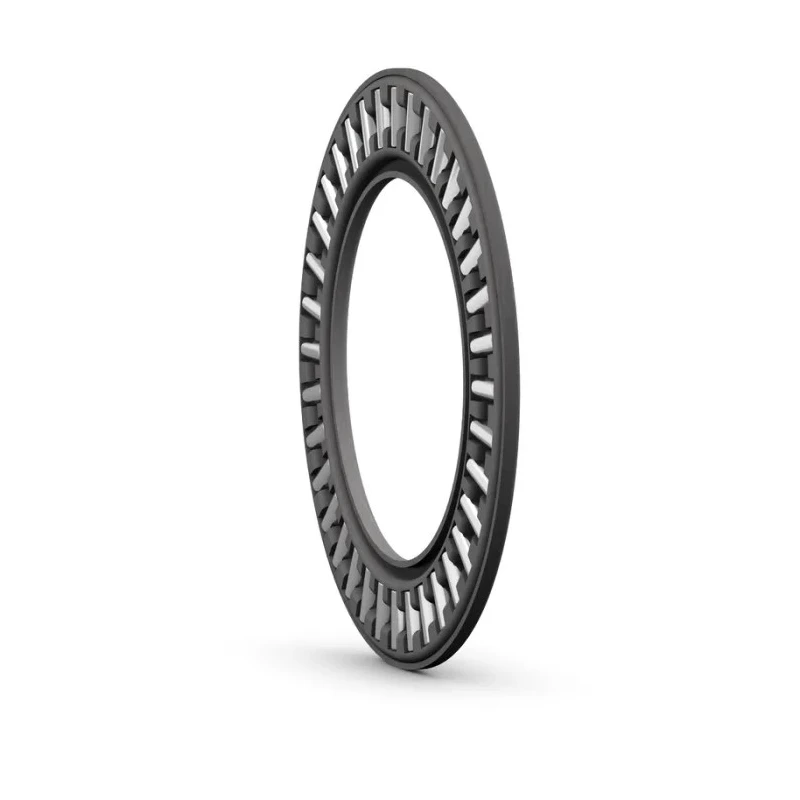

SKF Needle Roller Thrust Bearing 17mm ID, 30mm OD, Sheet Steel Cage, Carbon Chromium Steel, AXK 1730

SKF's AXK 1730 is a needle roller thrust bearing specifically engineered to accommodate substantial axial loads in a compact footprint. Its 17mm inside diameter and 30mm outside diameter make it ideal for directly mounting onto shafts in industrial machinery. The sheet steel cage offers high strength while maintaining low weight, facilitating efficient load distribution and minimizing energy losses.

This bearing is manufactured from through hardening carbon chromium steel, ensuring long service life and resistance to deformation even under heavy loads. The design features rollers perpendicular to the bore axis, allowing the AXK 1730 to withstand high axial and shock loads commonly faced in industrial applications.

The parallel bore means this bearing can be installed without the need for adapter sleeves or additional alignment components, simplifying installation in automated processes. With an open end type, adjacent machine faces can act as raceways, further reducing space requirements compared to conventional thrust washers.

Rated for a dynamic load of 11 kN and static load of 40.5 kN, the bearing is suitable for demanding environments such as pulp and paper processing and automatic transmission systems. Its high-speed capability is evident from the maximum speeds of 3200 rpm (grease) and 4300 rpm (oil), allowing efficient operation even in high-performance systems. The limiting speed is specified at 9500 rpm.

AXK 1730 complies with multiple international standards, including ISO 5753, ISO 582, ISO 492, and DIN 17 230, meeting strict requirements for rotary bearings. The country of origin is Germany, guaranteeing precision engineering and high manufacturing standards.

Applications span industrial machinery, laboratory setups requiring axial load management, construction equipment, and commercial hydraulic systems. Its high load capacity and reliable performance make the AXK 1730 a robust solution for engineers designing advanced mechanical systems.

Compact needle roller thrust bearing designed for high axial loads. 17mm inner diameter and 30mm outer diameter for shaft-mounting applications. Sheet steel cage delivers high strength and reduced weight. Constructed from through hardening carbon chromium steel for durability.

Open end configuration without centring flange for direct shaft mounting. Dynamic load rating of 11 kN and static load rating of 40.5 kN. Maximum speed with grease is 3200 rpm, and with oil is 4300 rpm. Suitable for pulp and paper processing and automatic transmission systems.

Parallel bore for easy installation without adapter sleeves. Complies with ISO and DIN standards for rotary bearings and seals. To explore more roller bearings and related products from SKF, browse the Roller Bearings category at EnvMart.
