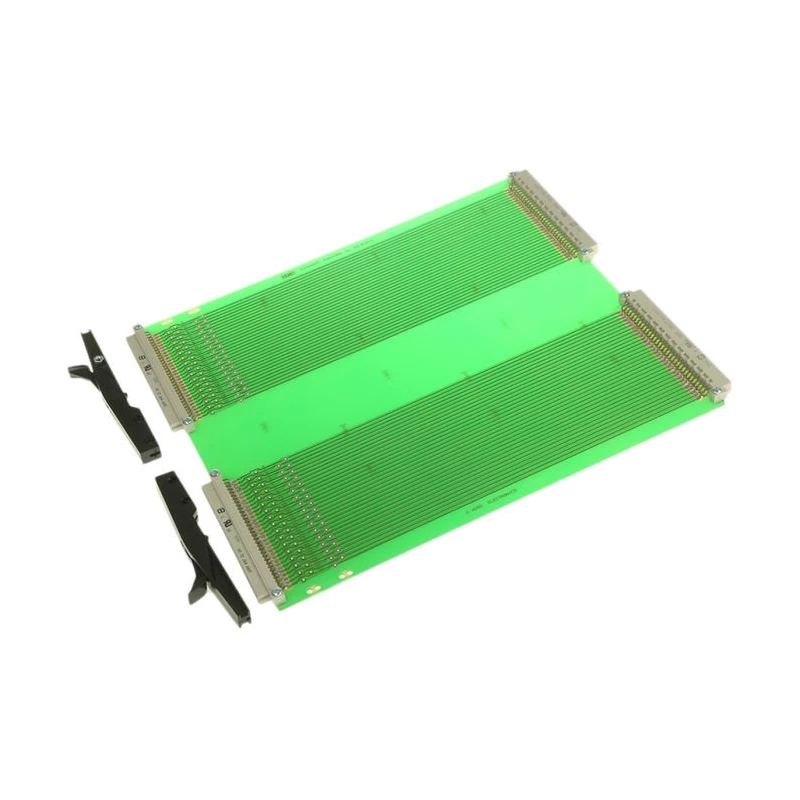

Vero Technologies 64 Way 2 Eurocard Extender Board FR4, 300 mm x 233 mm, Double-Sided, DIN 41612, 09-0106

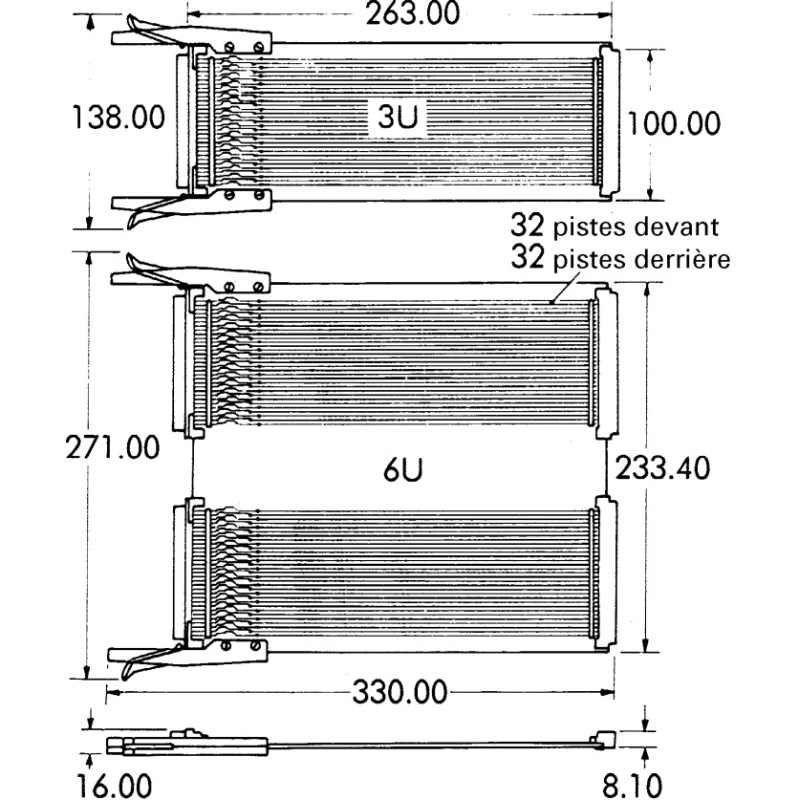

Vero Technologies presents the 09-0106 Eurocard Extender Board, a specialized double-sided PCB designed for reliable testing and prototyping of electronic circuits. Engineered with 64 contacts, this extender board accommodates complex Eurocard-based systems, supporting robust signal processing and circuit integration.

Built with FR4 epoxy glass fabric laminate, the board achieves high insulation and structural integrity required in professional laboratory and industrial setups. Its 300 mm length and 233 mm width ensure compatibility with standard Eurocard formats, while a board thickness of 40 mm further contributes to its mechanical stability.

The board is equipped with DIN 41612 type B connectors, offering dependable connections suitable for PC and VME bus architectures. Gold-plated edge connector fingers (1.5 microns) minimize contact resistance and support stable signal transmission. Solder resist coating on both sides prevents solder bridging and finger staining, maintaining clear test points and efficient operation.

For ease of prototyping, diameter holes are pre-drilled on a 2.54 mm (0.1 in.) matrix, allowing quick design modifications, circuit expansion, and custom adaptation. Microboard ground-plane pattern and comprehensive solder mask protection enhance screening effectiveness and support glitch-free high-speed operations. The colander ground plane on the component side maximizes electromagnetic compatibility and preserves circuit integrity during signal transfers.

This Eurocard extender board is supplied with support/eject mechanisms and terminal assemblies. These features allow terminal pads on each connector track for efficient attachment of test probes, typically used for voltage and signal measurement during debugging and validation.

Ideal for industrial applications, laboratory testing environments, PC/compatible prototyping, and advanced electronics design and development. The product complies with DIN 41612 standards and incorporates BS 4584 part 3/16 material protocols, making it suitable for demanding research and manufacturing scenarios.
