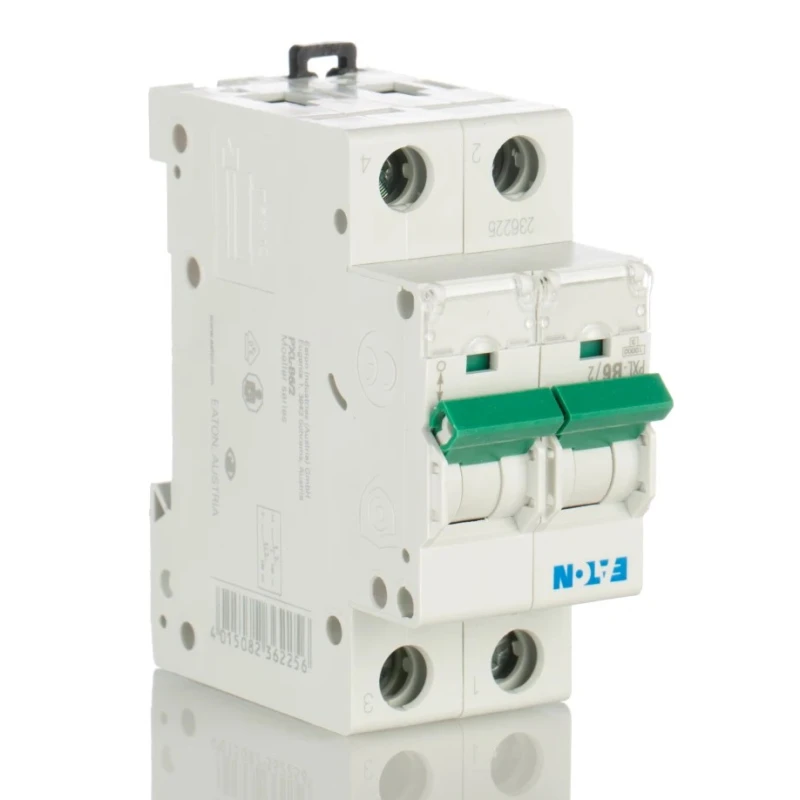

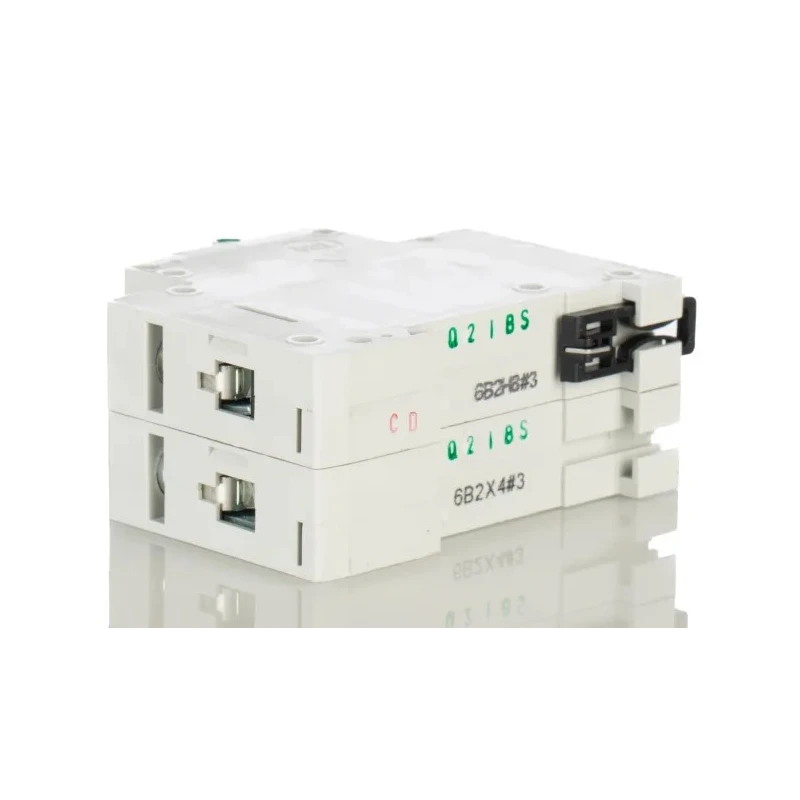

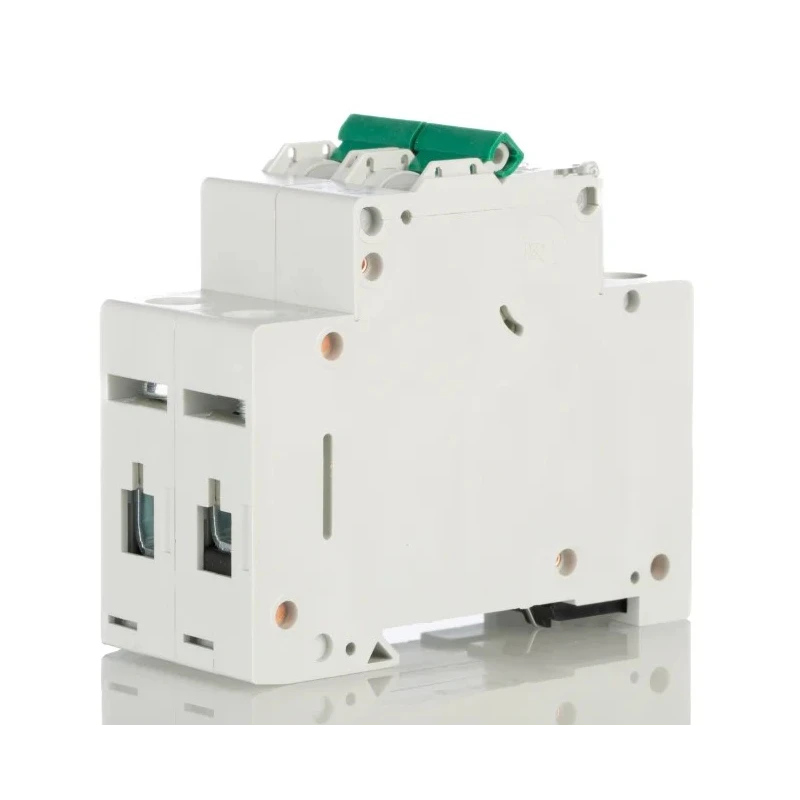

Eaton xPole PXL Miniature Circuit Breaker 2-Pole 6A Type B 400V AC 48V DC 10kA DIN Rail IP20 236225 PXL-B6/2
Specifications
| Country of Origin | Austria |
|---|---|
| Range | xPole |
| Brand | Eaton |
| Height | 35mm |
| Model | 236225 PXL-B6/2 |
| Depth | 60mm |
| IP Rating | IP20 |
| Width | 80mm |
| Mount Type | DIN Rail |
| Current Rating | 6A |
| Series | PXL |
| Breaking Capacity | 10kA |
| Number of Poles | 2 |
| Standards/Approvals | EN 60898, IEC |
| Rated AC Voltage | 400V ac |
| Rated DC Voltage | 48V dc |
| Tripping Characteristics | Type B |
| Tripping Mechanism | Electromagnetic |
| Reset Actuator Type | Toggle Switch |
| Break Time | Instantaneous |
Key Features
- Designed for protection in residential and commercial installations.
- Features a Type B tripping curve, ideal for light applications.
- 10kA breaking capacity ensures reliable network safety.
- Dual terminals accept both busbars and cables for versatile connections.
- DIN rail mounting simplifies installation and replacement.
- IP20 finger-safe enclosure for enhanced safety.
- Toggle switch actuator provides easy manual reset.
- Electromagnetic tripping mechanism for fast fault response.
Product Description
The Eaton xPole PXL Miniature Circuit Breaker, model 236225 PXL-B6/2, is a high-reliability protection device engineered for modern electrical systems in residential, commercial, and light industrial environments. It offers dual-pole protection with a 6A current rating, a Type B tripping characteristic, and supports both 400V AC and 48V DC operation, making it versatile for a range of applications.
With a 10kA breaking capacity, the device is capable of handling substantial power surges, limiting downstream equipment damage and maintaining network stability. The Type B tripping curve is tailored for environments where tripping occurs at three to five times the rated current, suited for resistive and light inductive loads. This makes it an optimal choice for lighting circuits and standard power outlets.
Installation is straightforward using the DIN rail mounting system, with a compact footprint of 60mm depth, 35mm height, and 80mm width. The breaker features dual terminals compatible with busbar or cable wiring, improving flexibility during panel assembly or retrofitting.
Safety is further enhanced by an IP20 enclosure, providing finger-safe protection and reducing electrical shock risks. The red-green indicator offers immediate visual confirmation of contact positions, and the electromagnetic tripping mechanism guarantees quick isolation during fault conditions. Resetting is simple with the toggling switch actuator, ensuring rapid restoration of circuit operation.
Compliance with EN 60898 and IEC standards demonstrates adherence to global safety and performance benchmarks. Approvals certify this MCB for installation in professionally managed networks, with robust construction suitable for high-traffic or sensitive sites such as offices, schools, and residential buildings.
Typical use cases include power distribution panels, protection of lighting and appliance circuits, and integration into modular switchboards where compactness and operational reliability are paramount.
Browse more Eaton circuit protection products and Miniature Circuit Breakers in EnvMart's Electronics & Electricals category for comprehensive building and facility electrical solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The breaking capacity of this model is 10kA, which allows it to handle substantial power surges effectively.
This unit has a current rating of 6A, making it suitable for various light applications.
It supports a rated AC voltage of 400V and a rated DC voltage of 48V.
It utilizes an electromagnetic tripping mechanism for quick isolation during fault conditions.
The Eaton xPole PXL has an IP20 rating, providing finger-safe protection.
This model is designed for DIN rail mounting, which simplifies installation and replacement.
The dimensions are 80mm in width, 60mm in depth, and 35mm in height.
It features a Type B tripping characteristic, suitable for resistive and light inductive loads.
It complies with EN 60898 and IEC standards, ensuring adherence to global safety and performance benchmarks.
It is equipped with a toggle switch actuator for easy manual reset.
Typical applications include power distribution panels, protection of lighting and appliance circuits, and integration into modular switchboards.
The country of origin for this model is Austria.
