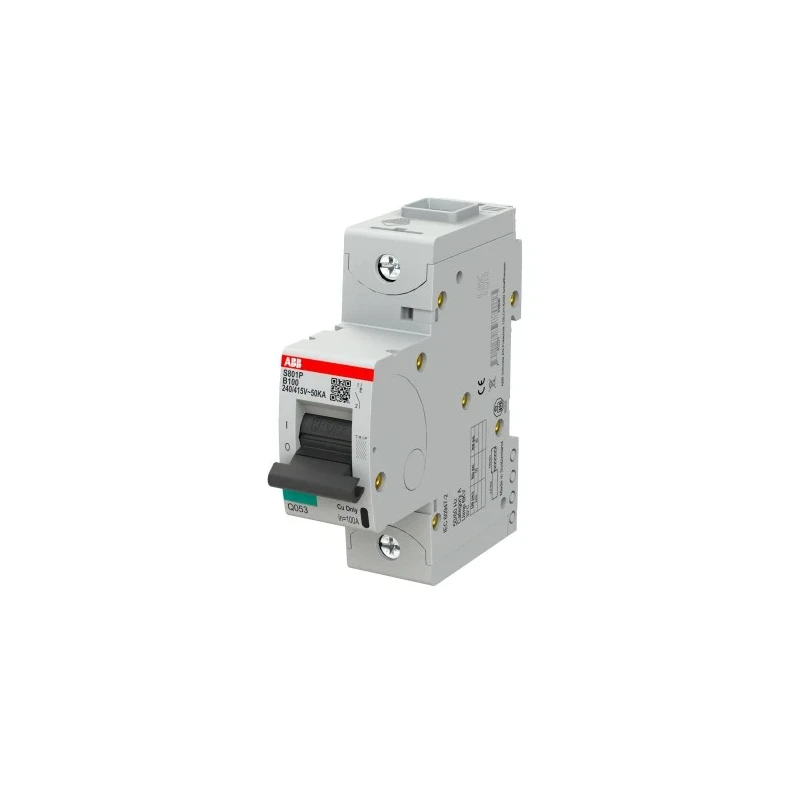

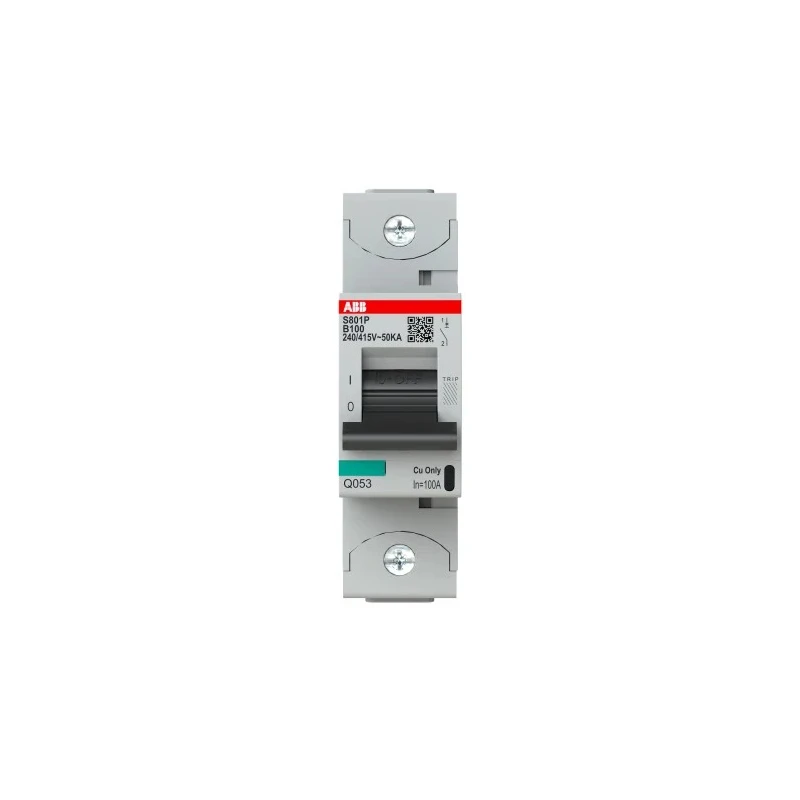

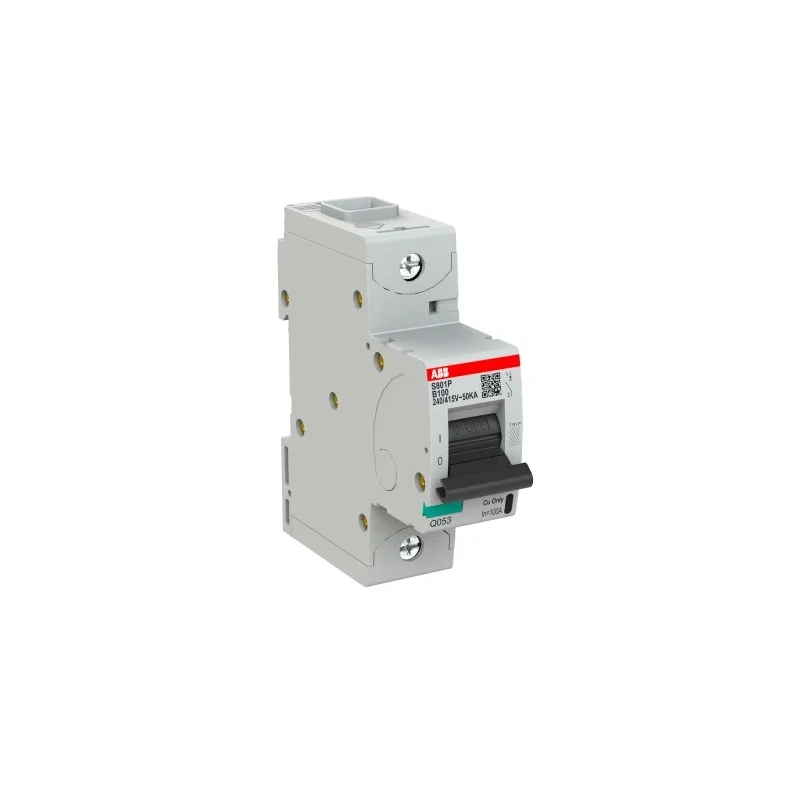

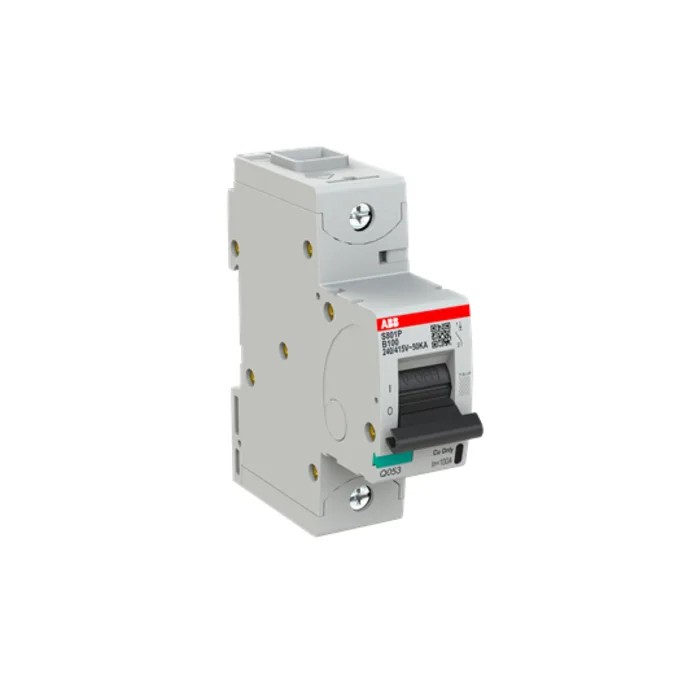

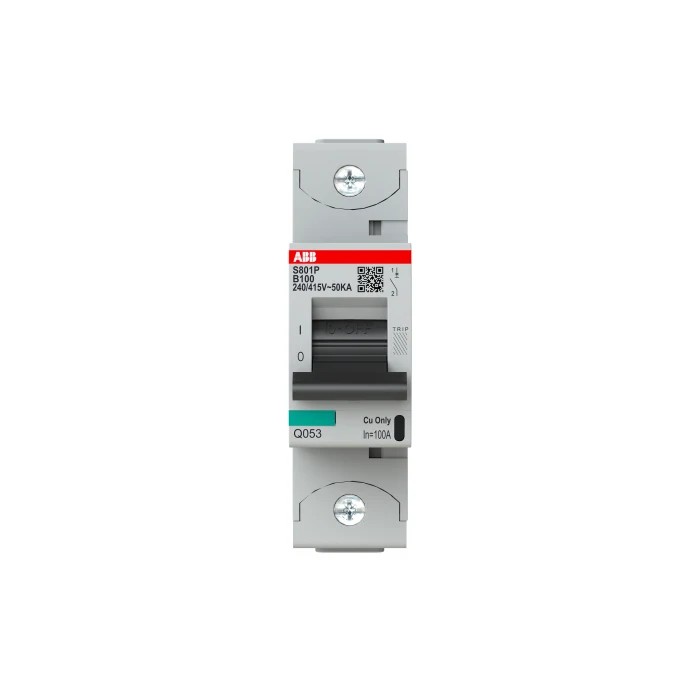

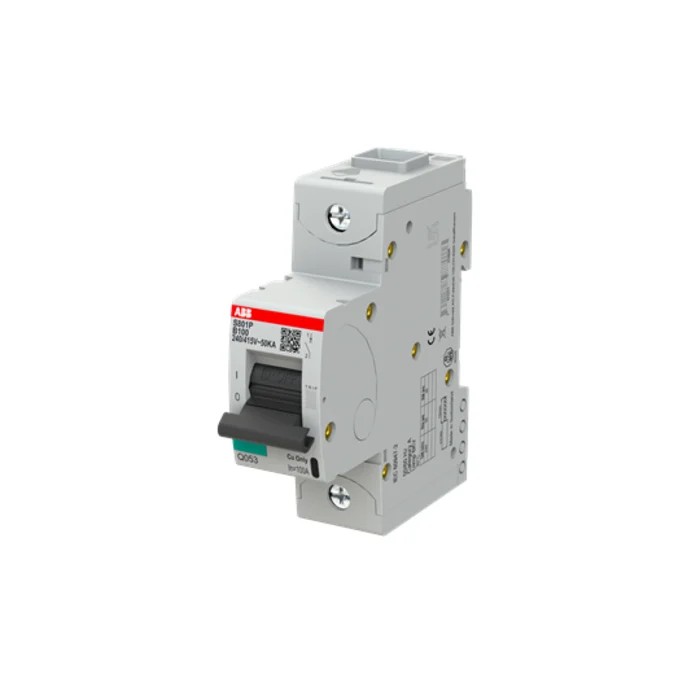

ABB S800N Miniature Circuit Breaker 1-Pole 100A Type B 690V AC 125V DC 36kA Breaking Capacity 2CCG001215R0001
Specifications
| Country of Origin | Switzerland |
|---|---|
| Range | High Performance |
| Brand | ABB |
| Height | 95mm |
| Model | 2CCG001215R0001 |
| Depth | 88.5mm |
| IP Rating | IP20 |
| Width | 26mm |
| Mount Type | DIN Rail |
| Current Rating | 100A |
| Series | S800N |
| Terminal type | Screw |
| Breaking Capacity | 36kA |
| Number of Poles | 1 |
| Standards/Approvals | IEC/EN 60947-2, IEC/EN 60898-1 |
| Rated AC Voltage | 690V ac |
| Rated DC Voltage | 125V dc |
| Tripping Characteristics | Type B |
| Tripping Mechanism | Electromagnetic, Thermomagnetic |
| Reset Actuator Type | Toggle Switch |
Key Features
- Compact miniature circuit breaker for DIN rail installation.
- Supports a high current rating of 100A for reliable circuit protection.
- Type B tripping characteristic for standard overcurrent applications.
- 36kA breaking capacity manages high fault currents.
- Suitable for both 690V AC and 125V DC electrical systems.
- Toggle switch actuator simplifies reset operations.
- Electromagnetic and thermomagnetic tripping mechanism ensures fast response.
- Complies with IEC/EN 60947-2 and IEC/EN 60898-1 standards.
Product Description
ABB S800N Series Miniature Circuit Breaker model 2CCG001215R0001 is engineered for high-performance electrical circuit protection, supporting a 1-pole configuration with a 100A current rating. It is designed for DIN rail mounting, making it suitable for modern distribution boards.
This compact MCB provides robust protection against overcurrent situations with a Type B tripping characteristic. The high breaking capacity of 36kA delivers reliability in demanding electrical environments, effectively managing high fault currents in both AC and DC installations (690V AC and 125V DC).
The toggle switch actuator allows straightforward manual resetting after a trip, ensuring user convenience. With an electromagnetic and thermomagnetic tripping mechanism, this device guarantees rapid and accurate circuit isolation when required.
Safety and construction quality have been prioritized. The product complies with IEC/EN 60947-2 and IEC/EN 60898-1 standards, offering ensured performance and consistent operation. Its IP20 rating denotes protection against finger contact and solid objects over 12mm, ideal for industrial and commercial environments.
This ABB MCB features screw terminals for secure connection and is housed in a durable enclosure measuring 95mm in height, 88.5mm in depth, and 26mm in width. It maintains reliable operation across wide ambient temperature ranges (-25°C to +60°C), suited for varied climates and facility requirements.
Typical applications include motor and lighting circuit protection, electrical distribution boards, and installations requiring high breaking capacities and compact footprints. The S800N Series is favored in industrial, commercial, and construction sectors for its reliability, safety compliance, and user-friendly design.
Explore more ABB Miniature Circuit Breakers and high-performance electrical protection devices in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 100A, suitable for reliable circuit protection in various applications.
It features a breaking capacity of 36kA, effectively managing high fault currents in electrical systems.
This unit supports a rated AC voltage of 690V and a rated DC voltage of 125V, making it versatile for different electrical installations.
It has a Type B tripping characteristic, designed for standard overcurrent applications.
The ABB S800N is designed for DIN rail mounting and has dimensions of 95mm in height, 88.5mm in depth, and 26mm in width.
It has an IP20 rating, providing protection against finger contact and solid objects over 12mm.
It features screw terminals for secure and reliable connections in electrical installations.
It operates reliably across a wide ambient temperature range of -25°C to +60°C, suitable for various climates.
This model complies with IEC/EN 60947-2 and IEC/EN 60898-1 standards, ensuring safety and performance.
It features a toggle switch actuator, simplifying the manual reset process after a trip.
This miniature circuit breaker is typically used for motor and lighting circuit protection, as well as in electrical distribution boards.
It employs both electromagnetic and thermomagnetic tripping mechanisms for fast and accurate circuit isolation.
