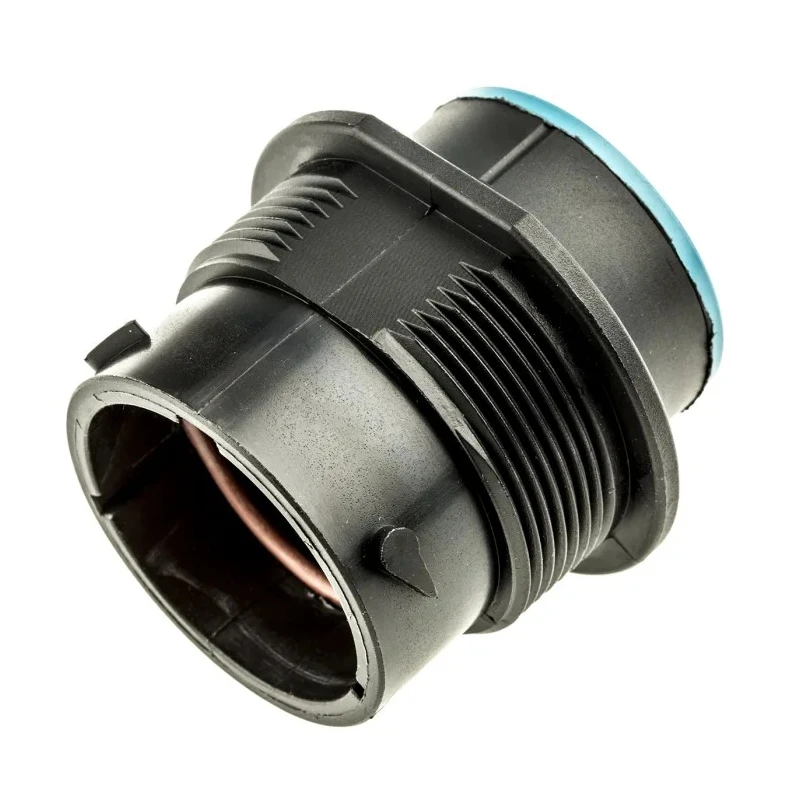

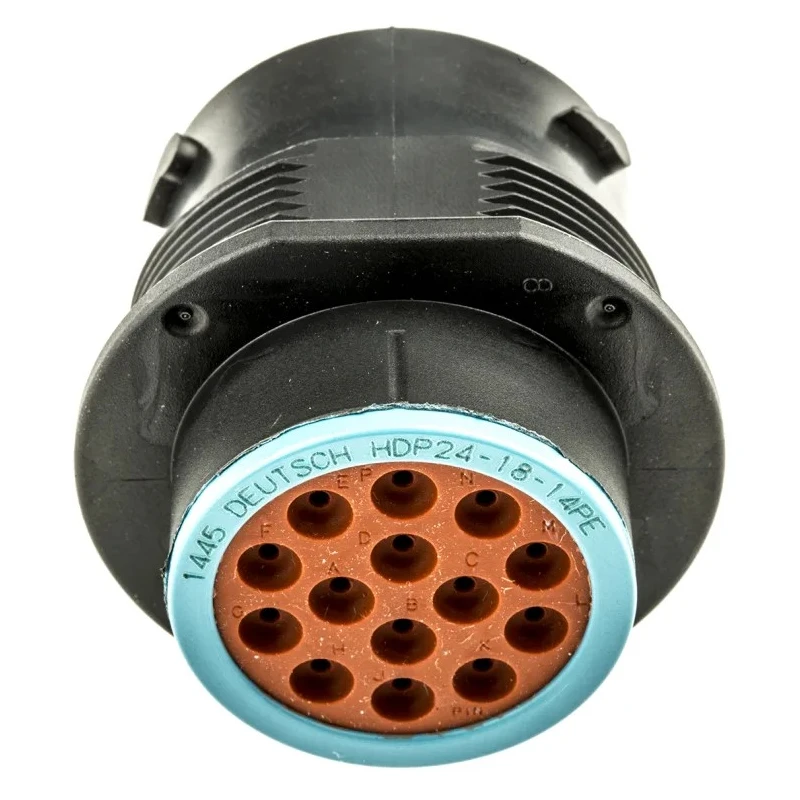

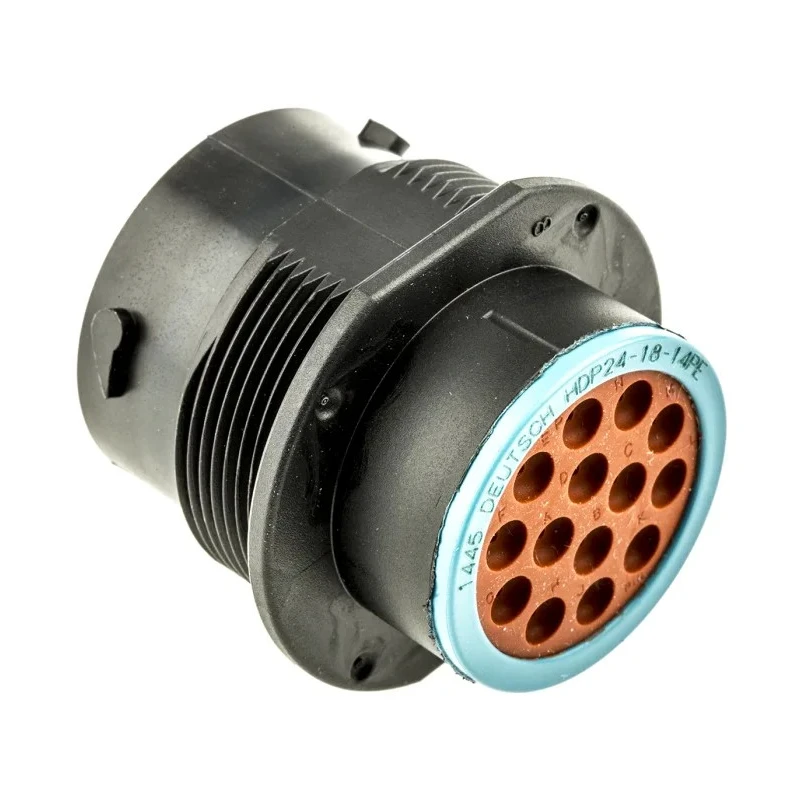

Deutsch Circular Connector 14 Contacts 1.59 mm Cable Socket Male IP67 Straight HD20 Series HDP24-18-14PE
Specifications
| Country of Origin | Mexico |
|---|---|
| Voltage | 250V |
| Brand | Deutsch |
| Orientation | Straight |
| Current | 13A |
| Model | HDP24-18-14PE |
| IP Rating | IP67 |
| Mount Type | Cable |
| Housing Material | Thermoplastic |
| Contact Material | Copper |
| Series | HD20 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Pole Format | 14 |
| Contact Plating | Nickel |
| Number of Contacts | 14 |
| Contact Gender | Male |
| Shell Size | 18 |
| Mating Type | Bayonet |
| Connector Size | 1.59 mm |
| Plug/Socket | Socket |
Key Features
- Comprises 14 contacts for versatile industrial wiring applications.
- Cable mount type allowing flexible use in a variety of environments.
- Socket connector with male contact configuration.
- Rated IP67 for reliable protection against dust and water.
- Supports up to 13A current and 250V voltage for demanding electrical systems.
- Constructed from durable thermoplastic for enhanced longevity.
- Straight orientation in a compact HD20 Series shell size 18.
- Operates reliably from -55°C to 125°C for broad thermal compatibility.
Product Description
The Deutsch HDP24-18-14PE Circular Connector is a heavy-duty industrial connector designed for complex cable harnessing and power distribution in demanding environments. With 14 contacts, this model is ideal for multipole applications requiring secure and reliable connections.
This cable-mount connector uses a socket interface and is configured with male contact gender. Its 1.59 mm contact size allows compatibility with a wide range of wire types, making installation practical and efficient.
The HDP24-18-14PE is housed in the HD20 Series shell size 18 and provides straight orientation for easy fitting within enclosures or panels. Built from corrosion-resistant thermoplastic and finished with nickel-plated copper contacts, it ensures long-term durability and resistance to harsh industrial conditions.
Rated IP67, the connector offers a high degree of environmental protection, safeguarding against dust ingress and temporary immersion in water. It is vibration-proof up to 20g at frequencies from 10 to 2000Hz and has been tested for corrosion resistance, enduring 48 hours of salt spray according to MIL STD 1344. The connector accepts crimped terminations for secure wiring, and its bayonet mating type facilitates fast, positive connections in the field.
Operating reliably in temperatures ranging from -55°C to 125°C, the Deutsch HDP24-18-14PE is suited for automotive, manufacturing, robotic, and other industrial applications where reliable multi-contact wiring is required. Its rating of 13A and 250V makes it compatible with both signal and power circuits, while the straight configuration is suitable for high-density wiring layouts.
Industrial-grade connectors are critical in applications such as machinery control panels, power distribution boxes, factory automation systems, heavy vehicles, and marine or outdoor installations. This model is a suitable choice for professionals who require robust, dependable, and easy-to-install wiring components in demanding engineering contexts.
Browse more Industrial Circular Connectors and Deutsch products in the Electronics & Electricals section on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a maximum current of 13A and a voltage of 250V, making it suitable for both signal and power circuits.
It has an IP67 rating, providing reliable protection against dust ingress and temporary immersion in water.
The connector operates reliably within a temperature range of -55°C to 125°C, allowing it to function in various environmental conditions.
This model features 14 contacts, making it suitable for multipole applications that require secure connections.
The housing is made from thermoplastic, while the contacts are copper with nickel plating for enhanced corrosion resistance.
It accepts crimped terminations, ensuring secure and reliable wiring connections.
The connector has a straight orientation and is housed in a shell size 18 within the HD20 Series.
It features a bayonet mating type, allowing for fast and positive connections in the field.
The connector is manufactured in Mexico.
It is suitable for automotive, manufacturing, robotic, and other industrial applications requiring reliable multi-contact wiring.
The contact size for this connector is 1.59 mm, allowing compatibility with a wide range of wire types.
It is vibration-proof up to 20g at frequencies from 10 to 2000Hz, ensuring reliable performance in dynamic environments.
