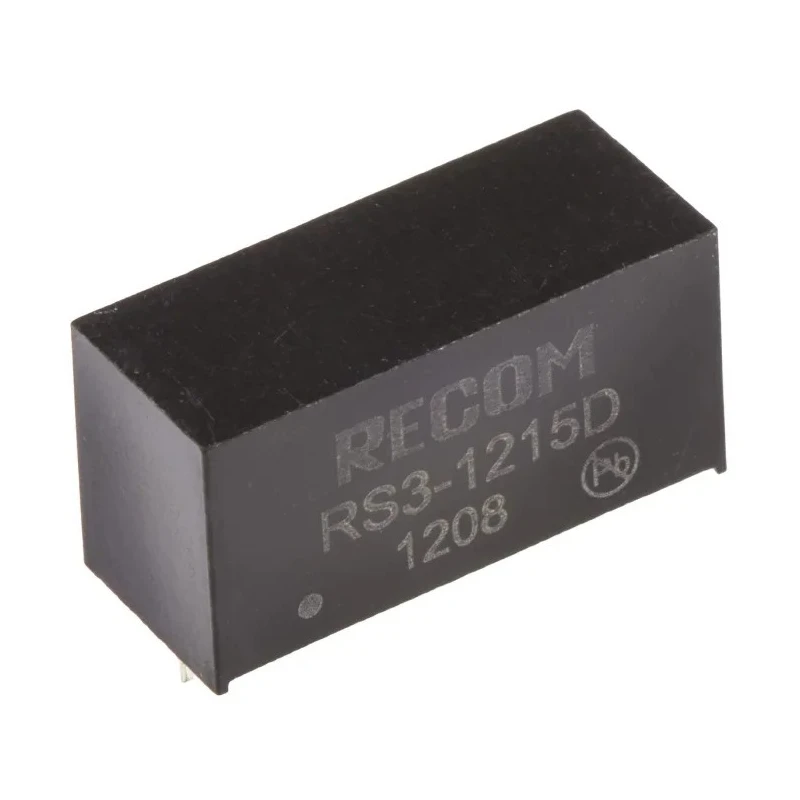

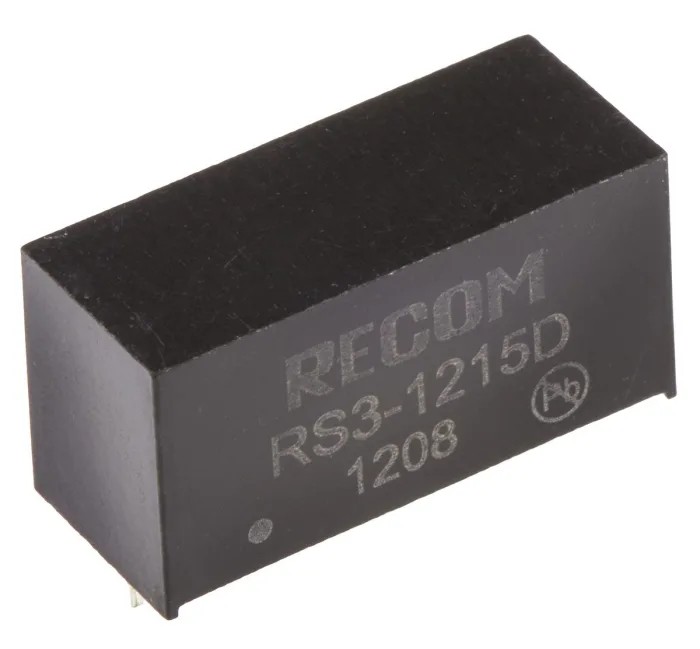

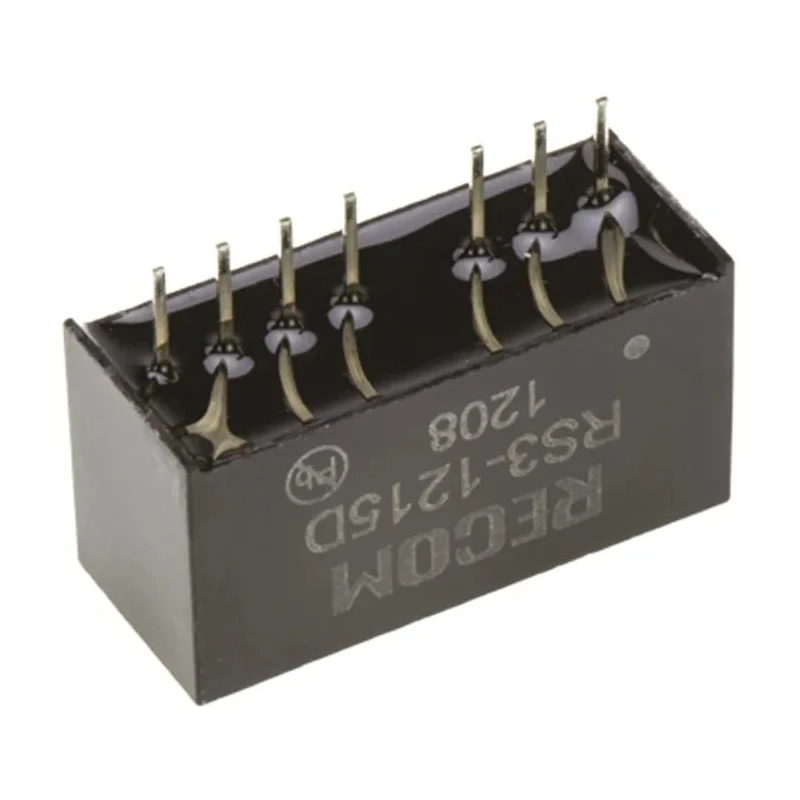

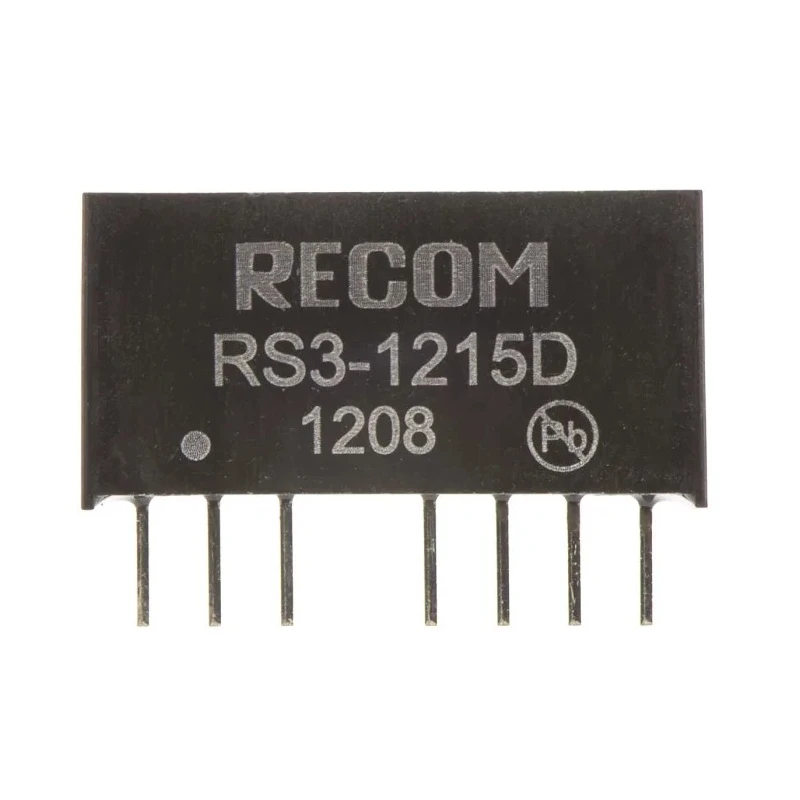

Recom RS3-1215D DC/DC Converter 15V/-15V Output, 9 - 18V Input, 3W, Through Hole, 8-Pin SIP, 85°C Max Temp
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters Recom RS3 DC/DC Converter, 15V, -15 V/, 18V Input |
| Brand | Recom |
| Efficiency | 80% |
| Length | 21.8mm |
| Model | RS3-1215D |
| Depth | 11.1mm |
| Gross Weight | 4.7g |
| Width | 9.2mm |
| Mount Type | Through Hole |
| Series | RS3 |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 745000h |
| Number of outputs | 2 |
| Ripple and Noise | 50mV Pk-Pk |
| Maximum Output Power | 3W |
| Maximum Input Voltage | 18V |
| Standards/Approvals | RoHS, UR |
| Minimum Input Voltage | 9V |
| Number of Pins | 8 |
| Output Voltage 1 | 15, -15V |
| Output Voltage Adjustment Range | 9/18 V |
| Isolation Voltage | 500V ac |
| Output Current 2 | 100mA |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- Wide input voltage range from 9V to 18V for flexible power applications.
- Dual regulated output voltages of 15V and -15V suitable for sensitive electronics.
- 3W maximum output power ensures reliable operation for embedded systems.
- Through hole SIP-8 package simplifies integration into PCB designs.
- High efficiency rated at 80% for energy-saving performance.
- Continuous short-circuit protection and remote On/Off control for robust safety.
- Operating temperature range from -40°C to 85°C offers broad environmental suitability.
Product Description
The Recom RS3-1215D DC/DC Converter is designed for demanding industrial and electronic applications requiring dual output voltages of +15V and -15V. With an input range of 9V to 18V, the converter accommodates standard power supplies or battery conditions, offering robust regulation and low ripple/noise for sensitive circuits.
This compact module delivers up to 3W of power and features a through hole SIP-8 package, making it easy to mount in PCB designs for quick prototyping or volume manufacturing. The device achieves up to 80% efficiency, reducing both heat generation and energy consumption in continuous operation. Its advanced design includes input/output isolation rated at 500V AC and supports a wide array of commercial, laboratory, measurement and industrial electronics applications.
The RS3-1215D offers continuous short-circuit protection and remote On/Off control for reliability and ease of integration into automated systems. It adheres to RoHS and UL94V-0 safety standards, allowing for use in regulated environments. The converter maintains stable operation from -40°C to +85°C, suitable for laboratories, field instrumentation, industrial control panels and embedded systems operating in harsh conditions.

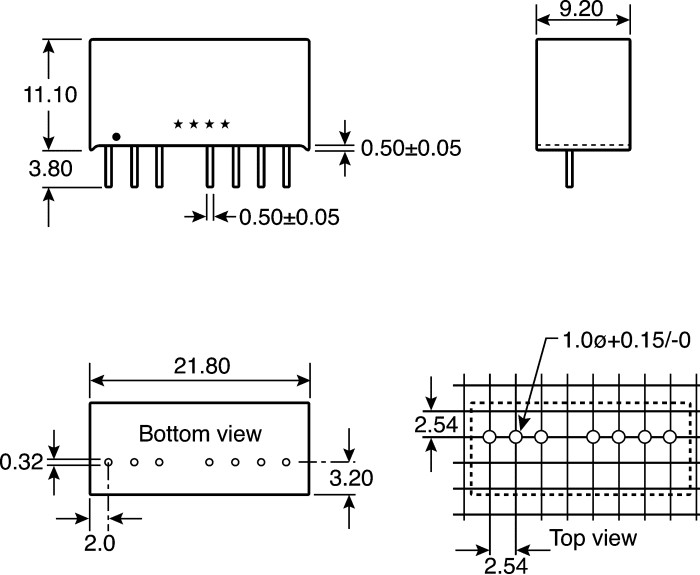

Physical specifications include 21.8mm length, 9.2mm width, and 11.1mm depth, with a total weight of 4.7g. The SIP-8 form factor and dual outputs make this unit a prime choice for designers requiring isolated power rails and compact installation footprint.
The RS3 Series converters are suitable for industrial automation equipment, test instruments, and precision measurement devices, as well as manufacturing, commercial, and laboratory applications that require reliable regulated DC power with isolation.
Explore more DC-DC Converters and Recom products in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is from 9V to 18V.
It provides dual regulated output voltages of +15V and -15V.
The maximum output power of this unit is 3W.
This model has an efficiency rating of 80%.
It operates within a temperature range of -40°C to 85°C.
It comes in a through hole SIP-8 package type.
The dimensions are 21.8mm in length, 9.2mm in width, and 11.1mm in depth.
The isolation voltage is rated at 500V AC.
It adheres to RoHS and UL94V-0 safety standards.
The ripple and noise specification is 50mV peak-to-peak.
This converter has two outputs.
The total weight of this unit is 4.7g.
