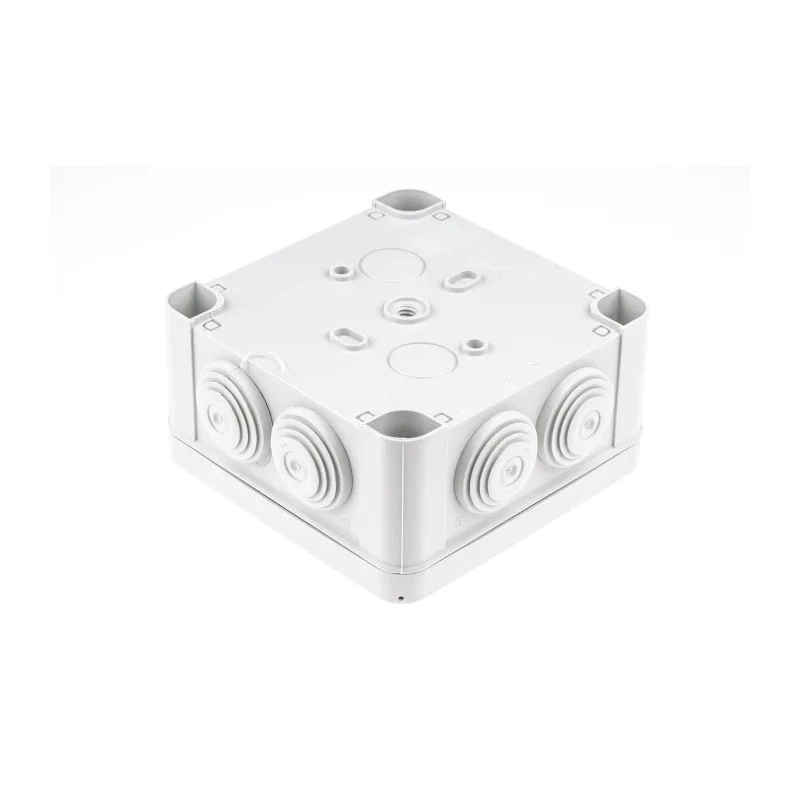

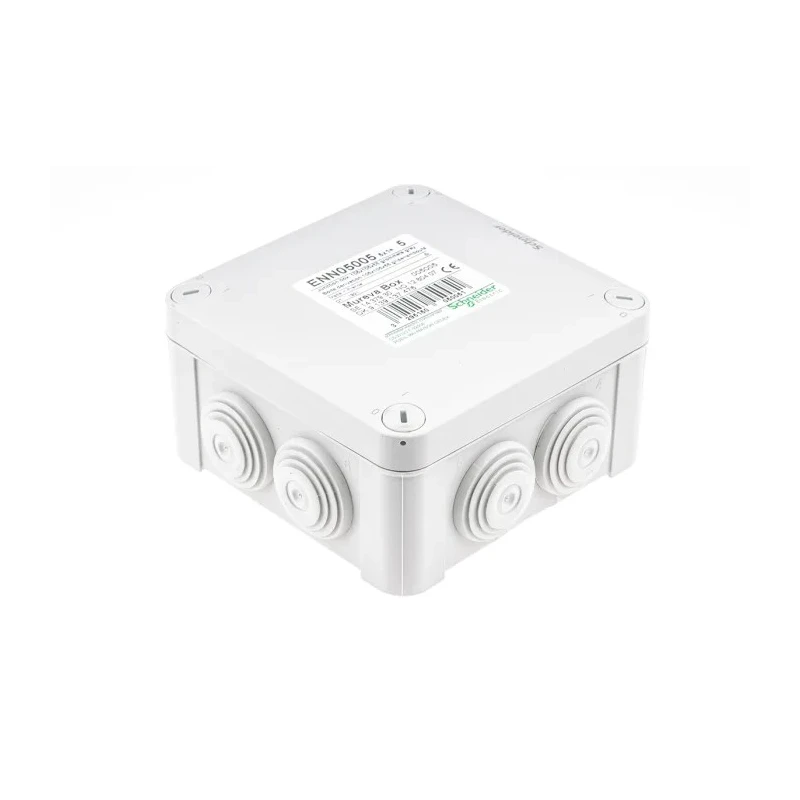

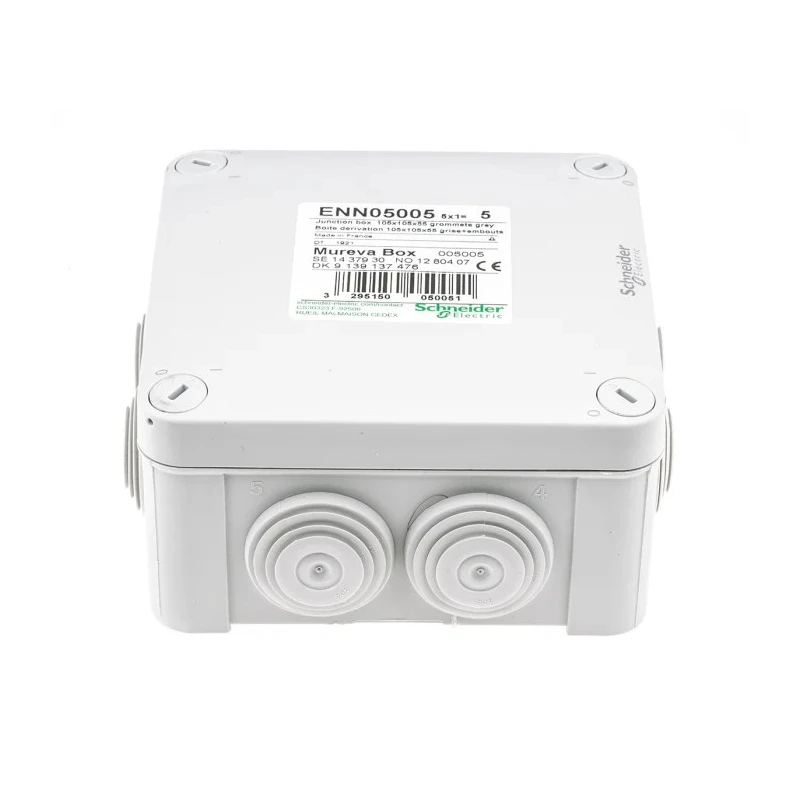

Schneider Electric Mureva Series Polypropylene Junction Box, IP55, 105 × 105 × 55 mm, Grey ENN05005
Specifications
| Country of Origin | self-extinguishing halogen-free plastics |
|---|---|
| Range | Mureva |
| Diameter | 20mm |
| Brand | Schneider Electric |
| Material | Polypropylene |
| Colour | Grey |
| Height | 105mm |
| Model | ENN05005 |
| IP Rating | IP55 |
| Number Of Ways | 7 |
| Width | 105mm |
| Series | Mureva |
| Impact Resistance | IK07 |
| Insulation Class | Class II |
| Standards/Approvals | RoHS |
| Sarel Grey Junction Box, 105 x 55 x 105mmBrand | Sarel |
| Dual N+p Channel Mosfet TransistorBrand | Sarel |
| Lid Fixing | Clip-in or 1/4 turn |
Key Features
- IP55 rated enclosure provides robust protection against dust and water.
- Strong polypropylene construction ensures long service life in harsh environments.
- Wide operating temperature range from -25°C to +40°C allows indoor and outdoor use.
- Seven entry ways with 20 mm diameter accommodate multiple cable connections.
- SBS grommet and EVA membrane glands offer secure cable management.
- Impact resistance rated to IK07 enhances mechanical durability.
- Electrical insulation Class II according to IEC 536 for added safety.
- Clip-in or quarter-turn lid design for easy installation and maintenance.
Product Description
The Schneider Electric ENN05005 Mureva Series Polypropylene Junction Box is an industrial-grade enclosure engineered for versatile electrical junction protection. With an IP55 protection rating, this box shields wiring circuits and electrical connections from water jets, dust, and potential environmental damage, making it suited for challenging installation environments in commercial, industrial, and construction settings.
Designed from rugged, self-extinguishing, halogen-free polypropylene, this junction box is both lightweight and highly durable, supporting safe use in demanding conditions. Its body and lid are constructed to resist impacts to IK07 standard and maintain excellent insulation, conforming to Class II protection according to IEC norms. The box is presented in a modern light grey (RAL 7035) finish, ensuring unobtrusive integration into contemporary electrical installations.
The box features an SBS (styrene butadiene styrene) grommet and EVA stepped membrane cable/conduit entry glands, providing efficient cable management and secure entry points while maintaining ingress protection. The enclosure includes seven ways for entry cables, each with a 20 mm diameter, accommodating a broad range of cable types and facilitating multiple circuit connections in one compact unit. A reliable clip-in or quarter-turn lid system ensures quick and secure access for wiring or inspection, and included lid screws with an instruction sheet further simplify installation.
Operating reliably within a temperature range of -25°C to +40°C, the Mureva junction box can be used in both indoor and outdoor applications, including extensions to circuits, lighting point additions, and repairs. It does not include terminals, allowing users flexibility to select connecting hardware according to their specific needs. Electrical engineers and technicians will appreciate its ability to safeguard connections from accidental contact and environmental hazards while remaining maintenance-friendly.
Compliant with RoHS, EN 60670 by TÜV, IP55 (IEC 60529), IK07 (EN 50102), and CE standards, this product meets stringent safety and environmental requirements. Its insulation, water/impact resistance, and compact construction make it ideal for projects in construction sites, commercial facilities, manufacturing plants, and building maintenance where reliability and compliance are essential.
This junction box is part of the Schneider Electric Mureva Series, known for high-quality enclosures for professional applications. Explore more industrial-grade junction boxes and electrical enclosures from Schneider Electric in the Junction Box category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The junction box has an IP55 rating, providing protection against dust and water jets.
This model measures 105 mm in height, 105 mm in width, and 55 mm in depth.
It features seven entry ways, each with a diameter of 20 mm, allowing for multiple cable connections.
The enclosure is constructed from polypropylene, which is self-extinguishing and halogen-free.
It operates reliably within a temperature range of -25°C to +40°C, suitable for both indoor and outdoor use.
The impact resistance is rated to IK07, enhancing its mechanical durability.
It features a clip-in or quarter-turn lid design for easy installation and maintenance.
Yes, it is compliant with RoHS, EN 60670 by TÜV, IP55 (IEC 60529), IK07 (EN 50102), and CE standards.
It conforms to Class II insulation according to IEC 536, providing added safety.
The junction box includes an SBS grommet and EVA membrane glands for secure cable management and entry.
