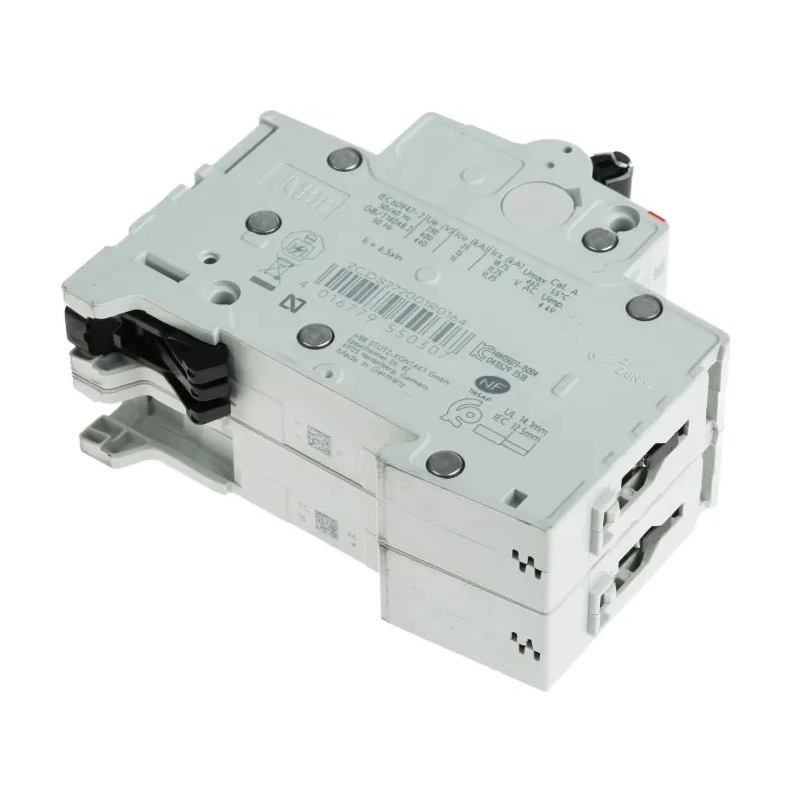

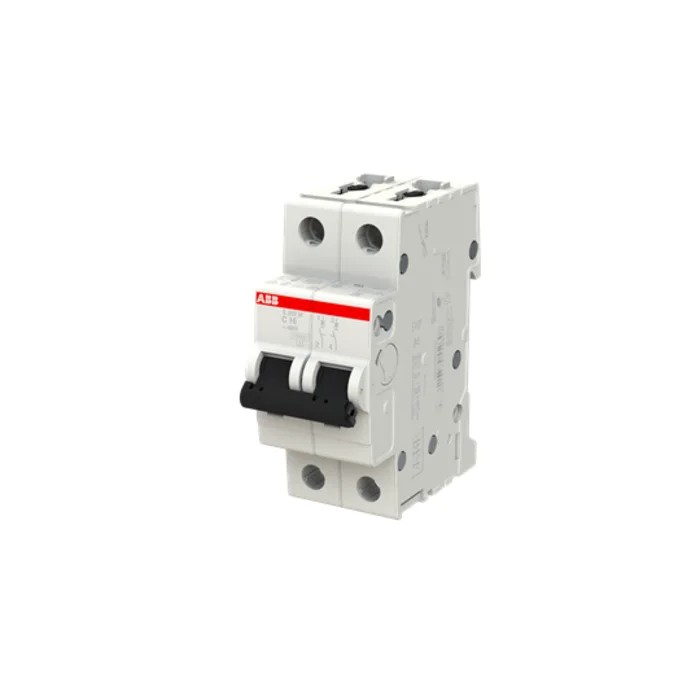

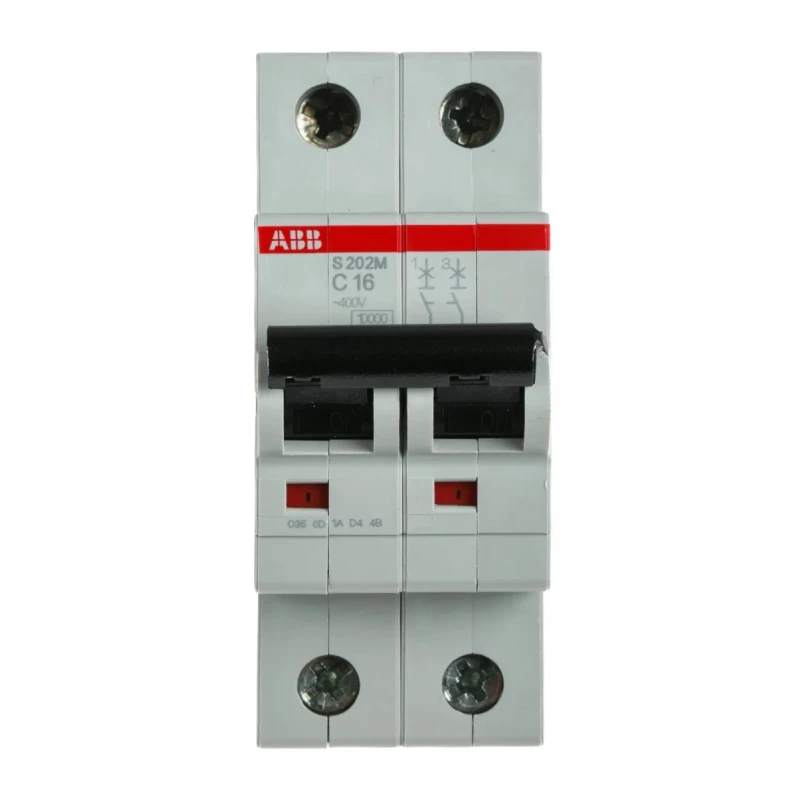

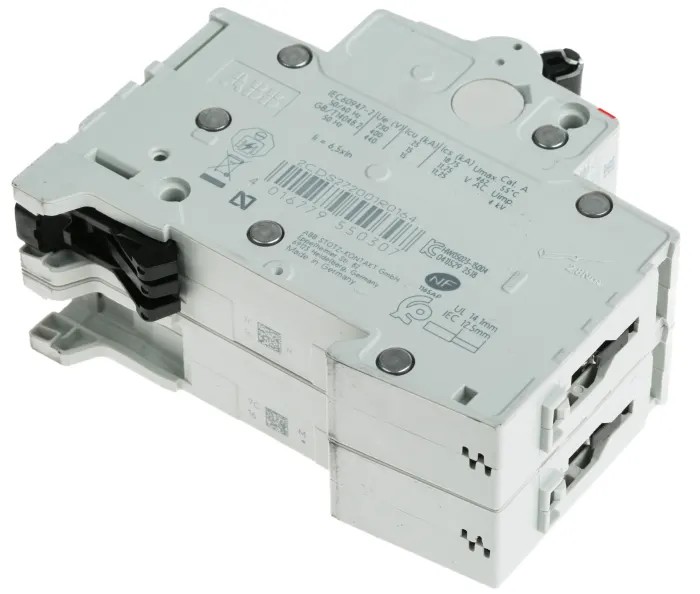

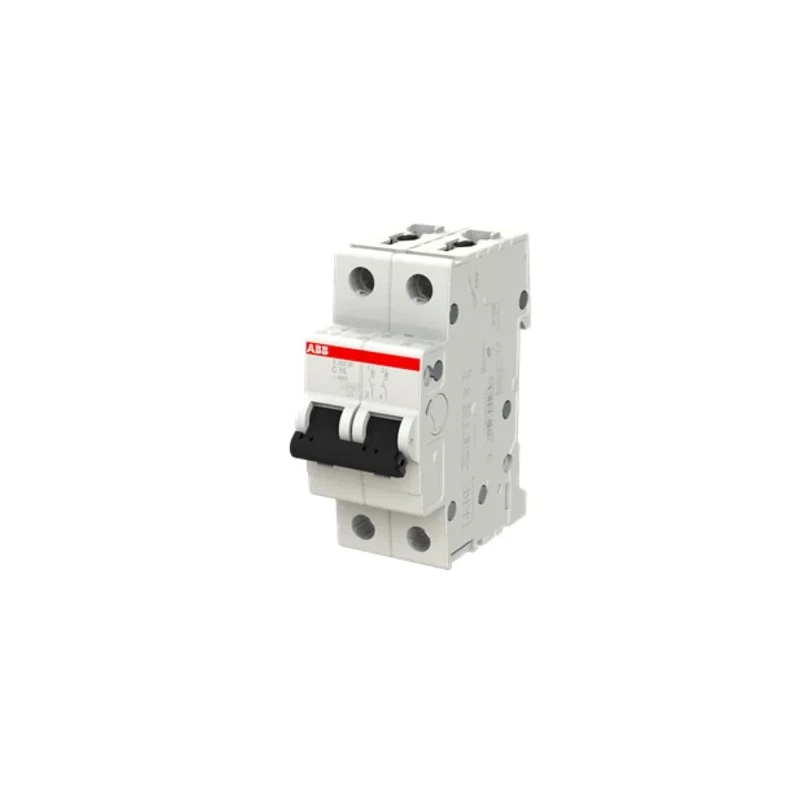

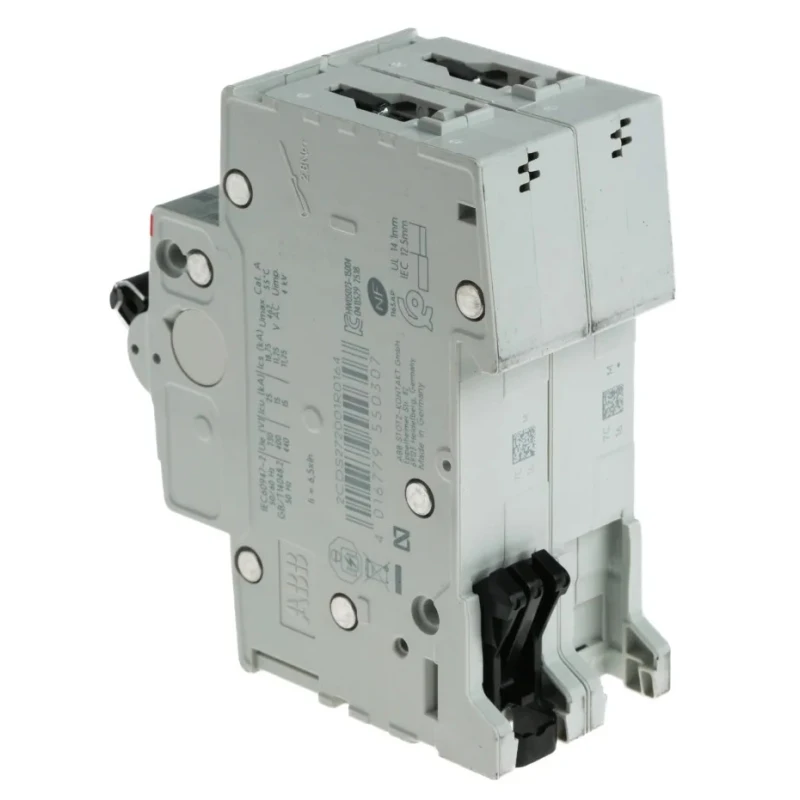

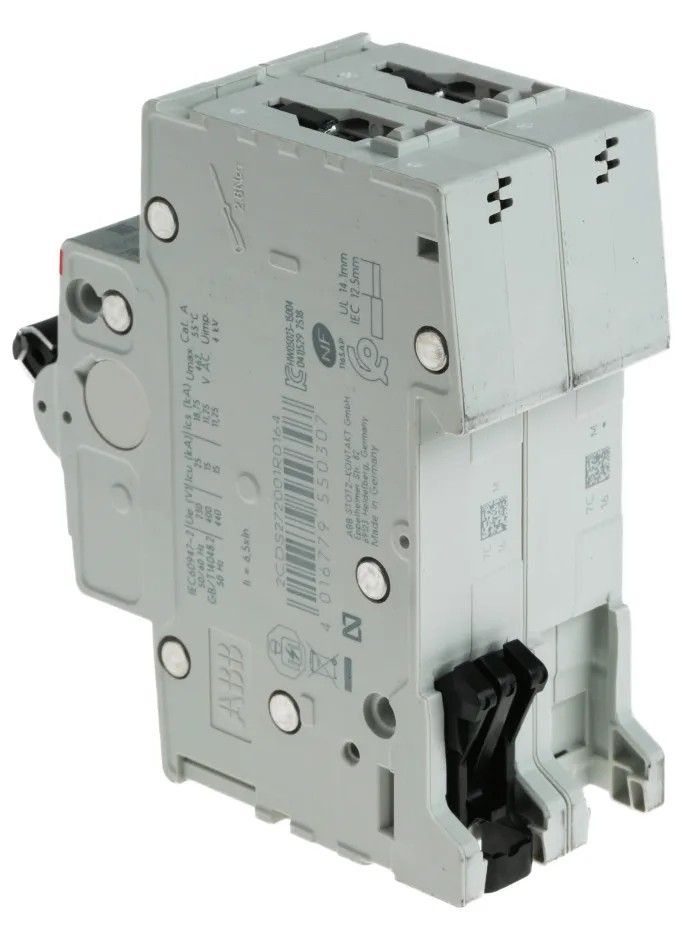

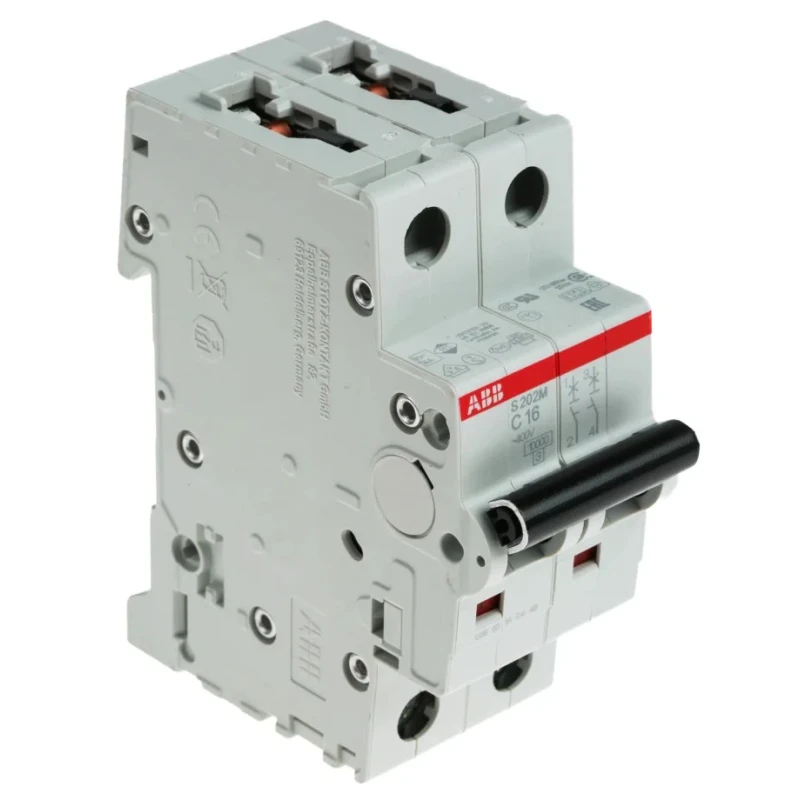

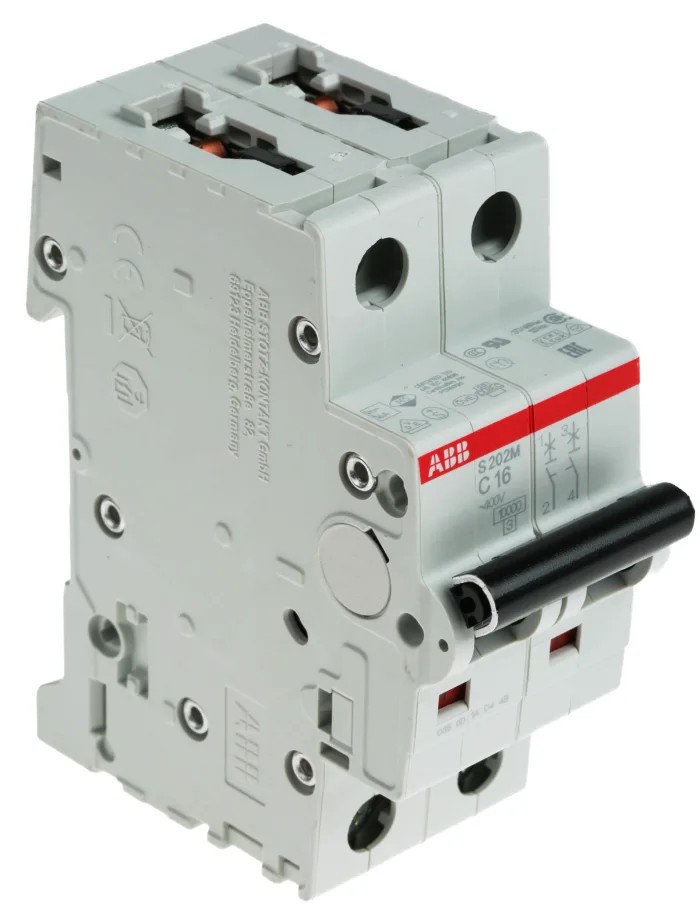

ABB System Pro M Compact S200M Miniature Circuit Breaker 2-Pole 16A Type C 440V AC 125V DC 10 kA 2CDS272001R0164 S202M-C16

ABB 2CDS272001R0164 S202M-C16 Miniature Circuit Breaker is a high-performance circuit protection device engineered for demanding industrial and commercial environments requiring reliable control and safety. With a 2-pole configuration and 16A rating, this MCB (Miniature Circuit Breaker) is capable of protecting equipment across both 440V AC and 125V DC installations. It features a type C tripping curve, making it suitable for circuits with moderate inrush currents and typical industrial applications.

The S200M series incorporates a thermomagnetic mechanism, ensuring precise response to overcurrent and short circuit incidents. Its 10 kA breaking capacity provides robust safety against severe fault conditions, while the impulse withstand voltage rating of 4kV guards against sudden surges and electrical transients. The circuit breaker is housed in high-grade thermoplastic for enhanced impact protection and efficient electrical insulation, minimizing risks during operation and installation.

Mounted via DIN rail for tool-free and rapid installation, this MCB integrates easily into standard switchboards and control panels. Cage-type terminals allow secure and straightforward busbar and cable connections, promoting flexibility across a wide range of wiring scenarios. The device is equipped with green and red indicator windows on the housing, ensuring visual clarity of ON/OFF status for operational safety.

Application fields include electric motor circuits, fluorescent lighting loads, and other commercial or industrial setups requiring versatile and dependable low-voltage protection. The product is designed for disassembly, supporting sustainability objectives and maintenance efficiency. IP ratings of IP20 and IP40 ensure the breaker is safeguarded against dust and incidental contact, while compliance with IEC/EN 60898-1 and IEC/EN 60947-2 standards guarantees both performance and reliability.

Dimensions are compact (35mm width, 76mm depth, and 111mm height), allowing installation where space is limited. The impulse withstand voltage of 4kV and thermomagnetic tripping characteristics ensure safe operation under a variety of electrical conditions. The ABB S200M Miniature Circuit Breaker is ideal for industrial, commercial, HVAC, automation, and control panel applications, contributing to plant safety and operational robustness.

Compact DIN rail circuit breaker for 2-pole electrical protection with 16A rating. Type C tripping and thermomagnetic mechanism handle moderate inrush currents. Impulse withstand voltage of 4kV protects against electrical surges.

Quick and secure cage terminal wiring with busbar compatibility. ON/OFF indicator windows enable rapid status assessment. Robust thermoplastic housing enhances durability and user safety. Conforms to IEC/EN standards for technical approval in industrial installations.

Ideal for protecting electric motors, lighting, and sensitive equipment. Browse more ABB circuit protection solutions and Miniature Circuit Breakers in Electronics & Electricals at EnvMart.
