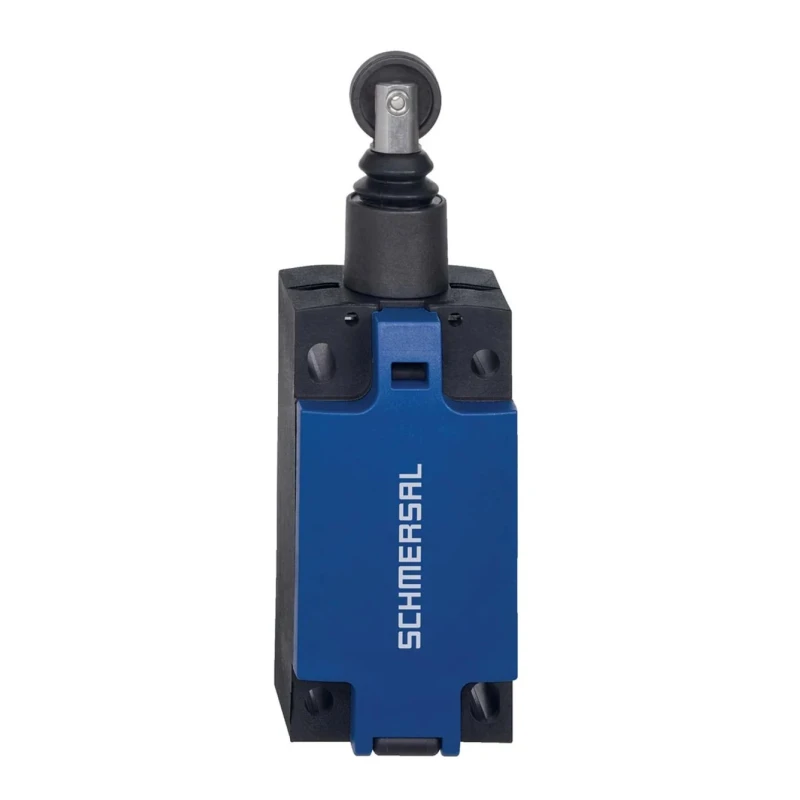

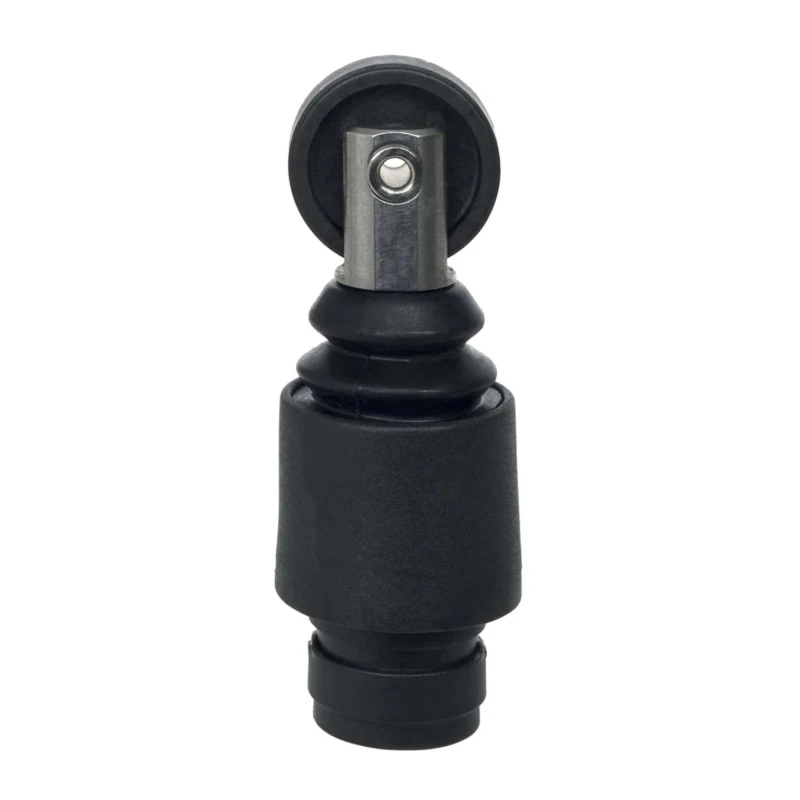

Schmersal PS316 Series Roller Plunger Limit Switch 1 NO/2 NC IP67 IP66 Fibreglass Reinforced Thermoplastic 103015134
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Schmersal |
| Length | 37mm |
| IP Rating | IP67, IP66 |
| Width | 41mm |
| Housing Material | Fibreglass Reinforced Thermoplastic |
| Protection Class | IP66, IP67 |
| Standards | ISO 13849-1 |
| Series | PS316 |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | 1 NO/2 NC |
| Actuator Type | Roller Plunger |
| Contact Type | Silver |
| Minimum Operating Temperature | -30°C |
| Switching Current | 15.3A |
| Terminal type | Screw |
| Hazardous Area Certification | CCC, cULus, EAC |
| Mechanical Life | 10000000Operations |
| Switching DC Voltage | 24V dc |
| Switching AC Voltage | 240V ac |
| Conduit Entry | 1 x M20 x 1.5 |
| Mechanical life, minimum | 10,000,000 Operations |
| B10d Normally-closed contact (NC) | 20,000,000 Operations |
Key Features
- Industrial grade roller plunger limit switch for reliable mechanical position detection.
- Features 1 normally open and 2 normally closed contacts for versatile circuit integration.
- High protection class IP67 and IP66 ensures suitability for demanding environments.
- Fibreglass reinforced thermoplastic housing delivers durability and insulation.
- Handles switching AC voltage up to 240V and DC voltage up to 24V safely.
- Maximum switching current rated at 15.3A for robust load handling.
- Mechanical life rated at 10 million operations for extended usage cycles.
- Silver contact material improves conductivity and switching reliability.
Product Description
The Schmersal PS316 Series Roller Plunger Limit Switch, model 103015134, offers precise mechanical position sensing with a roller plunger actuator designed for industrial automation and safety applications. Integrating 1 normally open (NO) and 2 normally closed (NC) contacts, this switch provides flexible control options for machinery and equipment.
Constructed with a fibreglass reinforced thermoplastic housing, the product balances excellent durability, electrical insulation, and resistance to harsh environmental conditions. The high ingress protection ratings of IP67 and IP66 allow for operation in areas exposed to dust and water, making it suitable for machine tools, conveyor systems, packaging equipment, and safety interlocks in manufacturing, automotive, and materials processing industries.
Electrical compatibility includes a switching AC voltage of up to 240V and DC voltage up to 24V, with a rated maximum switching current of 15.3A. The device is configured for screw terminal connections, facilitating straightforward installation and field maintenance. High quality silver contacts ensure efficient conductivity and reliable switching performance over time.
Operational performance is enhanced by a mechanical life rated at 10,000,000 operations, supporting frequent actuation cycles in heavy-duty industrial settings. The switch operates reliably under ambient temperatures ranging from -30°C up to 80°C. Additional certifications such as ISO 13849-1 and IEC 60947-5-1 underline its adherence to internationally recognized safety standards.
Industrial use cases include position sensors, interlocks, end-of-travel limiters, machine safety circuits, and process automation, offering robust performance where mechanical actuation and environmental resistance are critical.
Browse more limit switch solutions within the Schmersal PS316 Series and explore EnvMart’s industrial automation and safety categories for comprehensive control device selections.
Explore more products in our Limit Switches category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a contact configuration of 1 normally open (NO) and 2 normally closed (NC) contacts, allowing for versatile circuit integration.
The maximum switching current rated for this limit switch is 15.3A, enabling it to handle robust load requirements.
It has high ingress protection ratings of IP67 and IP66, making it suitable for operation in dusty and wet environments.
The mechanical life of this switch is rated at 10 million operations, supporting frequent actuation cycles in industrial settings.
This unit operates reliably within an ambient temperature range of -30°C to 80°C, accommodating various environmental conditions.
The housing is constructed from fibreglass reinforced thermoplastic, providing durability and electrical insulation.
It can safely switch AC voltage up to 240V and DC voltage up to 24V, making it compatible with various electrical systems.
This model utilizes a roller plunger actuator, designed for precise mechanical position sensing in automation applications.
It is configured for screw terminal connections, facilitating straightforward installation and maintenance in the field.
This unit is certified under ISO 13849-1 and has hazardous area certifications including CCC, cULus, and EAC, ensuring compliance with safety standards.
The dimensions of this model are 37mm in length and 41mm in width, making it compact for various installations.
It is suitable for use in position sensors, interlocks, end-of-travel limiters, and machine safety circuits within industrial automation.
