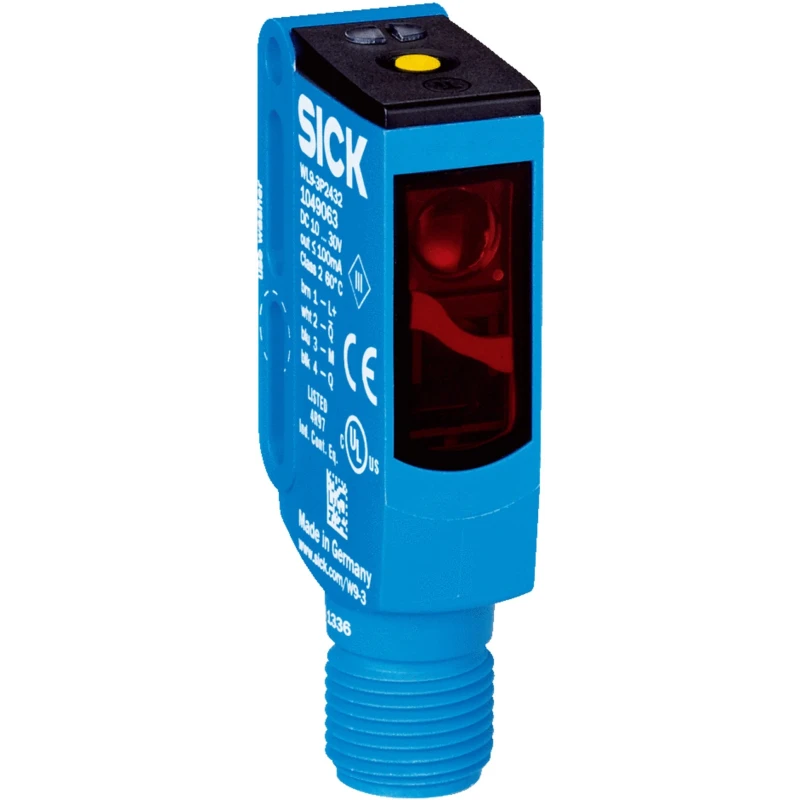

SICK Retroreflective Photoelectric Sensor Block Style 400 mm NPN Output IP66 IP67 IP69K WL9-3N2462
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | SICK |
| Response time | 500μs |
| Light Source | LED |
| Connections | M8 and M12 male connector, cable as well as cable with male connector |
| Detection range | 400 mm |
| Model | WL9-3N2462 |
| IP Rating | IP66, IP67, IP69K |
| Housing Material | Plastic |
| Output type | NPN |
| Series | W9 |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Maximum Current | 100mA |
| DetectIon Type | Retroreflective |
| Terminal type | 4-Pin Connector |
| Interface Type | 4-Pin, M12 Connector |
| Maximum dc Voltage | 30V dc |
| Hazardous Area Certification | EN IEC 63000 |
| Standards/Approvals | UL File No. NRKH.E181493 |
| Sensor Style | Block |
Key Features
- Offers precise retroreflective object detection up to 400 mm range.
- Block style sensor suitable for versatile industrial and automation applications.
- NPN output and 4-pin M12 connector provide reliable electrical interface.
- Rugged plastic housing resists mechanical and environmental stress.
- Rated IP66, IP67, and IP69K for superior water and dust protection.
- Wide operating temperature from -40°C to 60°C ensures reliable performance.
- LED light source provides highly visible and stable alignment.
- Fast response time of 500 μs for automated processes.
Product Description
The SICK WL9-3N2462 Retroreflective Photoelectric Sensor is a precision block-style sensor designed for demanding industrial automation environments. With a detection range of up to 400 mm, it reliably senses objects using retroreflective detection techniques, making it highly effective for presence, edge, and position monitoring even of shiny or transparent objects.
This sensor features an NPN output and a 4-pin M12 connector interface, enabling simple integration into electronic control systems. The robust plastic housing provides mechanical durability and is engineered for resistance to external impacts and environmental influences.
Certified to IP66, IP67, and IP69K, the sensor is impervious to water, dust, and high-pressure cleaning, supporting use in harsh and wash-down production facilities. Its broad operating temperature range of -40°C to 60°C ensures stable performance across varied environments.
Equipped with a LED light source, the sensor delivers a highly visible light spot that simplifies optical alignment and enhances detection reliability. With a fast response time of 500 μs, it is suitable for high-speed automation and counting processes.
The WL9-3N2462 is compatible with M8 and M12 connector types and offers flexible installation with both cable and connector options. UL File NRKH.E181493 and EN IEC 63000 safety approvals make it compliant for global industrial settings.
Typical applications include transport of transparent and packaged objects, paper stack height measurement, sheet presence monitoring, tool monitoring, fiber or wafer edge detection, and presence verification during bagging operations. The rugged VISTAL housing and advanced SIRIC technology suppress optical and electromagnetic interference, minimizing machine downtime and ensuring reliable long-term use.
This sensor is ideal for use in industrial automation, packaging lines, material handling, manufacturing, and commercial facilities requiring robust detection in challenging environments.
Discover other SICK sensors and photoelectric solutions on EnvMart to optimize industrial sensing and automation tasks.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The detection range of this model is up to 400 mm, allowing for effective retroreflective object detection.
It features an NPN output, which is suitable for various industrial applications requiring this type of signal.
This sensor is rated IP66, IP67, and IP69K, providing superior protection against dust and water ingress.
The response time of the WL9-3N2462 is 500 μs, making it suitable for high-speed automation processes.
It operates effectively within a temperature range of -40°C to 60°C, ensuring reliable performance in various environments.
This unit uses a 4-pin M12 connector interface, which allows for easy integration into electronic control systems.
The housing is made from plastic, designed to resist mechanical and environmental stress.
Yes, it is certified under UL File No. NRKH.E181493 and complies with EN IEC 63000 standards.
It utilizes an LED light source, which provides a highly visible and stable alignment for detection purposes.
Typical applications include monitoring the transport of transparent and packaged objects, paper stack height measurement, and tool monitoring.
The maximum current rating for the WL9-3N2462 is 100 mA, suitable for its operational requirements.
Yes, it has been certified for use in hazardous areas according to EN IEC 63000 standards, making it suitable for global industrial settings.
