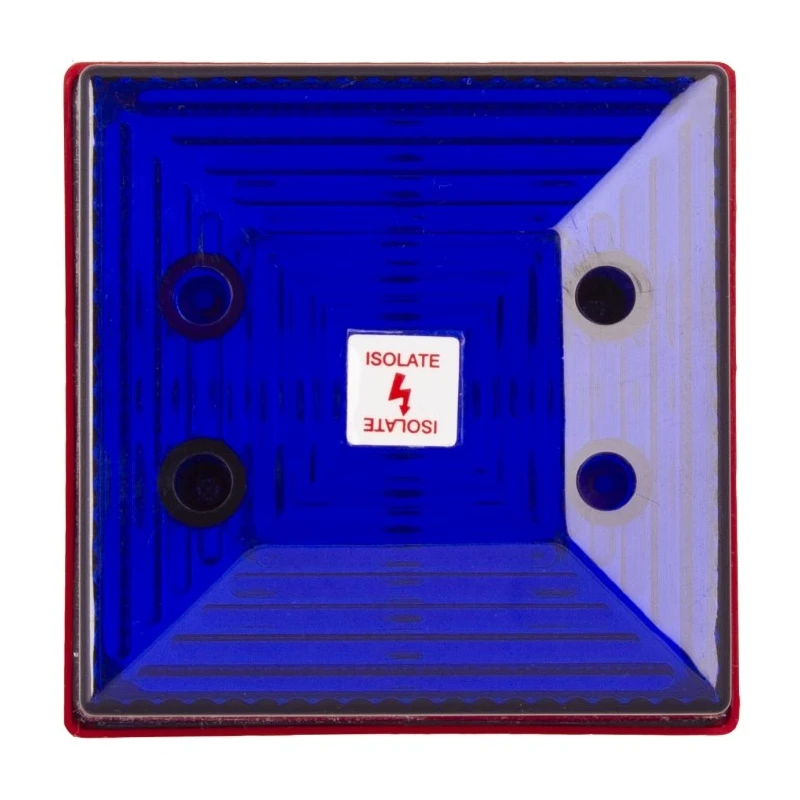

Clifford & Snell SD40 Series Blue Beacon 28.5V DC Steady LED IP65 Bulkhead/Wall Mount

The Clifford & Snell SD40/D00/B/12 is a robust industrial blue beacon designed to provide a steady visual warning or alert signal in demanding applications. Utilizing an efficient LED light source, this beacon offers high-intensity output that is easily perceived even in brightly lit spaces or challenging industrial environments.

This model operates on a 28.5V DC supply, making it suitable for integration with standard control systems and industrial machinery. Its compact housing is constructed from flame-retardant ABS plastic (UL94 5VB), ensuring resilience against impact, vibration, and exposure to harsh settings commonly encountered in mining, manufacturing, or processing plants.

The blue lens is fabricated from UV-stable polycarbonate, which resists degradation from continuous sunlight exposure and maintains clarity over extended outdoor service. A lightweight profile of only 0.107kg supports easy installation with minimal physical load on mounting points. The design features a built-in base for rapid conduit, bulkhead or wall mounting, enabling versatile placement on machinery, control panels, or facility walls for maximum coverage.

The beacon’s IP65 protection rating guarantees dust-tightness and security against water jets from any angle, supporting reliable operation in both indoor and outdoor locations. The steady mode ensures an unblinking signal for continuous warning, well-suited for processes that require consistent visual indication rather than flashing patterns.

Engineered for a wide temperature tolerance from -20°C up to 70°C, the SD40/D00/B/12 remains functional in cold storage areas, hot factory floors, or exposed mining sites. Low current draw at 34mA keeps energy use efficient, while built-in LED technology minimizes the need for lamp replacement.

This type of beacon is ideal for safety and process notification applications including factory floors, automated production lines, control rooms, equipment status indicators, and mining environments. It helps communicate system states, hazards, or operational conditions visually, aiding compliance with workplace safety protocols and industrial signalling standards.

Key use cases include industrial automation, control panels, machinery status notification, process industry warning systems, warehouse and logistics signaling, mining site safety alerts, and more.

Browse additional models and accessories in the Clifford & Snell SD40 beacon range in the Automation Signalling Beacon category on EnvMart.
