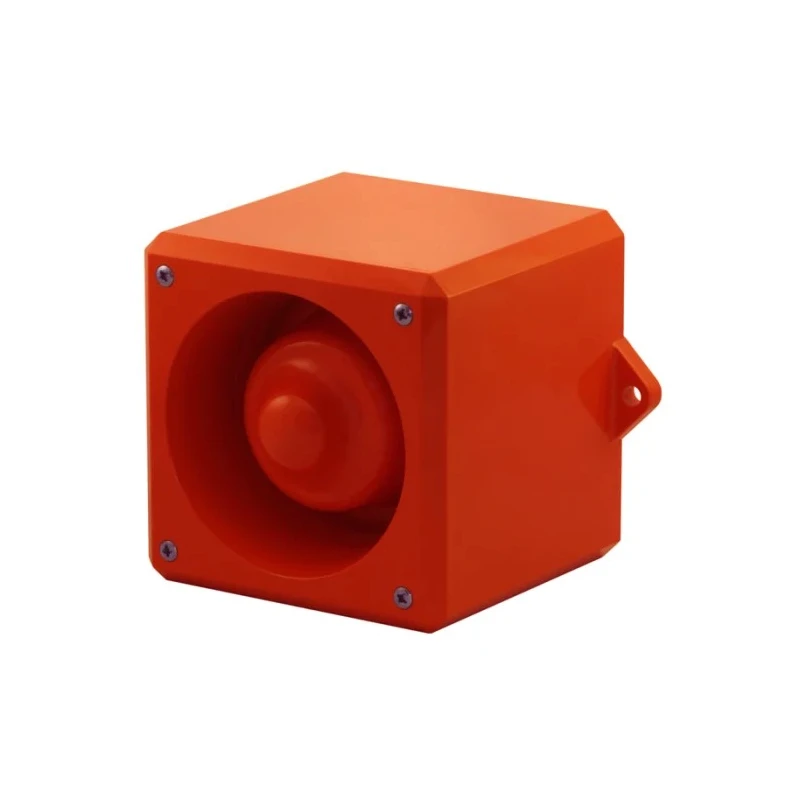

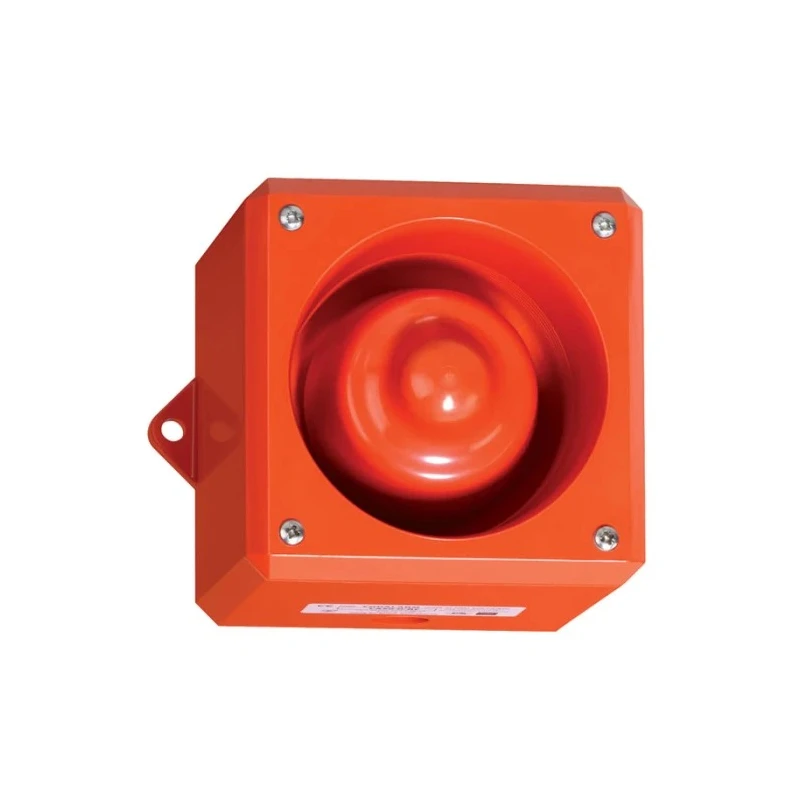

Clifford & Snell 32-Tone Red Electronic Sounder Wall IP65 105dB 26.4V DC YO5/ISC/T4

Free Delivery in India | Lowest Global Shipping Charges

Clifford & Snell 32-Tone Red Electronic Sounder Wall IP65 105dB 26.4V DC YO5/ISC/T4

Name: Clifford & Snell 32-Tone Red Electronic Sounder Wall IP65 105dB 26.4V DC YO5/ISC/T4
Brand: Clifford & Snell
SKU: 162449
Price: 388.58 USD
Availability: InStock



Category Electronic Sounder Brand Clifford & Snell Condition New

Specifications

Country of Origin	United Kingdom
Diameter	153mm
Brand	Clifford & Snell
Model	YO5/ISC/T4
IP Rating	IP65
Mount Type	Wall
Housing Material	ABS FR UL95 5VB
Series	YO5IS
Maximum Operating Temperature	40°C
Current Type	DC
Current consumption	28mA
Minimum Operating Temperature	-25°C
Terminal type	Cable
Hazardous Area Certification	ATEX
Standards/Approvals	RoHS, CE, UKCA
Maximum Supply Voltage	26.4V
Housing Colour	Red
Tone Type	Selectable
Minimum Sound Level	103dB
Sound Level at 1m	105dB
Maximum Sound Level	105dB
Number of Tones	32
Base Length	153mm
Base Width	127mm

Key Features

This electronic sounder has a robust ABS FR UL95 5VB red housing designed for hazardous environments.
It features IP65 ingress protection, safeguarding against dust and low-pressure water jets.
The device operates reliably within a temperature range of -25°C to +40°C.
The sounder has a diameter and base length of 153mm, suitable for wall mounting.
It complies with RoHS, CE, UKCA standards and is ATEX certified for explosion hazardous areas.
The current consumption is low at 28mA, ensuring efficient power usage.
Its selectable 32-tone type offers versatile signaling options for industrial alarms.
The unit includes cable terminal connections for secure wiring.

Product Description

Clifford & Snell YO5/ISC/T4 electronic sounder is a wall-mounted signaling device with a high sound output of 105dB measured at 1 meter, operating at 26.4V DC. It features 32 selectable tones, making it adaptable for various alarm and warning scenarios in hazardous environments. This sounder is engineered with an ABS FR UL95 5VB rated red housing to ensure strong mechanical durability and fire resistance.

Its IP65 rating ensures protection from dust ingress and low-pressure water jets, suitable for demanding industrial applications. The sounder can operate in temperature conditions ranging from -25°C to 40°C, offering reliability under harsh environmental conditions.

Measuring 153mm in diameter and base length, and 127mm in base width, this device is designed for straightforward wall mounting with fixing lugs for secure installation. The low current consumption of 28mA makes it energy-efficient in continuous operation.

This model carries certifications including RoHS, CE, UKCA, and is ATEX rated for use in atmospheres with explosive hazards, underlining its suitability for critical safety systems. It is commonly deployed in production lines and assembly areas requiring audible warnings and fire alarm system integrations.

This sounder provides 32 tones that can be selected to customize alarm signals. The robust ABS housing meets stringent flame retardant standards (UL94-5VB), stopping burning within 60 seconds in fire situations. Its IP65 protection safeguards internal components from dust and moisture ingress.

Certified ATEX rating enables safe use in potentially explosive environments. Designed to operate over a broad temperature range from -25°C to +40°C. Simple wall or bulkhead mounting using side lugs for secure attachment.

Compliance with international standards RoHS, CE, and UKCA ensures quality and safety. Power consumption is low at 28mA for efficient operation. The product originates from the United Kingdom, reflecting high manufacturing standards.
